Brazing Tail

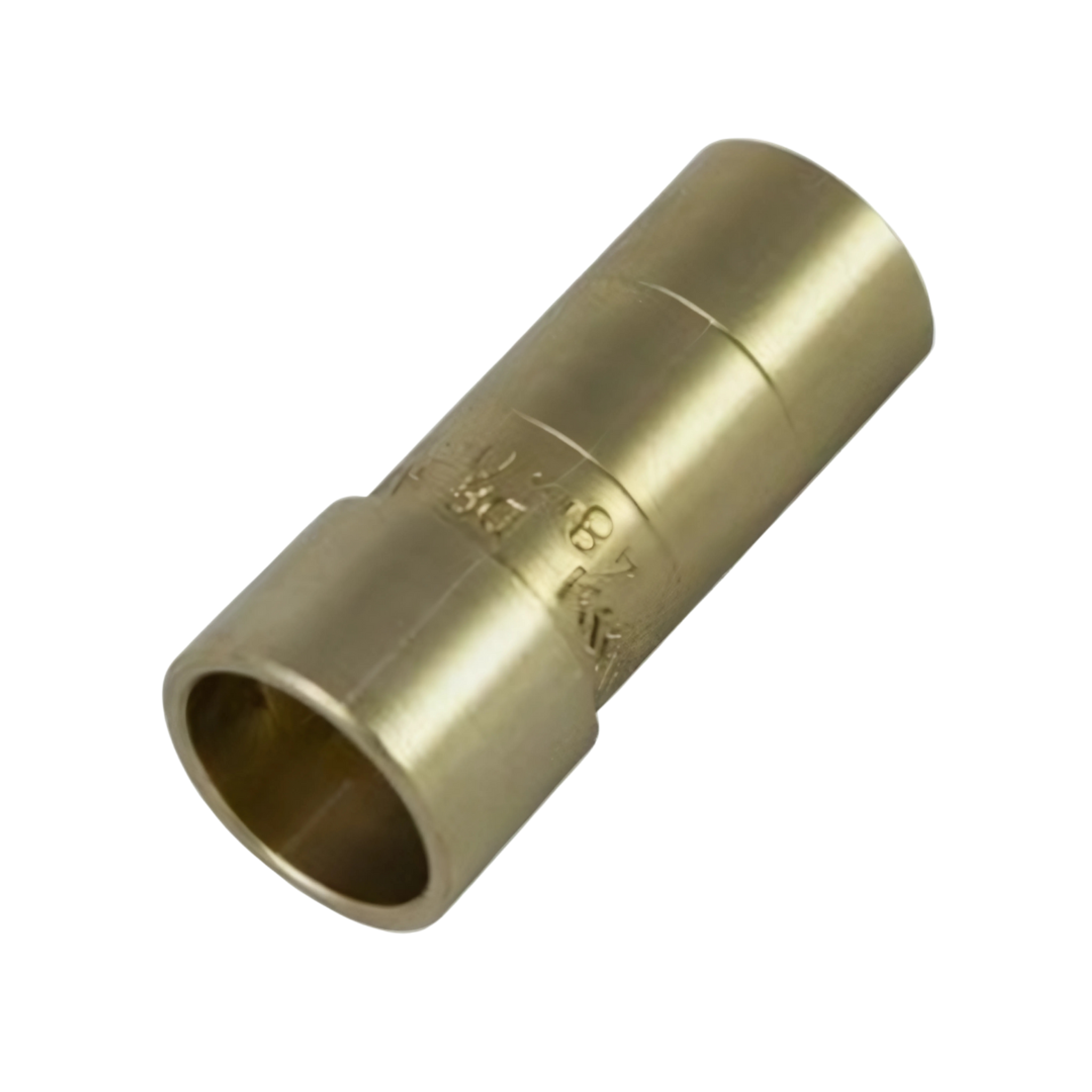

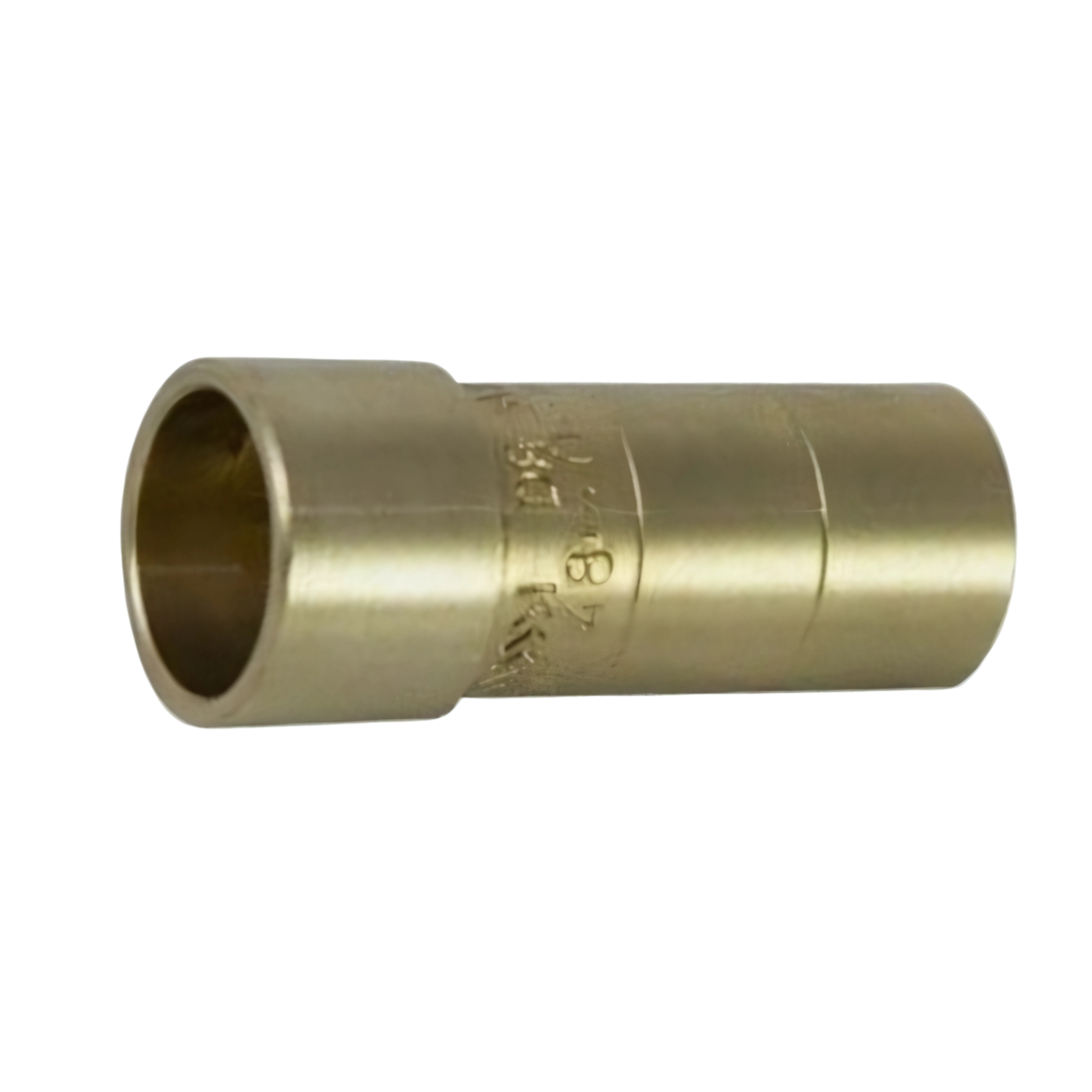

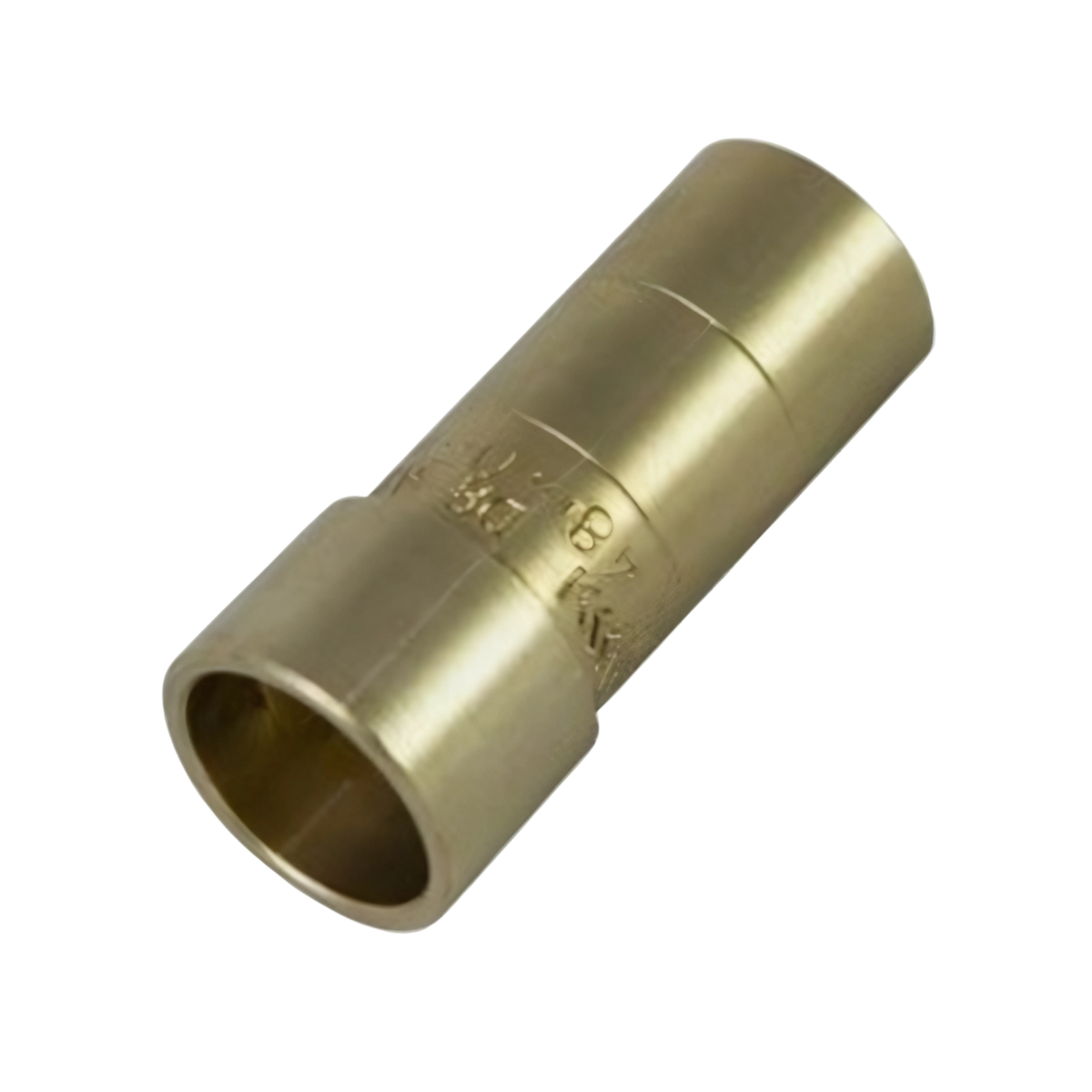

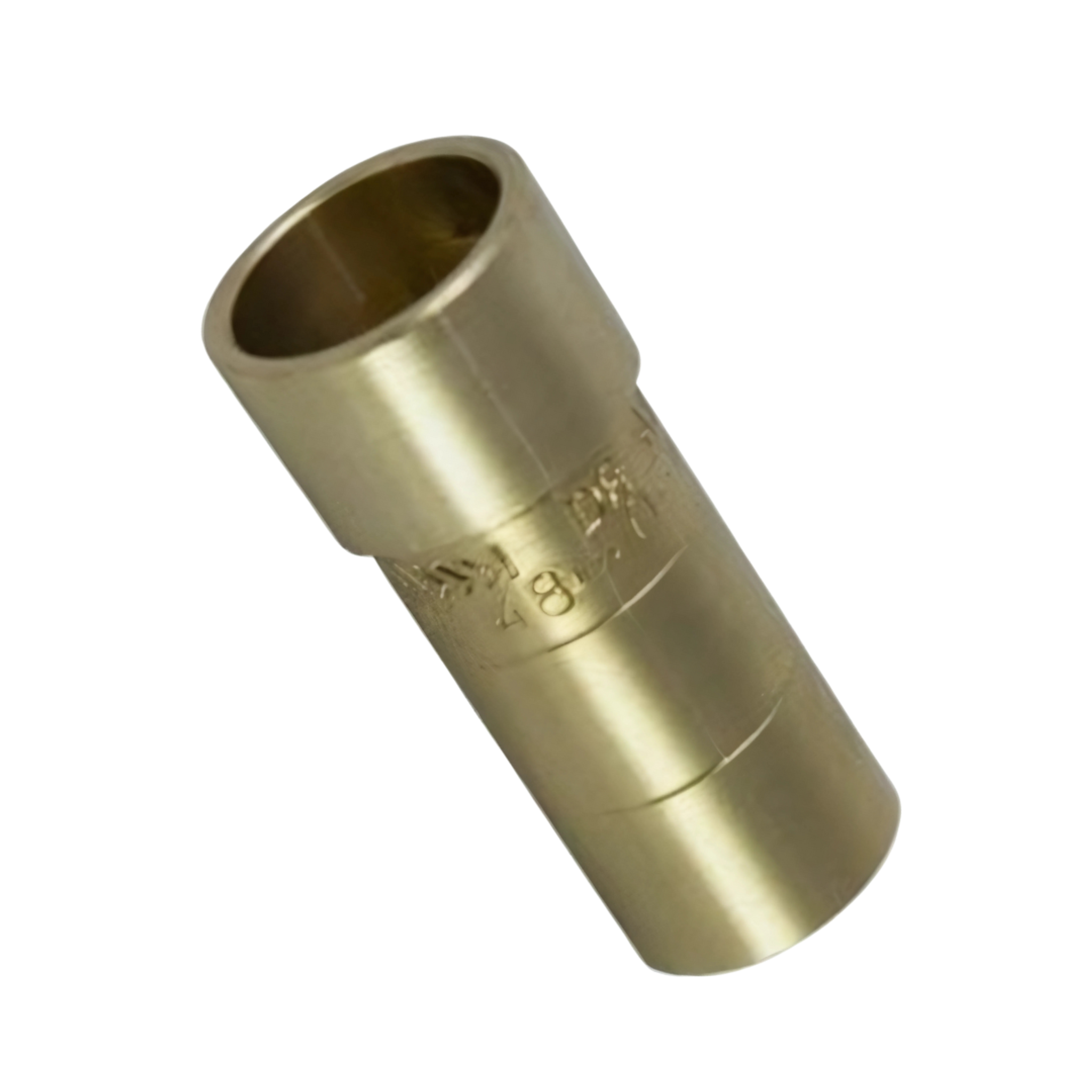

SharkBite® Brazing Tail

The SharkBite® Brazing Tail is designed to adapt SharkBite® PEX pipe to copper via welding the copper tube inside the fitting. Also known as Yorkflex, the tail is inserted into a SharkBite® fitting once it has cooled, creating a secure and reliable connection.

Constructed from solid forged DZR brass, the brazing tail is durable, corrosion-resistant, and certified to Australian standards. This fitting maintains the integrity of the SharkBite® push-to-connect system, ensuring a dependable seal for potable water and hydronic heating installations.

Key Features:

• Adapts SharkBite® PEX pipe to copper via brazing
• Inserted into SharkBite® fitting when cooled
• Dependable push-to-connect system for quick and easy installation
• Reusable and rotatable fittings for flexibility
• Solid forged DZR brass body for strength and corrosion resistance
• Certified to AS/NZS2537 and AS/NZS4020 standards
• Suitable for potable water, hydronic heating, underground use, and behind walls
• Working pressure: 1600 kPa at 20°C / 800 kPa at 95°C

Variants Available:

• SYF600 — 16mm PEX x 12mm Copper Brazing Tail
• SYF606 — 20mm PEX x 20mm Copper Brazing Tail
