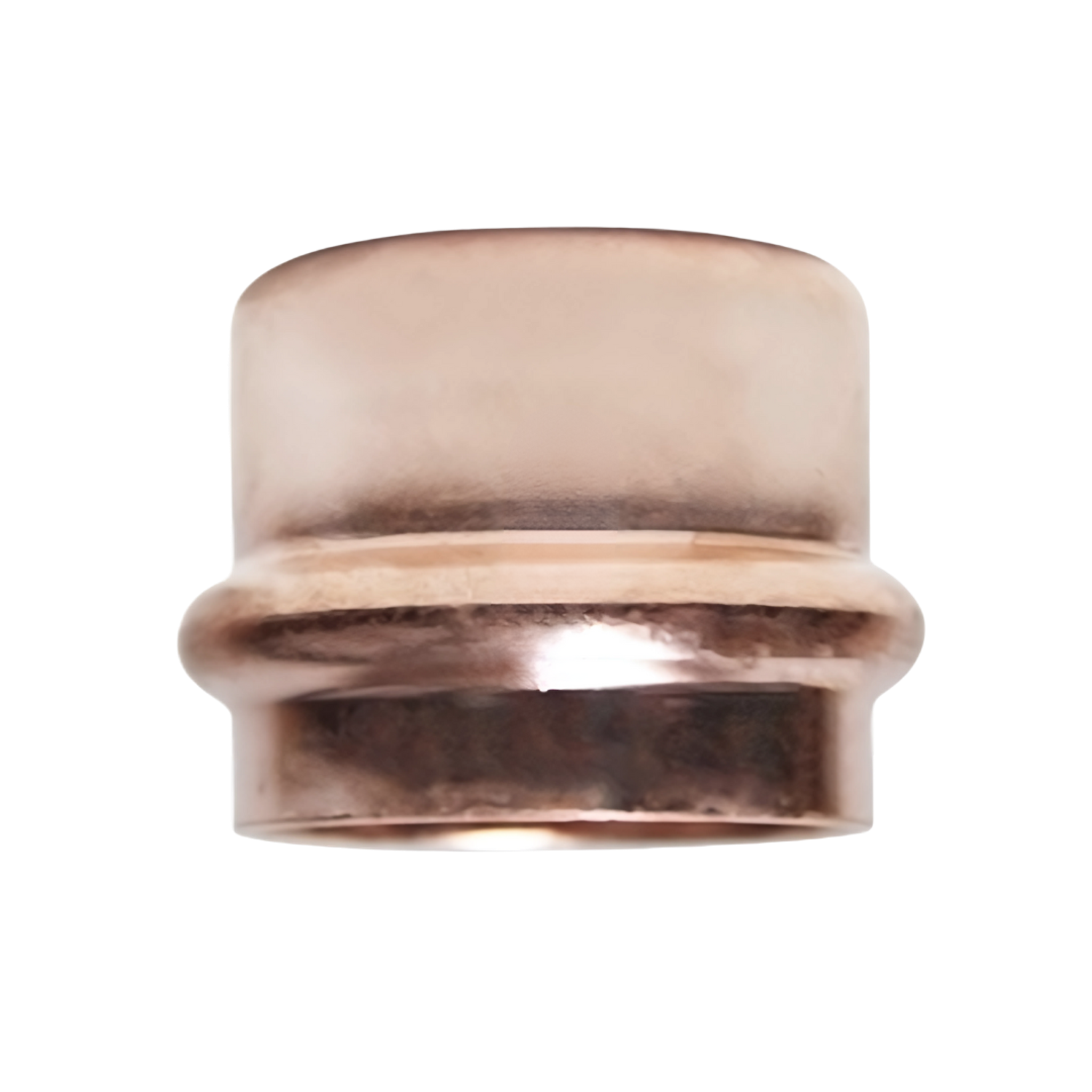

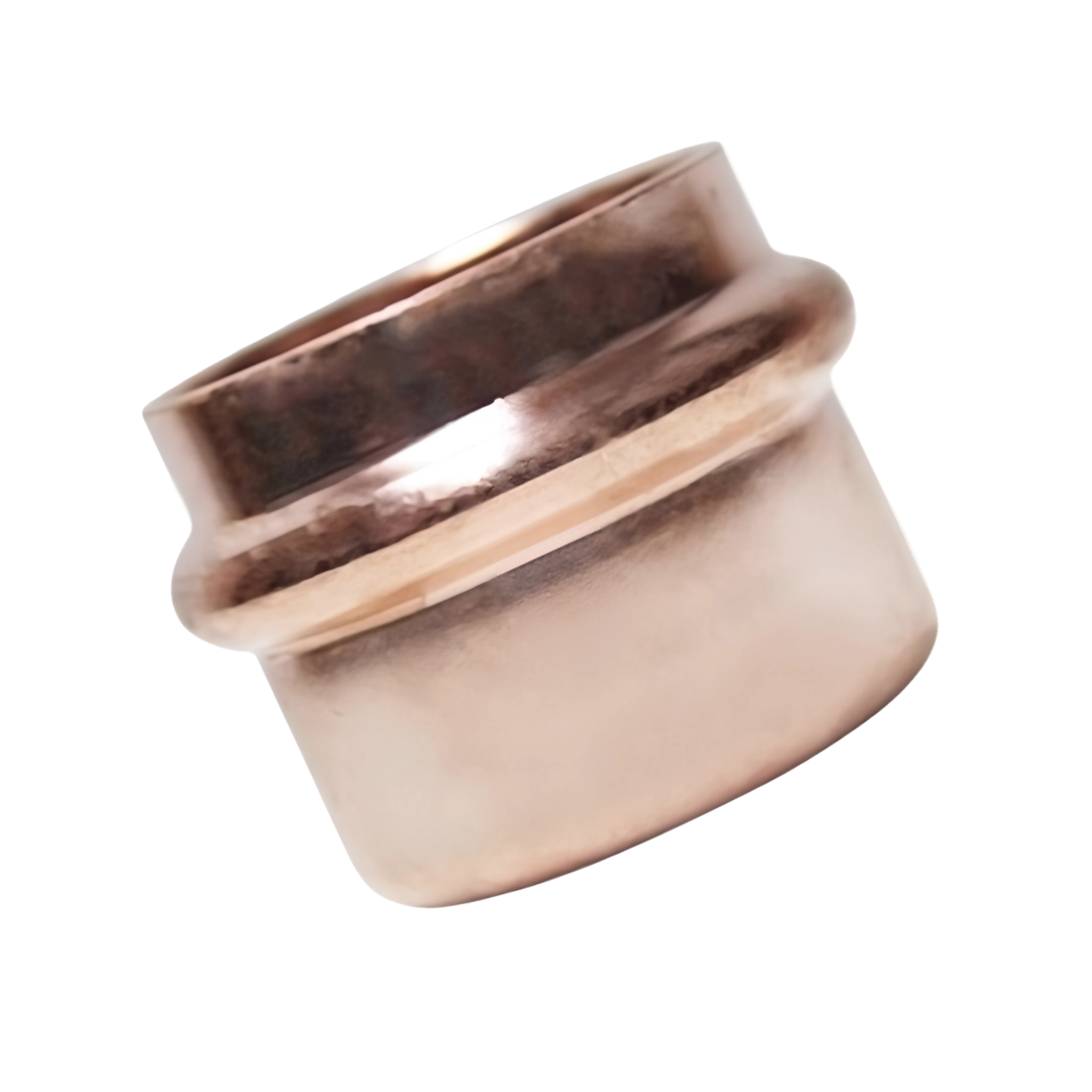

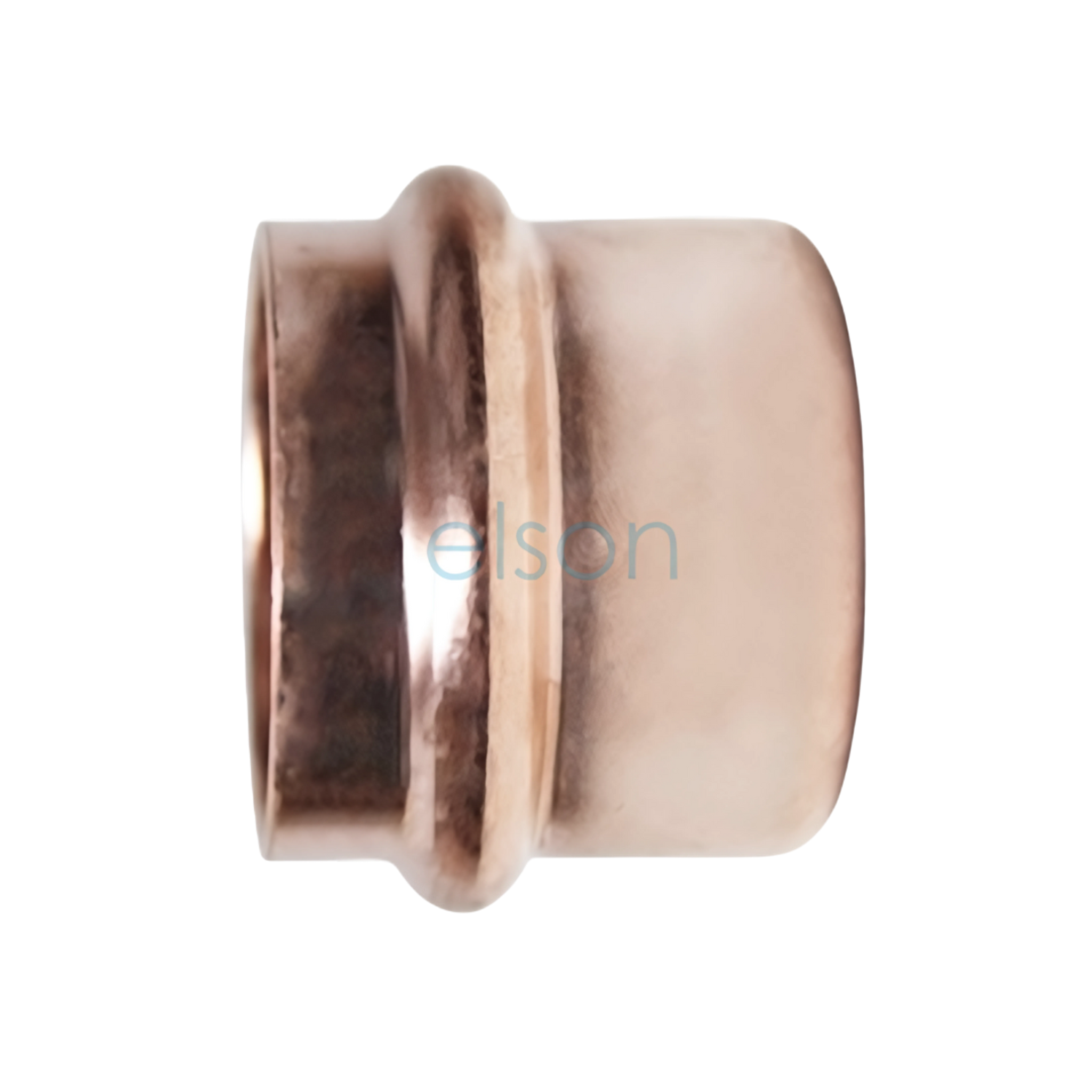

Copper Press Cap - Water

Copper Press Cap – Water

Elson Press fittings are manufactured by an ISO9001 accredited and certified factory. Elson is an established Australian-owned company with over 25 years of experience. These caps are suitable for Water, Solar, and Gas applications, covering sizes from 15mm to 100mm, with ongoing expansions to maintain the largest range in the Australian market.

Key Features:

• Lead-Free Brass Fittings
• Leak-Before-Press O-ring (will leak if not pressed)
• German-certified high-quality O-ring material
• V-profile press design for secure, reliable connections
• Complete certified and tested tooling range available
• Technical manuals and product information provided
• Nationwide after-sales and technical support

Variants:

• FKP345 — ELSON PRESS WATER END CAP 20MM EPW
• FKP350 — ELSON PRESS WATER END CAP 25MM EPW
• FKP355 — ELSON PRESS WATER END CAP 32MM EPW
• FKP360 — ELSON PRESS WATER END CAP 40MM EPW
• FKP365 — ELSON PRESS WATER END CAP 50MM EPW
• FKP370 — ELSON PRESS WATER END CAP 65MM EPW
• FKP372 — ELSON PRESS WATER END CAP 80MM – WITH 20MM FI BSP PORT EPW
• FKP374 — ELSON PRESS WATER END CAP 100MM – WITH 20MM FI BSP PORT EPW

Specifications:

• Material: Lead-Free DR Brass (<0.1% Pb)
• Suitable For: Potable water, water & solar applications
• Max Working Pressure: 1600 kPa
• Max Working Temperature: -20°C to 100°C
• Press Type: V-profile press
• Range: 20mm – 100mm
• Standards: ISO9001 Certified Manufacturing
• Warranty: 25-Year Product Warranty

Installation: Flame-free press installation, no hot works required
