Sharkbite Compression Adaptor

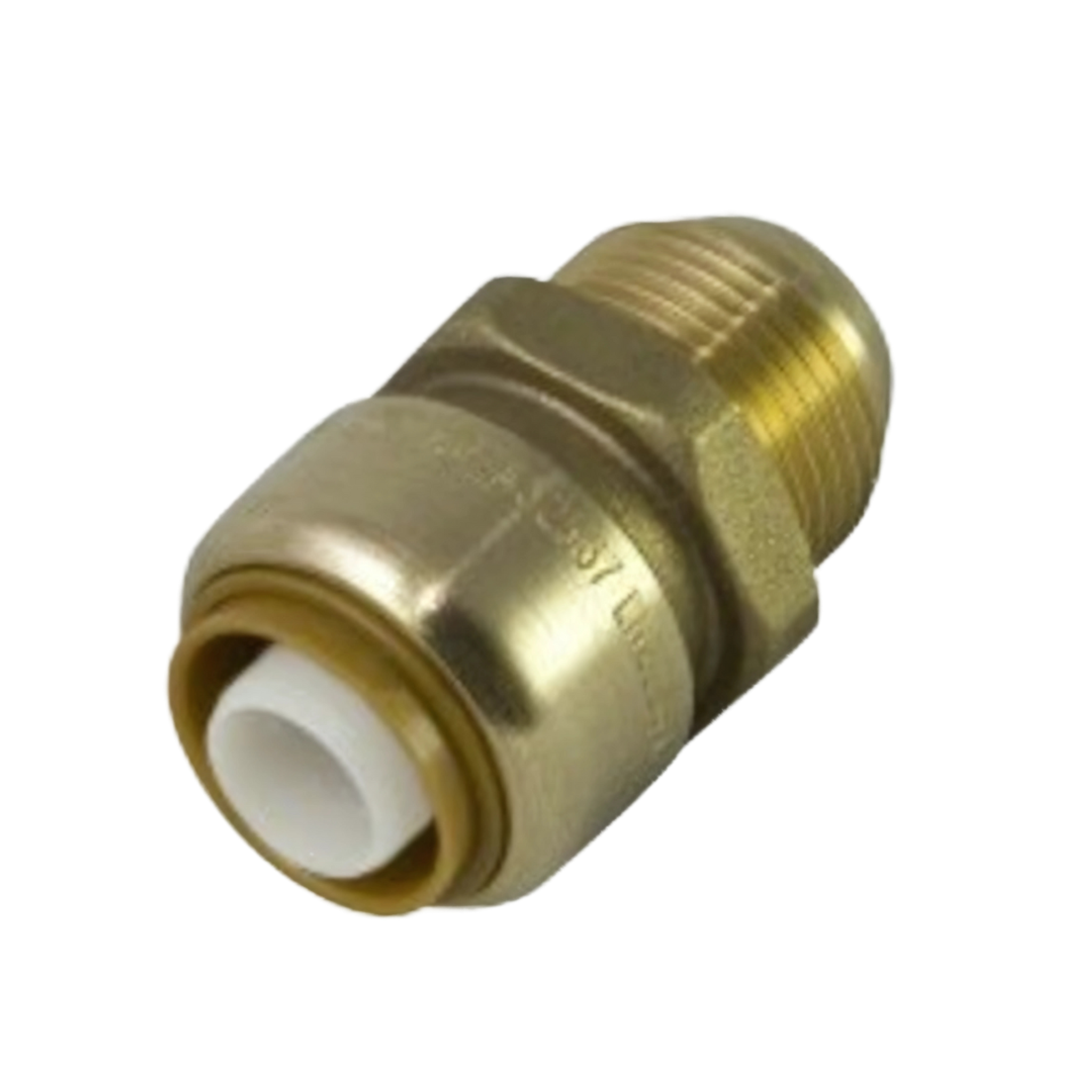

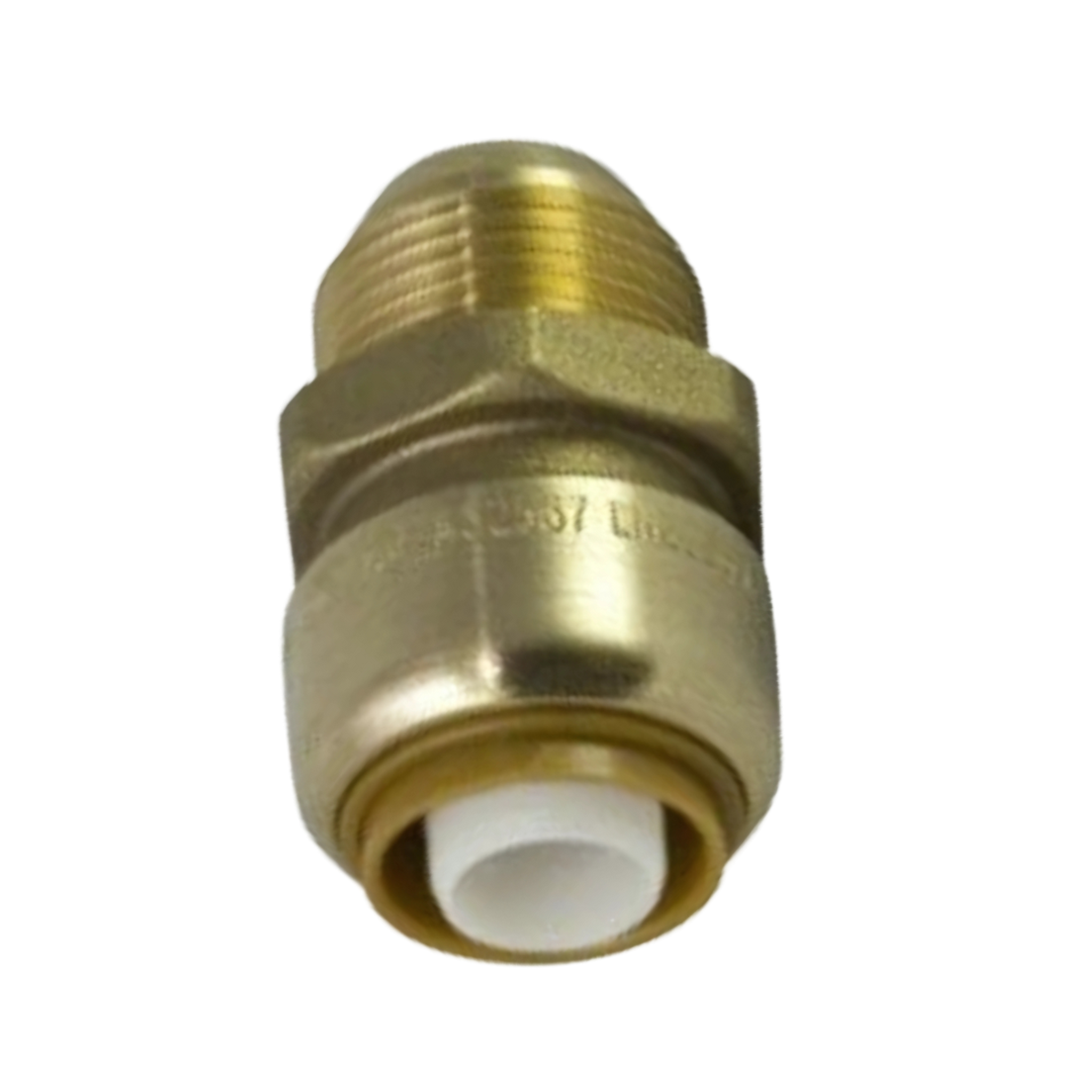

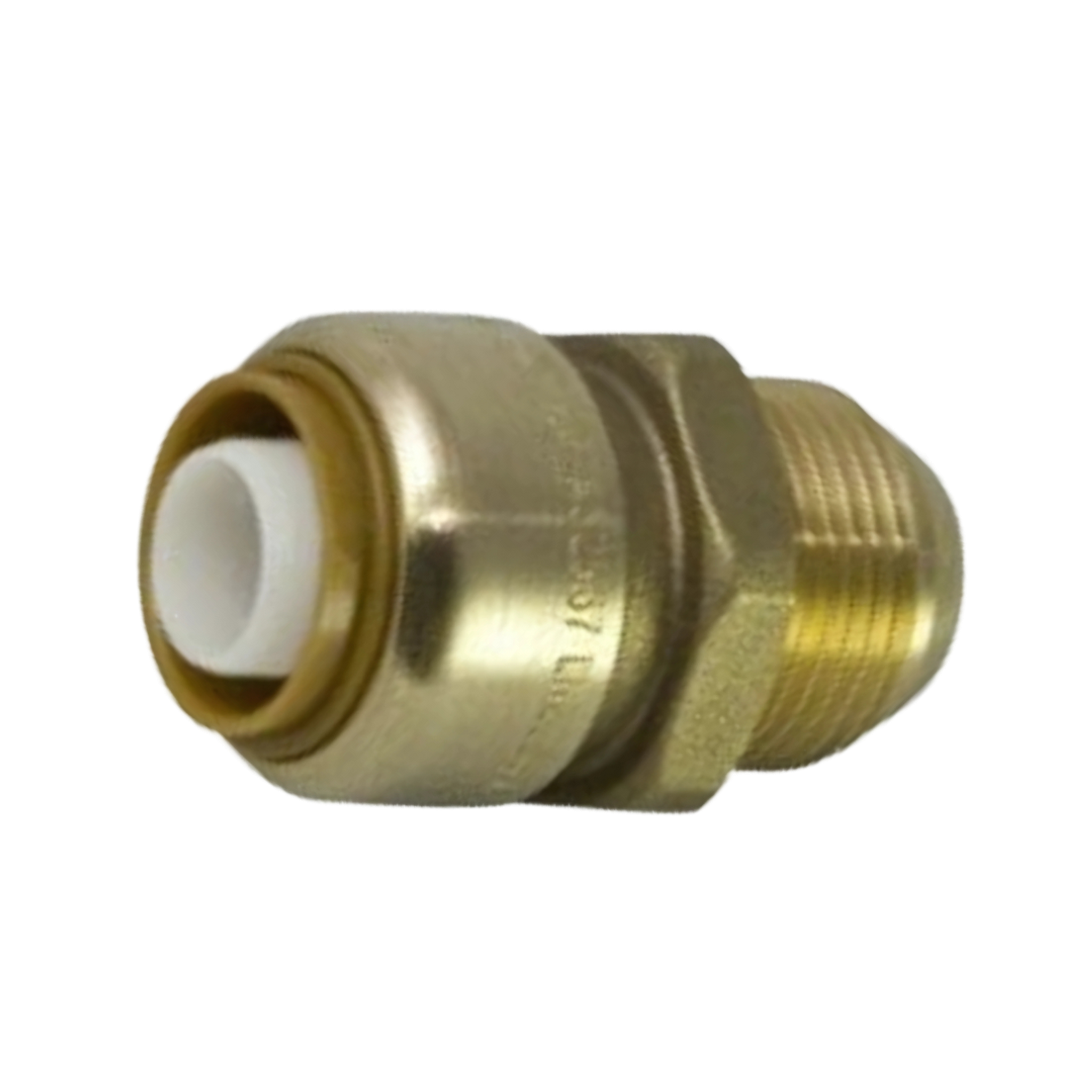

SharkBite® Compression Adaptor (Flare)

The SharkBite® Compression Adaptor (Flare) is designed to adapt SharkBite® PEX pipe to copper pipes via a compression fitting. Also known as Yorkflex or SharkBite to Compression Couplings, this fitting comes complete with compression nuts for a secure and reliable connection.

Made from solid forged DZR brass, the adaptor is durable, corrosion-resistant, and certified to Australian standards. The integral tube liner ensures a tight seal for PEX installations, and the push-to-connect system allows for quick and easy installation without soldering, clamps, unions, or glue. Fittings can also be rotated after assembly for installation in tight spaces.

Key Features:

• Adapts SharkBite® PEX pipe to copper via compression fittings
• Comes complete with compression nuts for secure connection
• Dependable push-to-connect system for fast installation
• Reusable and rotatable fittings for flexibility
• Solid forged DZR brass body for strength and corrosion resistance
• Certified to AS/NZS2537 and AS/NZS4020 standards
• Suitable for potable water, hydronic heating, underground use, and behind walls
• Working pressure: 1600 kPa at 20°C / 800 kPa at 95°C

Variants Available:

• SYF610 — 16mm PEX x 12mm Flare
• SYF612 — 20mm PEX x 20mm Flare
