Double Check Valve Medium Hazard

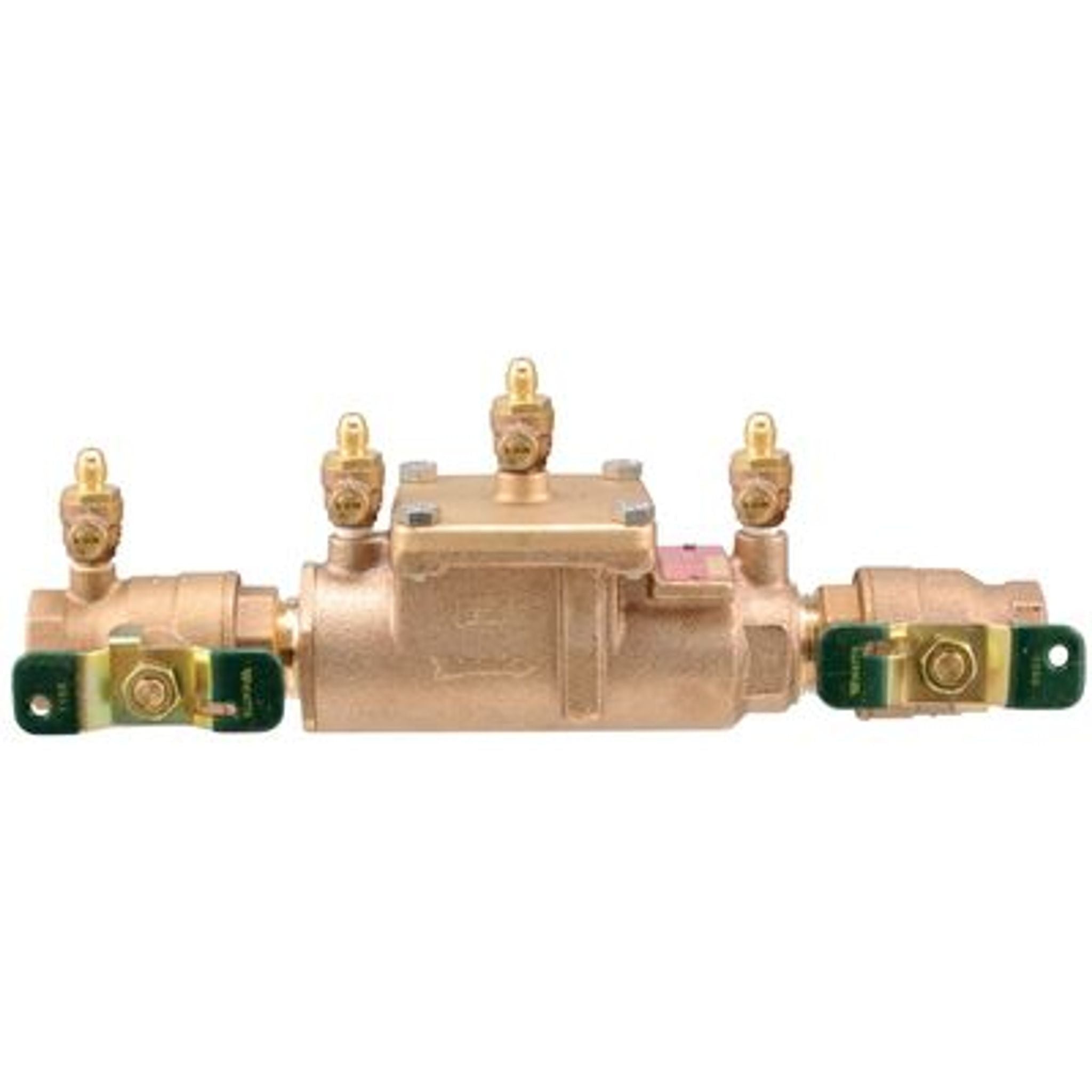

Double Check Valve – Medium Hazard
Variants Available: 20mm to 50mm

The Double Check Valve (Medium Hazard) is a robust backflow prevention device designed for medium hazard applications where protection from both back-pressure and back-siphonage is essential. Ideal for commercial, industrial, and residential systems, this valve ensures the safe and reliable prevention of contaminated water flowing back into the potable supply.

Constructed with a durable cast bronze body and featuring modular construction, the valve offers easy maintenance with a single cover and top entry design. Replaceable seats and seat discs enhance longevity, while the compact design allows versatile installation options.

Features and Benefits:

• Easy Maintenance: Single cover, top-entry design with no special tools required
• Replaceable Seats and Seat Discs: Modular construction for cost-effective servicing
• Compact and Durable: Cast bronze body for long-lasting performance
• Testable Device: Top-mounted ball valve test cocks for easy compliance testing
• Low Pressure Drop: Efficient flow with minimal head loss
• Versatile Installation: Suitable for vertical or horizontal mounting; can be installed below ground in a suitable enclosure
• Suitable for Continuous and Non-Continuous Pressure Systems
• Temperature Range: 0.5°C to 90°C
• Pressure Rating: Up to 1400 kPa
• 15mm to 25mm Sizes: Equipped with convenient tee handles for operation

Applications:

• Medium hazard installations in commercial and residential plumbing
• Backflow protection where both back-pressure and back-siphonage risks exist
• Irrigation systems, fire sprinklers, and industrial water supplies
• Systems requiring periodic testing and maintenance for regulatory compliance

Ensure safety and compliance with the Double Check Valve – Medium Hazard, a reliable solution for backflow prevention in medium-risk environments.
