Sharkbite Elbow

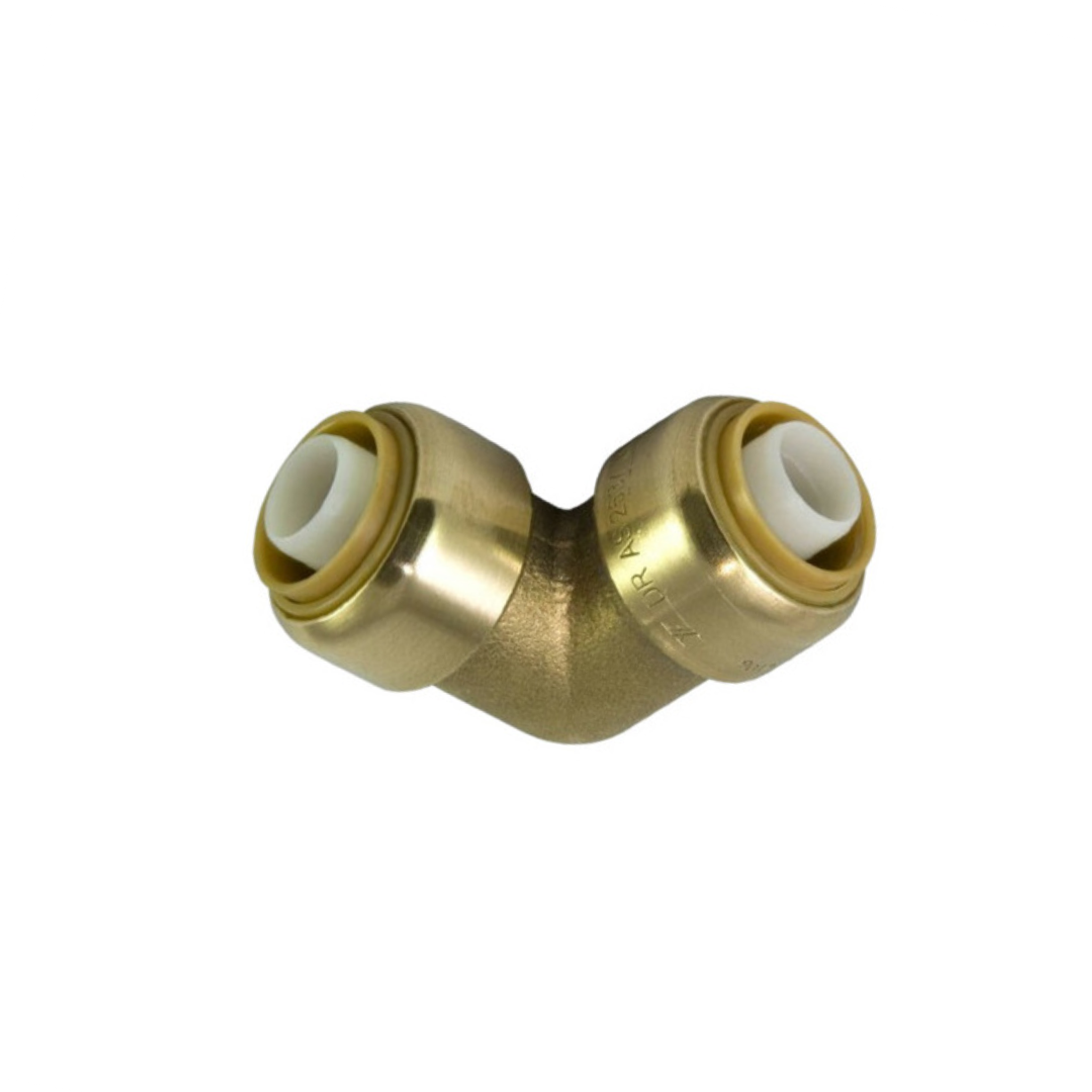

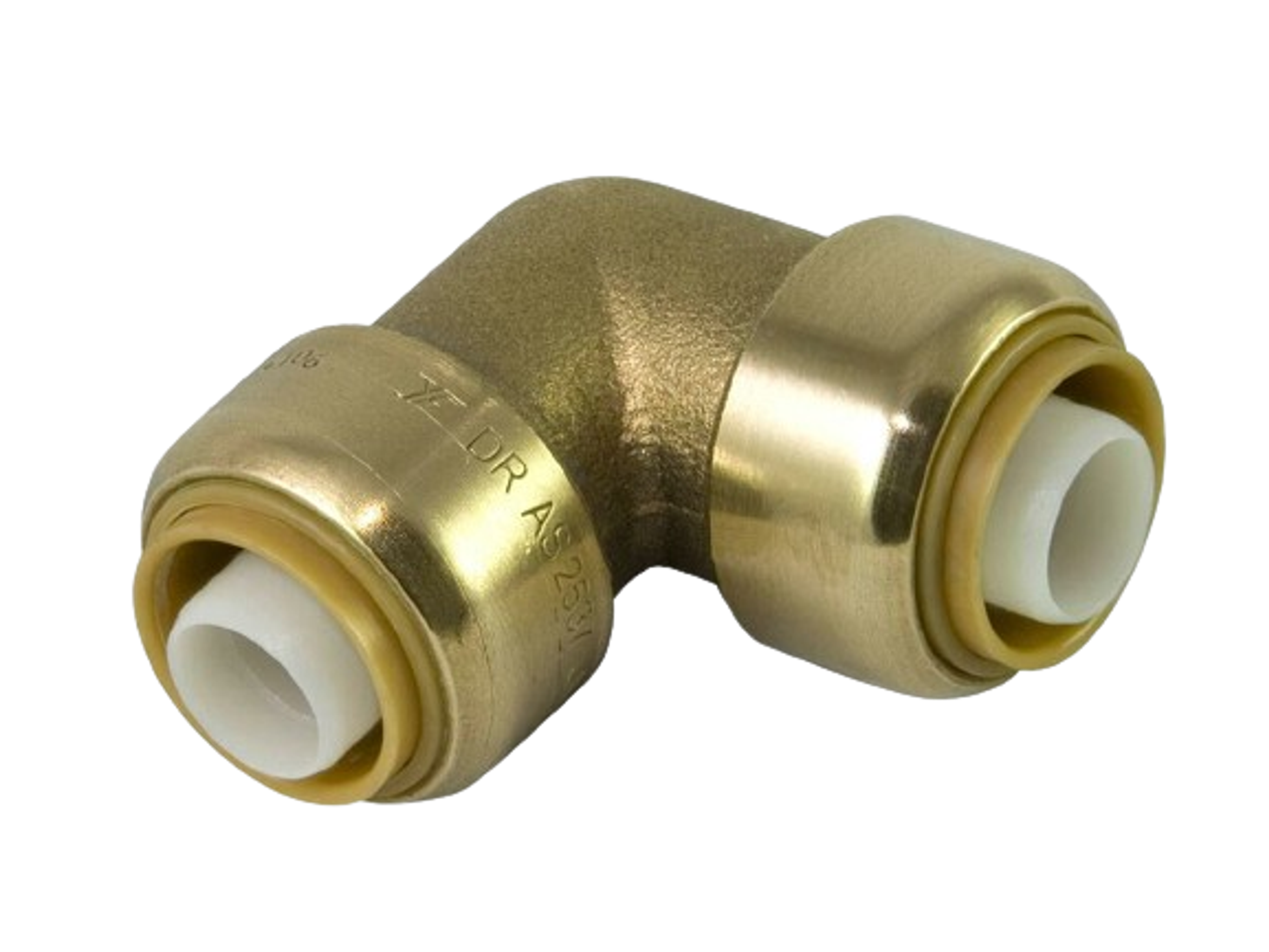

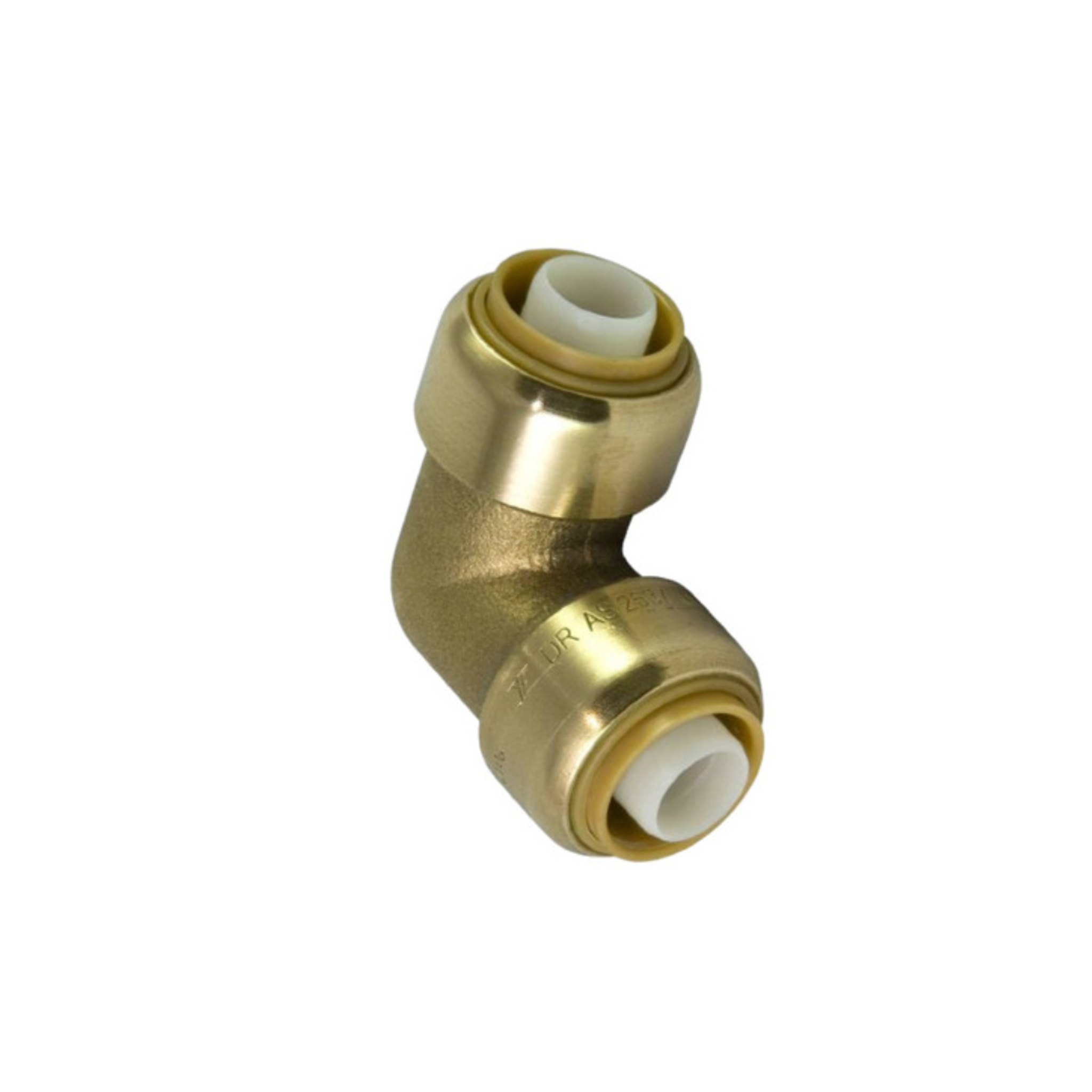

SharkBite® Elbow

The SharkBite® Elbow is designed to join SharkBite® PEX or copper pipes at a 90° angle, providing a reliable and efficient push-to-connect solution. Also known as Yorkflex or SharkBite Elbow, these fittings require no soldering, clamps, unions, or glue, making installation simple and time-saving.

Constructed from solid forged DZR brass, the elbow is durable, corrosion-resistant, and certified to Australian standards. Its integral tube liner ensures a secure seal for PEX pipes, and fittings can be rotated after assembly, allowing installation even in tight spaces.

Key Features:

• Joins SharkBite® pipes at a 90° angle
• Dependable push-to-connect system for quick installation
• Reusable and rotatable fittings for flexibility
• Solid forged DZR brass body for strength and corrosion resistance
• Certified to AS/NZS2537 and AS/NZS4020 standards
• Suitable for potable water, hydronic heating, underground use, and behind walls
• Working pressure: 1600 kPa at 20°C / 800 kPa at 95°C
• Compatible with various plastic systems and copper using conversion connections

Variants Available:

• SYF248 — 16mm x 16mm PEX
• SYF256 — 20mm x 20mm PEX
• SYF260 — 25mm x 25mm PEX (also suits 25 Cu)
