Copper Elbow 90 Degree

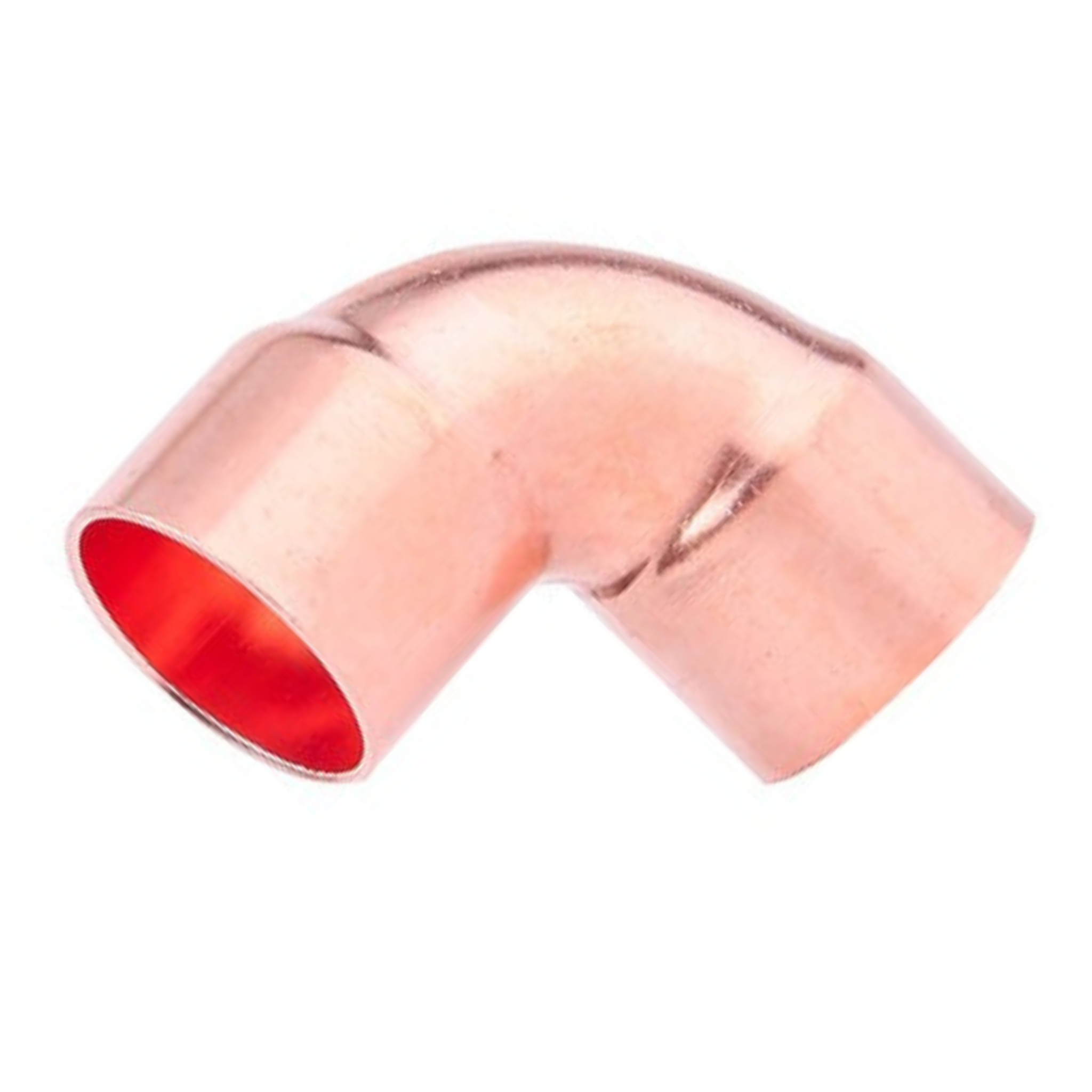

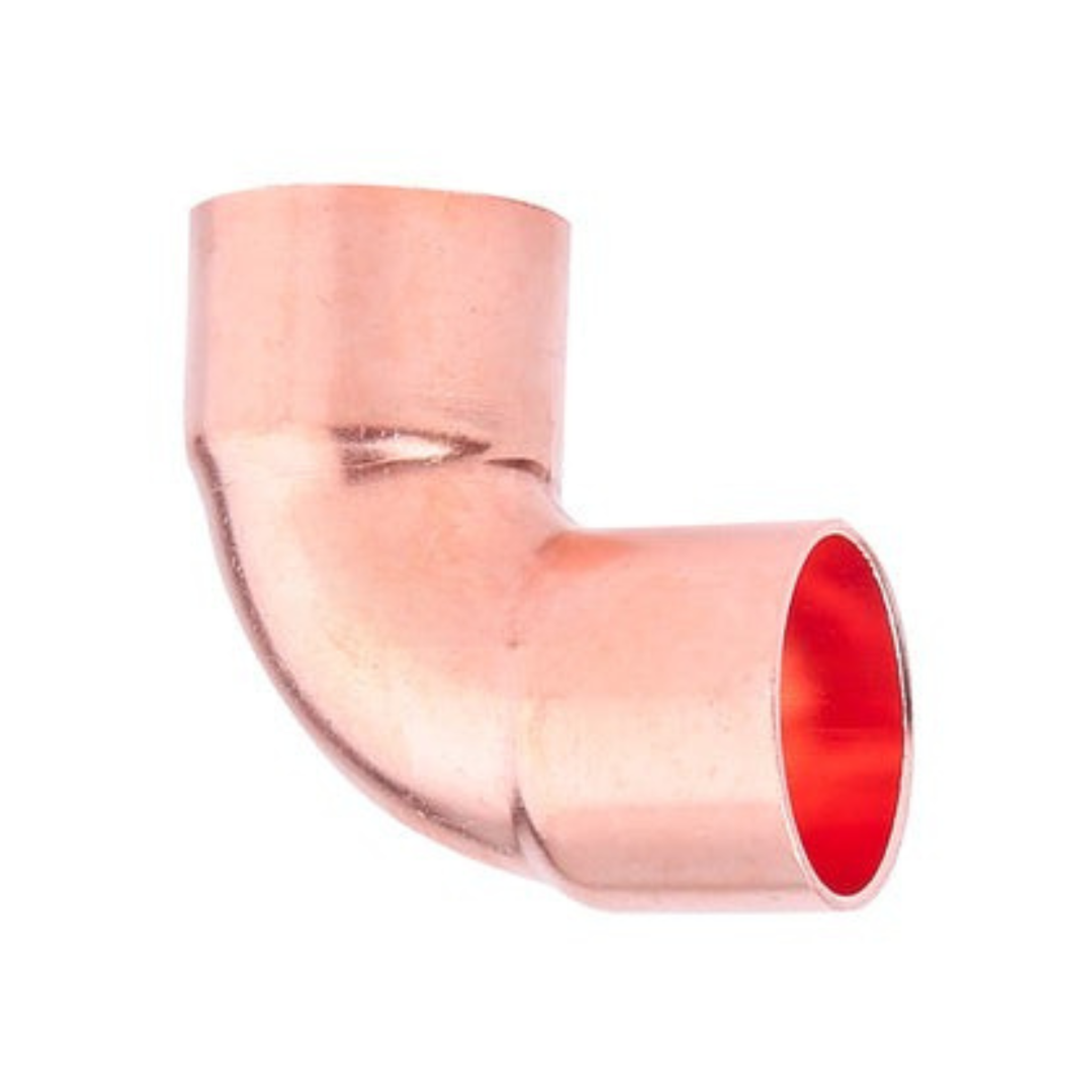

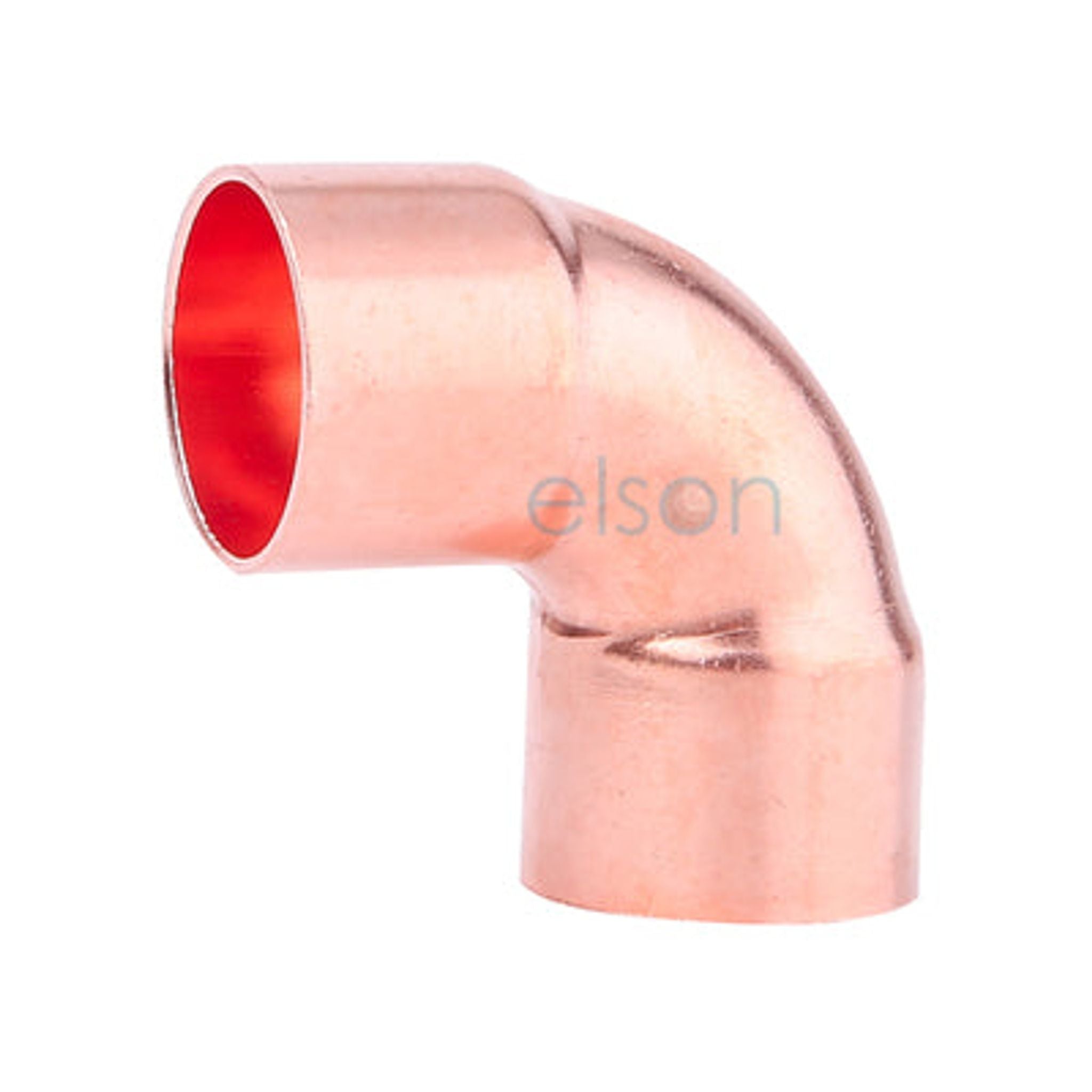

Copper Elbow 90° – High Pressure Copper Fitting

The Copper Elbow 90° is a premium high-pressure copper fitting designed to change the direction of copper pipework by 90 degrees. Both ends are the same size, ensuring a precise and secure connection.

Manufactured from high-quality copper, these fittings comply with Australian Standards AS 3688 & AS 1432, making them suitable for potable water, gas, and high-pressure applications. Designed for use with silver brazing alloy (AS 1167.1 compliant), they deliver strong, leak-free joints with superior durability.

When paired with Type B copper tube, these elbows achieve working pressures of 3500–5290kPa depending on size, offering exceptional mechanical strength and chemical resistance. Copper is naturally safe, recyclable, fire-resistant, vermin-proof, and long-lasting, making it the material of choice for Australian plumbing systems.

Key Features:

• 90° copper bend for pipe direction changes
• High-pressure capillary fitting
• Complies with AS 3688 & AS 1432
• WaterMark approved for compliance & safety
• Suitable for potable water & gas installations
• Silver brazing alloy compliant with AS 1167.1
• Durable, corrosion-resistant, and long-lasting
• Maximum working temperature: 80°C
• Maximum working pressure: 2000kPa

Note: Installation must be completed by a licensed plumber if connected to the mains.

Available Variants:

• FYL248 — LE Capillary No.W12 12mm CY Elbow Copper (Bend)
• FYL256 — LE Capillary No.W12 20mm CY Elbow Copper (Bend)
• FYL260 — LE Capillary No.W12 25mm CY Elbow Copper (Bend)
• FHC000 — High Pressure 90° Copper Bend 32mm
• FHC001 — High Pressure 90° Copper Bend 40mm
• FHC002 — High Pressure 90° Copper Bend 50mm
• FHC003 — High Pressure 90° Copper Bend 65mm
• FHC004 — High Pressure 90° Copper Bend 80mm
• FHC005 — High Pressure 90° Copper Bend 100mm
• FHC0055 — High Pressure 90° Copper Bend 125mm
• FHC006SR — High Pressure 90° Copper Bend Short Radius 150mm
• FHC007 — High Pressure 90° Copper Bend 200mm
