Sharkbite Elbow Sharkibite - Copper

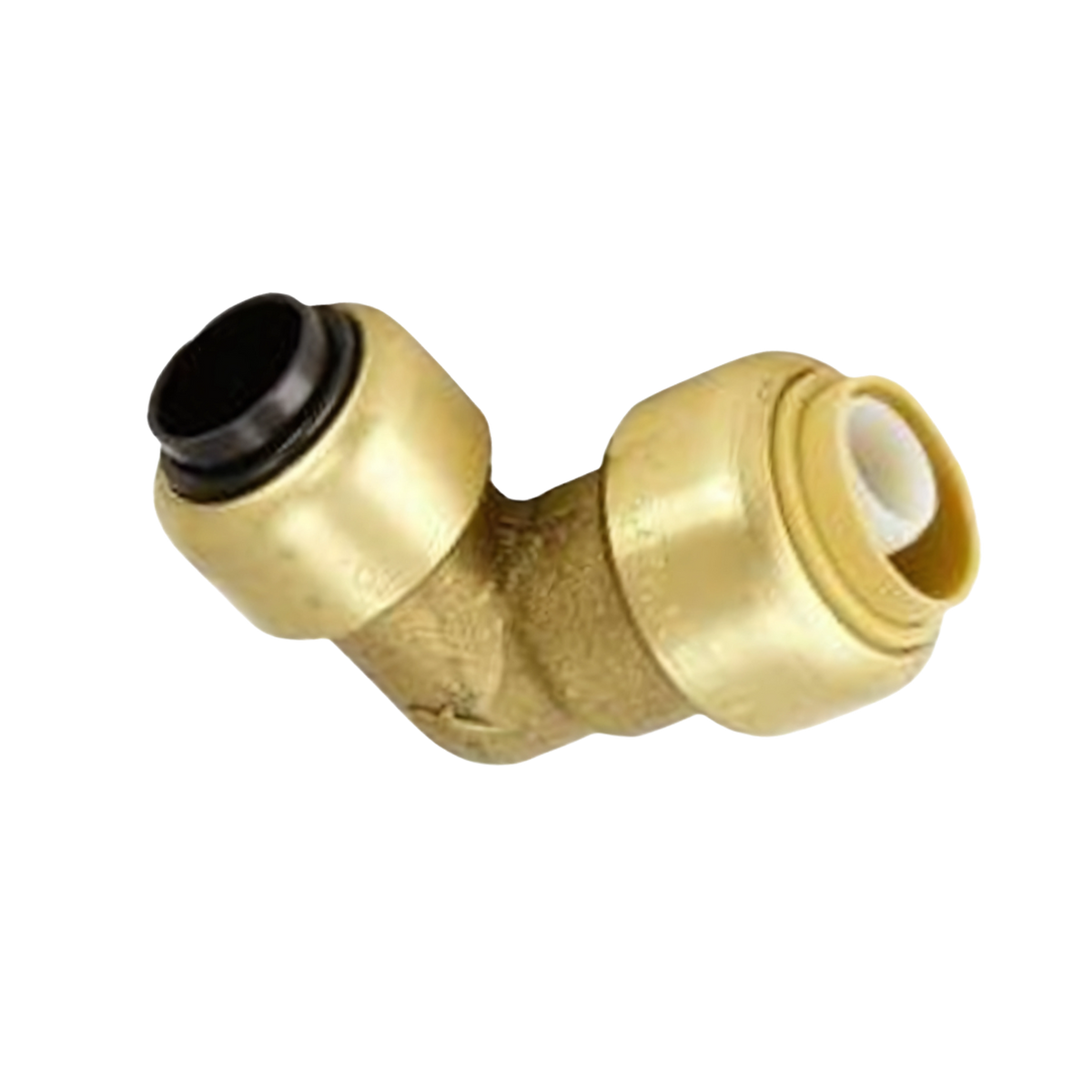

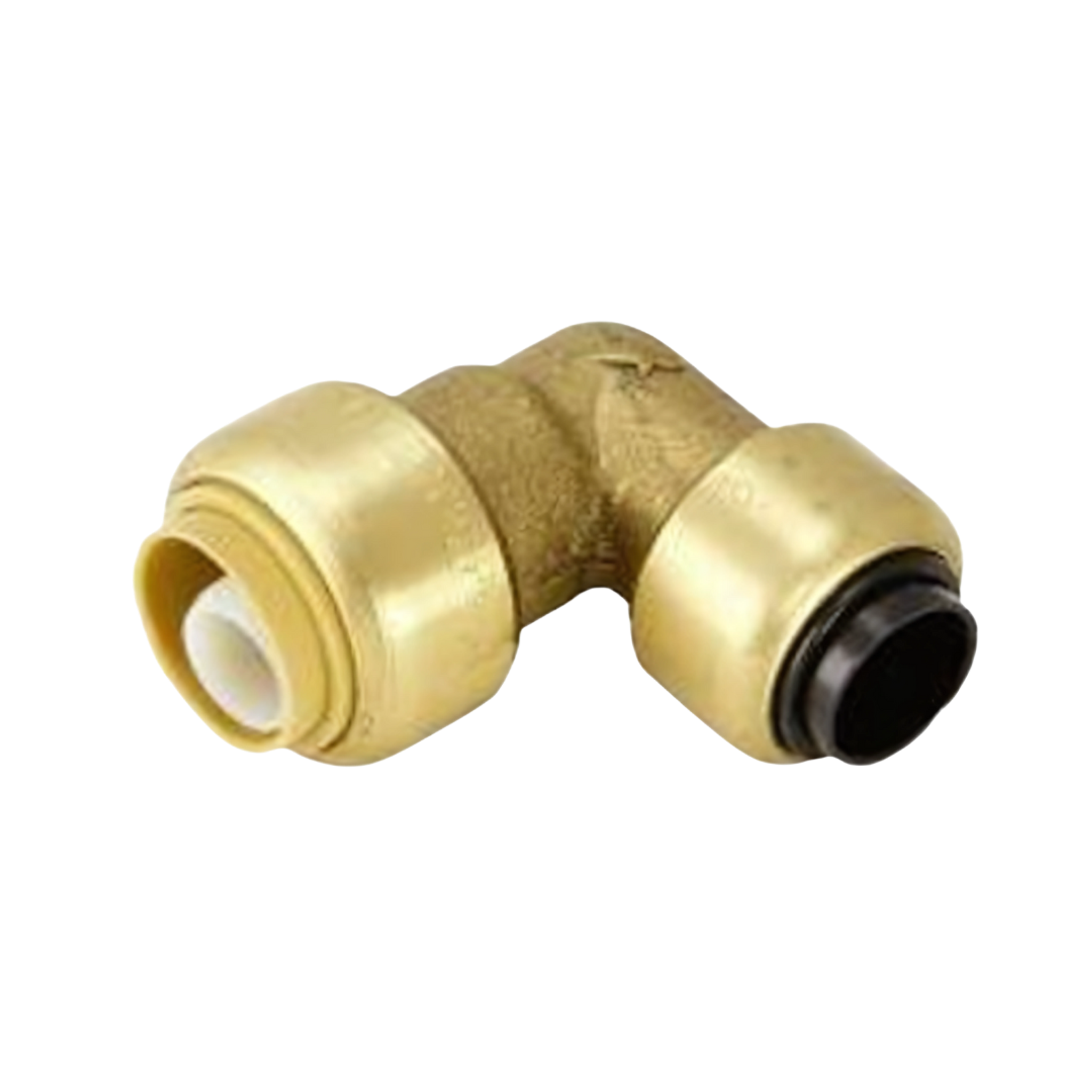

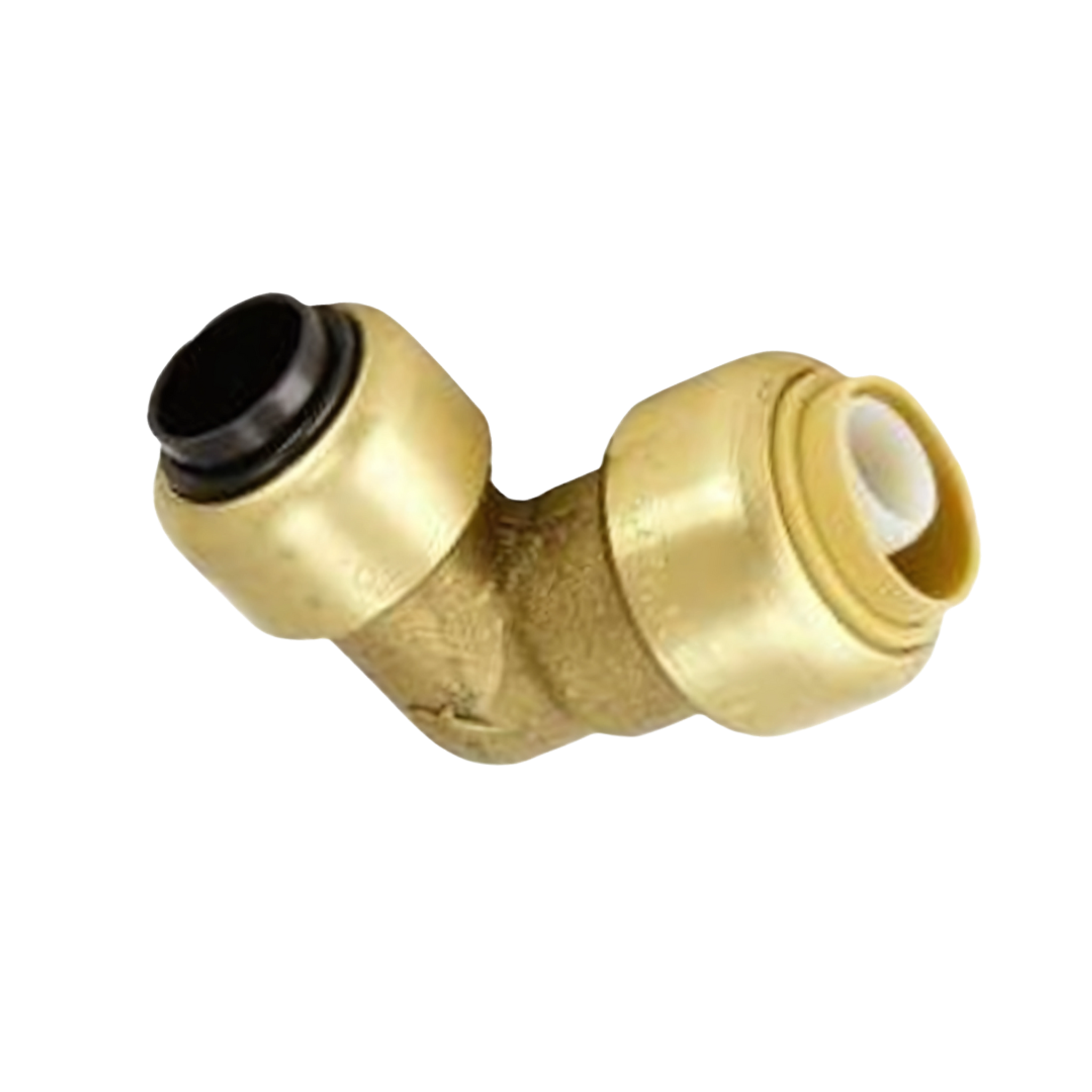

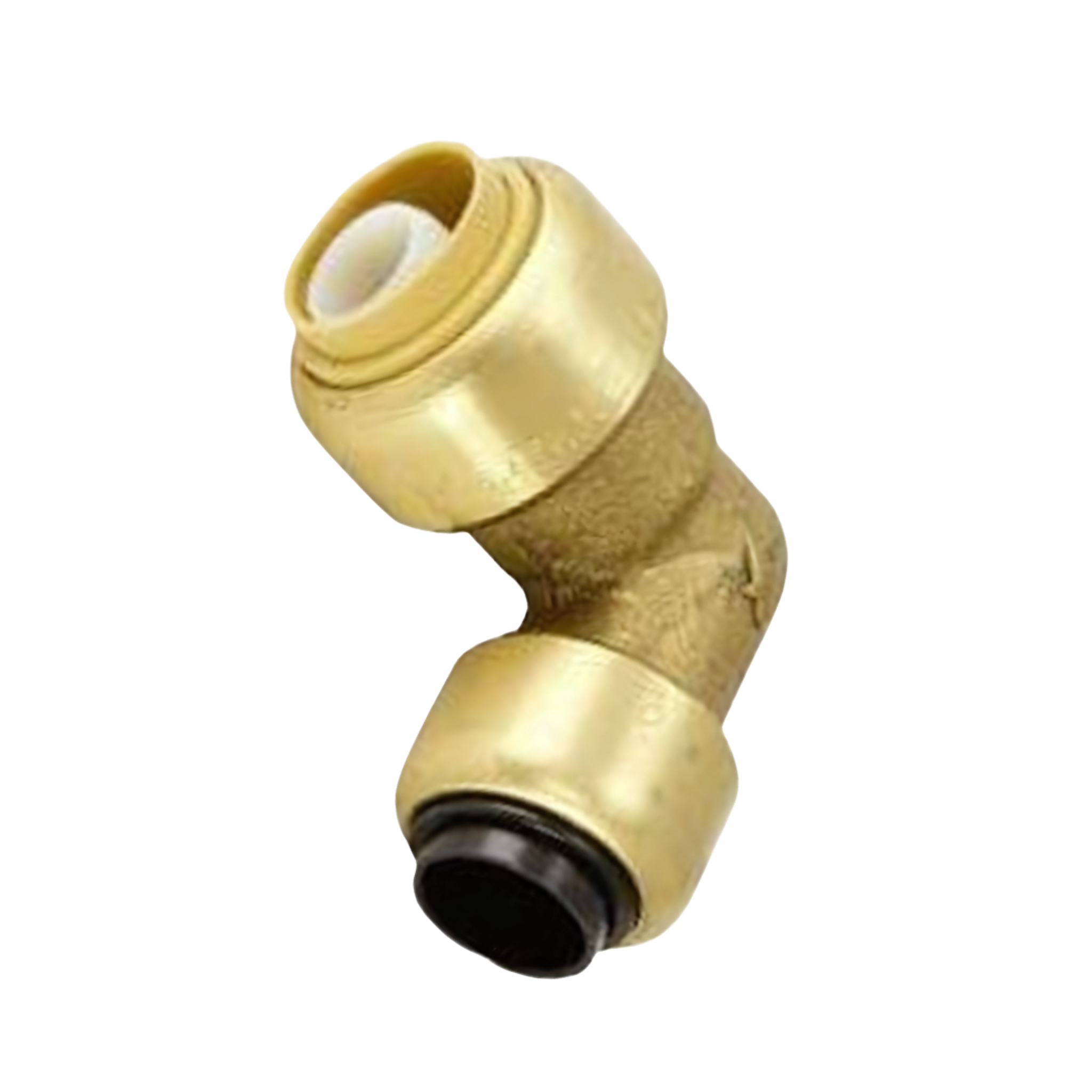

SharkBite – Copper Elbow

SharkBite Copper Elbows are designed to connect SharkBite pipe to copper pipe at a 90° angle with ease and reliability. Known as Yorkflex or SharkBite to Copper Elbows, these fittings feature a push-to-connect design on both ends, allowing fast installation without soldering, clamps, unions, or glue.

Built from solid forged DZR brass, SharkBite elbows are compact, durable, and corrosion resistant, meeting Australian standards for potable water distribution. They are approved for use underground and behind walls without access panels, as well as in hydronic heating systems.

Features & Benefits

• Quick & Easy Installation – push-to-connect action saves time and labour.
• Dependable & Reusable – fittings can be rotated and disconnected using the SharkBite tool.
• Durable Brass Construction – solid forged DZR brass for strength and corrosion resistance.
• Certified & Approved – design certified to AS/NZS 2537 and AS/NZS 4020 for potable water use.
• Versatile Applications – suitable for copper, PEX, and compatible plastic systems.
• Reliable Performance – working pressure of 1600 kPa at 20°C or 800 kPa at 95°C.

Available Variants

• SYF250 — SharkBite Max to SharkBite Max Elbow 16 PEX x 12 CU F250X Ff250

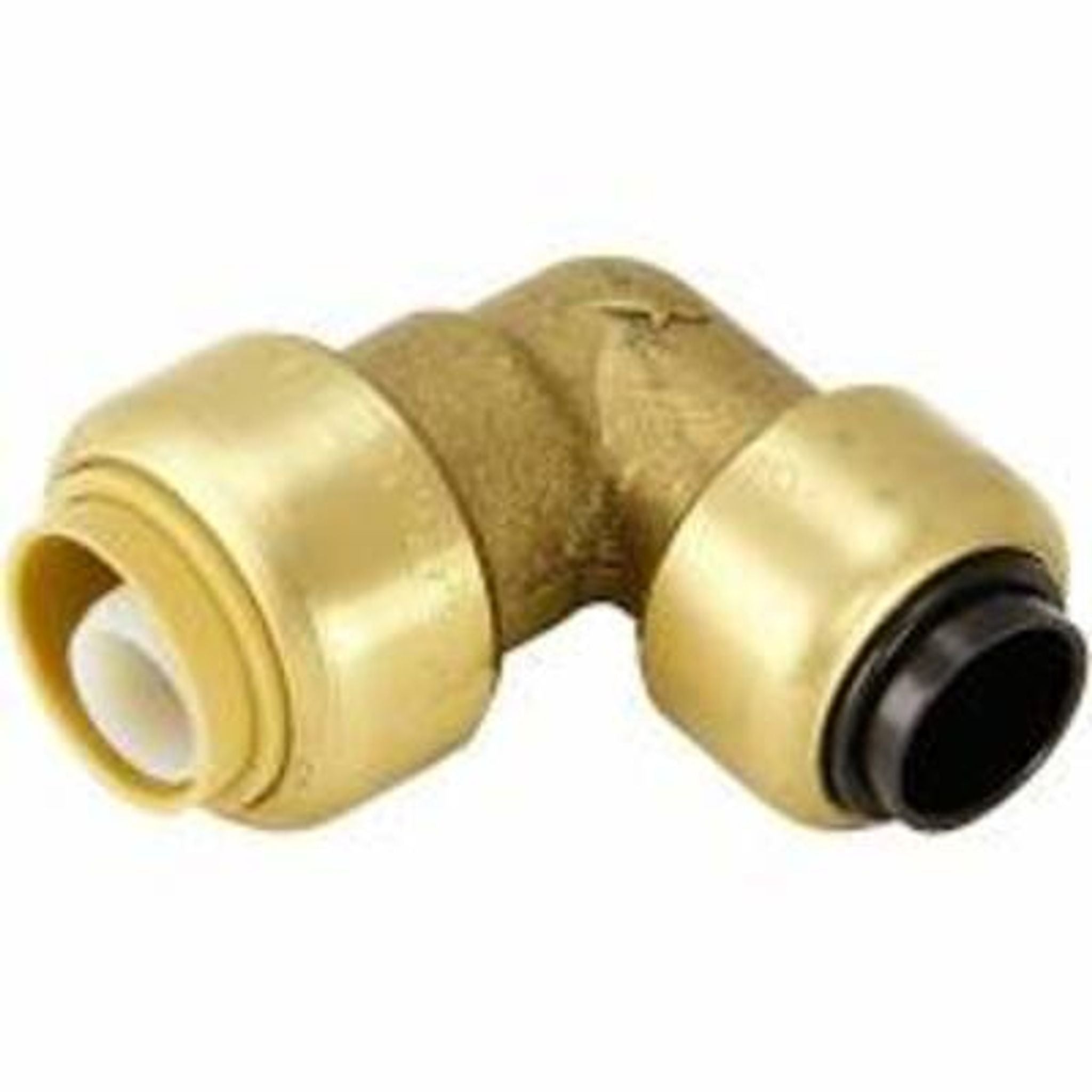

• SYF258 — Yorkflex to SharkBite Elbow 20 PEX x 20 CU F258
