Sharkbite Female Lugged Elbow

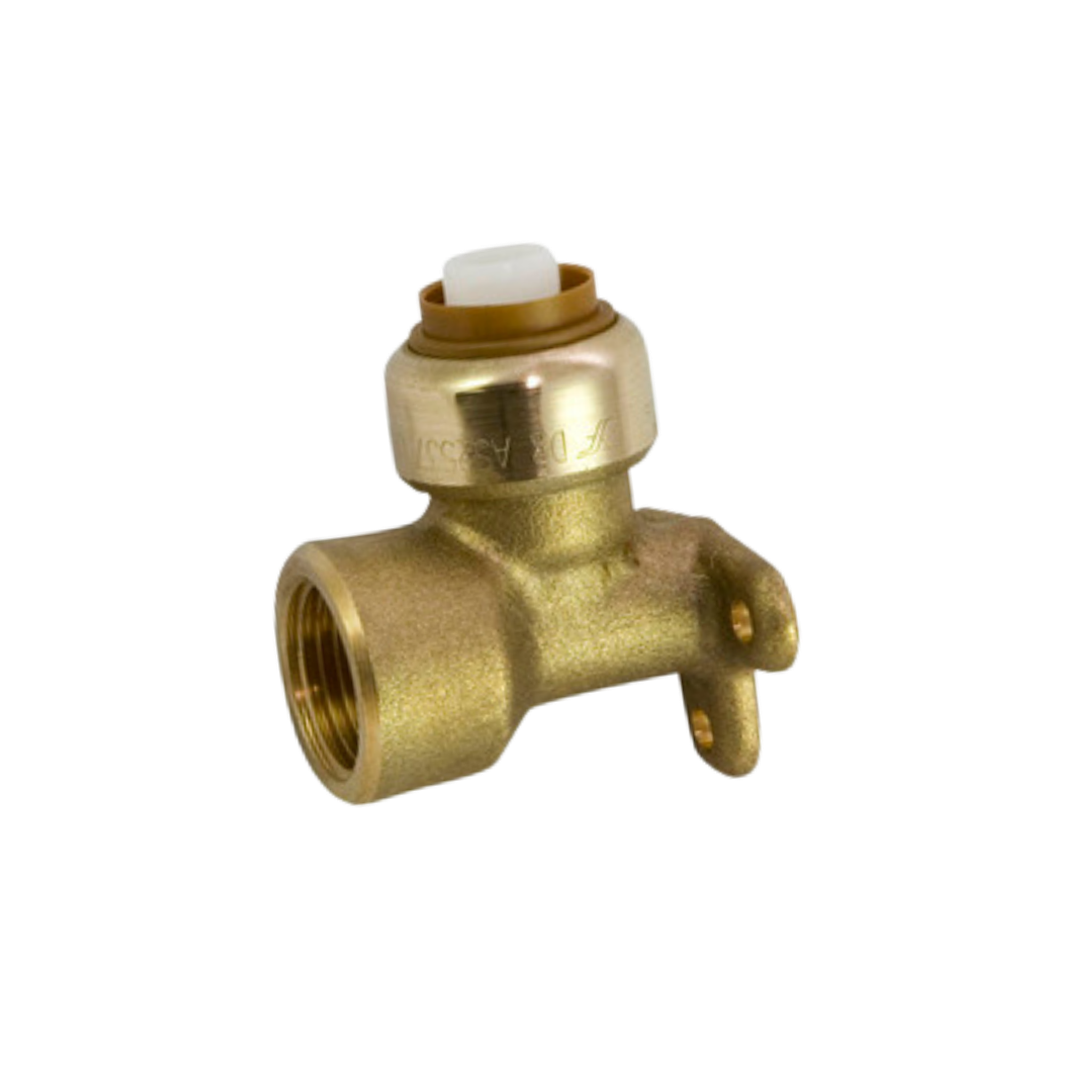

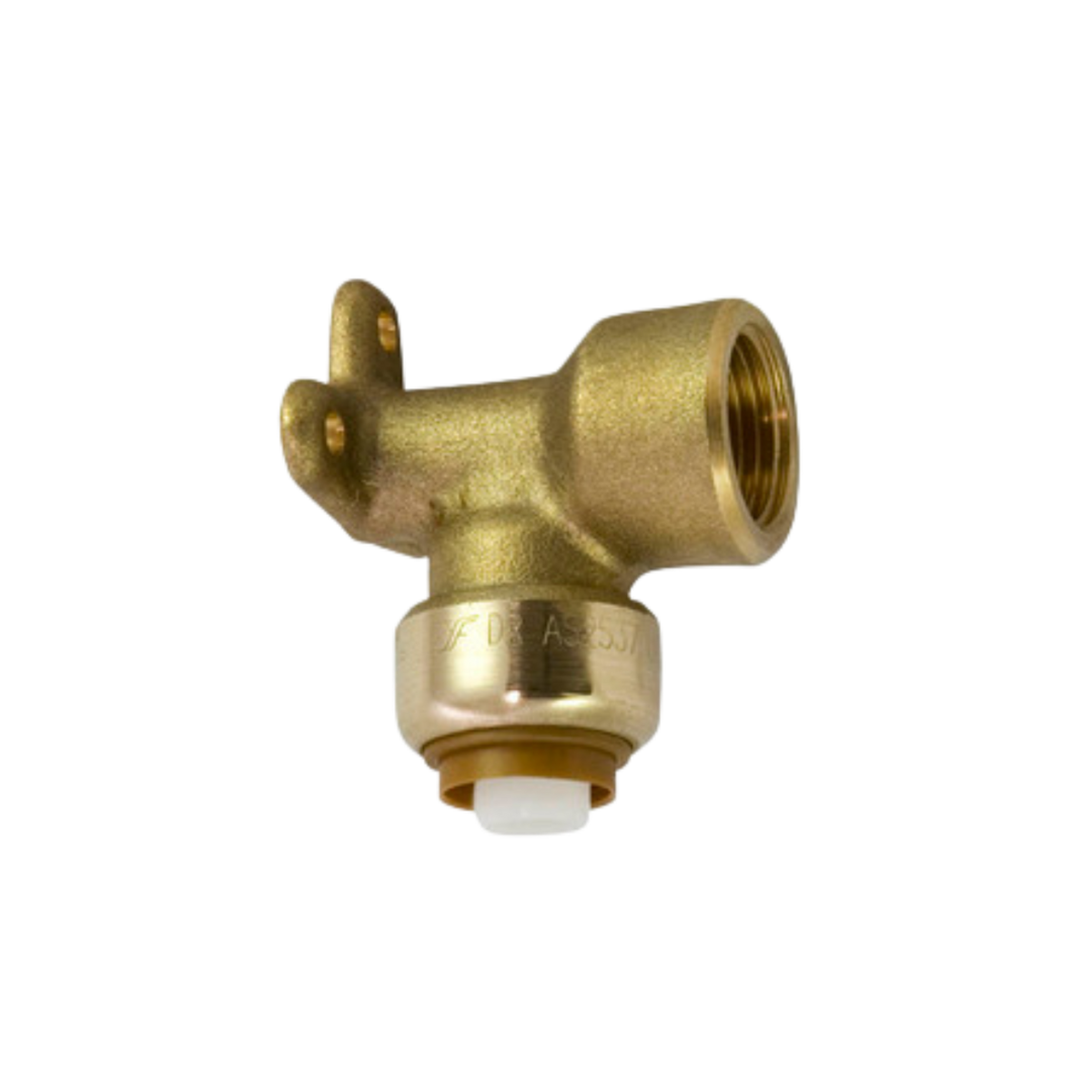

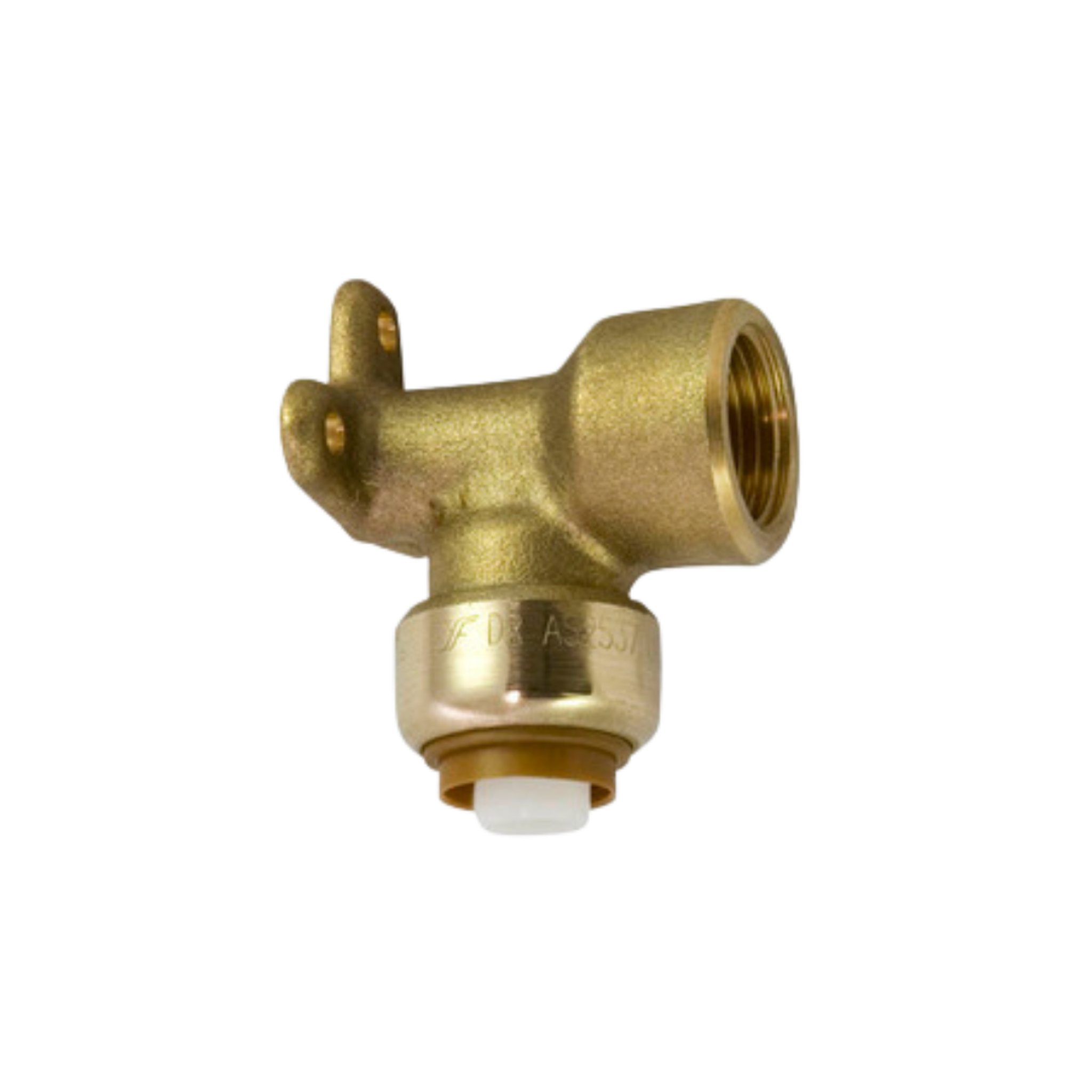

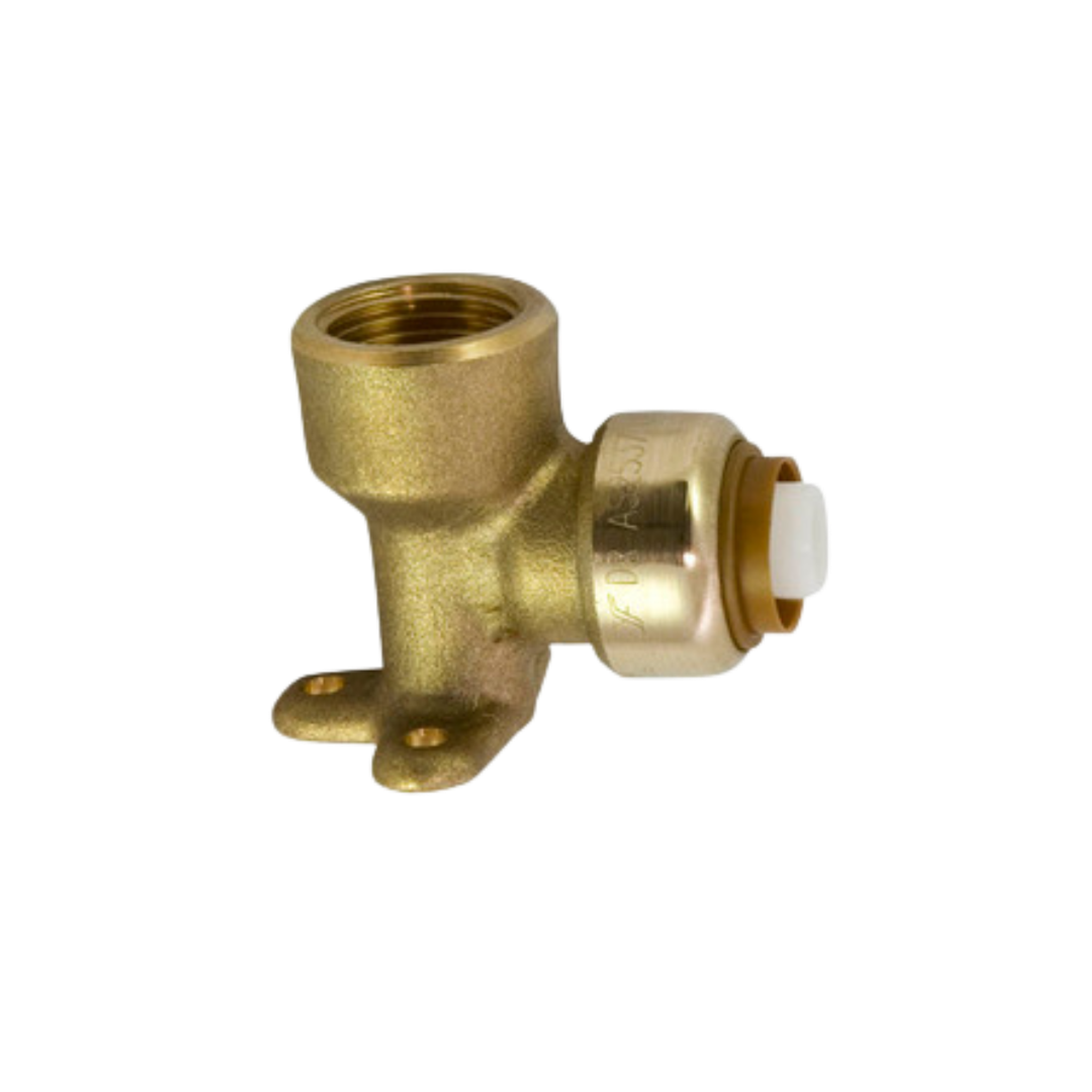

SharkBite® Female Lugged Elbow

SharkBite® Female Lugged Elbows are precision-engineered push-to-connect plumbing fittings manufactured in Australia at RWC’s state-of-the-art facilities. Designed for potable water distribution, these elbows provide a reliable, easy-to-install solution for connecting PEX and copper pipes without soldering, clamps, unions, or glue. With over 200 fittings and PEX pipe sizes ranging from 16–25mm, SharkBite® ensures a dependable and versatile plumbing system.

The lug design allows the fitting to be secured to wood or metal, providing added stability during installation. These fittings are removable and reusable, making adjustments simple, and are approved for behind-the-wall applications.

Features & Benefits:

• Quick, push-to-connect installation in wet or dry conditions
• No expensive tools required; supplied ready for installation
• Removable and reusable after installation
• Integral tube liner for PEX fittings ensures a secure, leak-free connection
• Approved for behind-the-wall applications
• Reliable and durable connection for both PEX and copper pipes

Materials:

Body: LF DZR Brass

• Grab Ring: 316 Stainless Steel
• O-Ring: EPDM
• Tube Liner: Polysulfone (PEX fittings only)

Variants Available:

• SYF334 — 16mm PEX x 12mm Female Thread
• SYF340 — 20mm PEX x 20mm Female Thread
