Grundfos Circulator Pump UPS20-60N

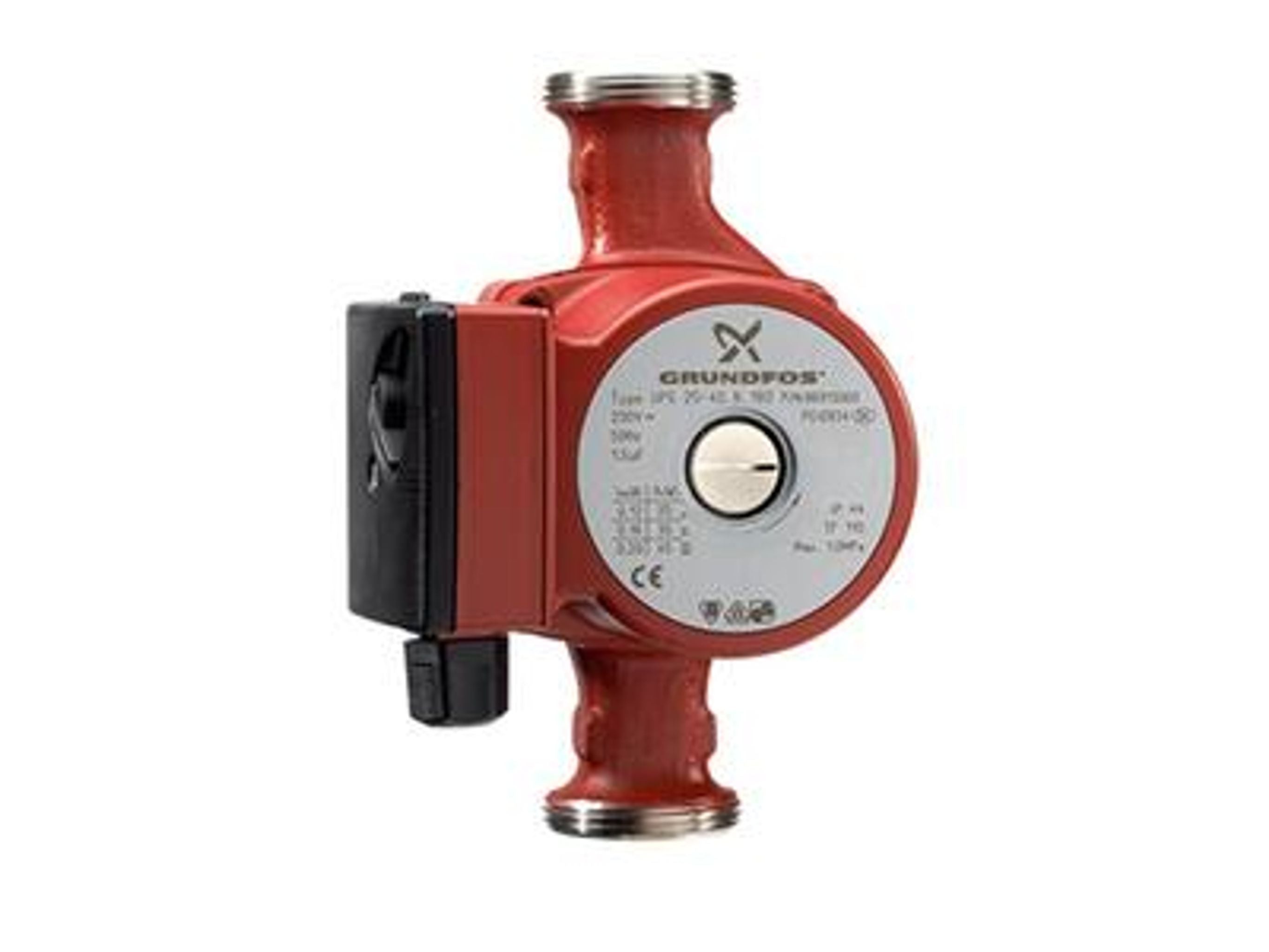

Grundfos UPS 20-60 N 150 Three Speed Stainless Steel Hot Water Circulator – 96913096

The pump is of the canned rotor type, i.e. pump and motor form an integral unit without shaft seal and with only two gaskets for sealing. The bearings are lubricatd by the pumped liquid. The pump has 3-step speed selector. The pump is characterized by:

Ceramic shaft and radial bearings.
Carbon axial bearing.
Stainless steel rotor can and bearing plate.
Corrosion-resistant impeller, Composite.
Stainless steel pump housing.
The motor is a 1-phase motor. No additional motor protection is required.

Suitable for

Basement
Kitchen
Living space

The Grundfos UPS 20-60 N 150 is an ultra quiet, compact domestic circulation pump, designed to pump hot water around the home, making it instantly available for taps in the bathroom, kitchen or anywhere hot water is required.

• Instant hot water at the tap – As circulators provide instant hot water at the tap (with return line), they can save hundreds of litres per year from going down the drain while you wait for hot water to arrive from your hot water system
• Adjustable pressure modes – Comes with a built-in 3 speed controller which allows you adjust the pressure to showers or tap as required
• Hygienic, stainless steel construction throughout
• Quiet operation – Very quiet operation that won’t disturb your family

The UPS 20-60 N 150 is a compact, high-performance circulator pump, designed for heating and domestic hot water systems. It features a sealed, canned-rotor design that integrates the pump and motor as a single unit—eliminating the need for a shaft seal and simplifying maintenance.

Key Features

• Canned rotor design with only two sealing gaskets
• Ceramic shaft and radial bearings
• Carbon axial bearing for durability
• Stainless steel rotor can and bearing plate
• Corrosion-resistant composite impeller
• High-grade stainless steel pump housing
• 3-speed manual selector for adjustable flow
• Energy-efficient operation with low power consumption
• Quiet performance suitable for residential use

Liquid Specifications

• Pumped Medium: Water
• Temperature Range: 2 °C to 110 °C
• Selected Operating Temp: 60 °C
• Density: 983.2 kg/m³

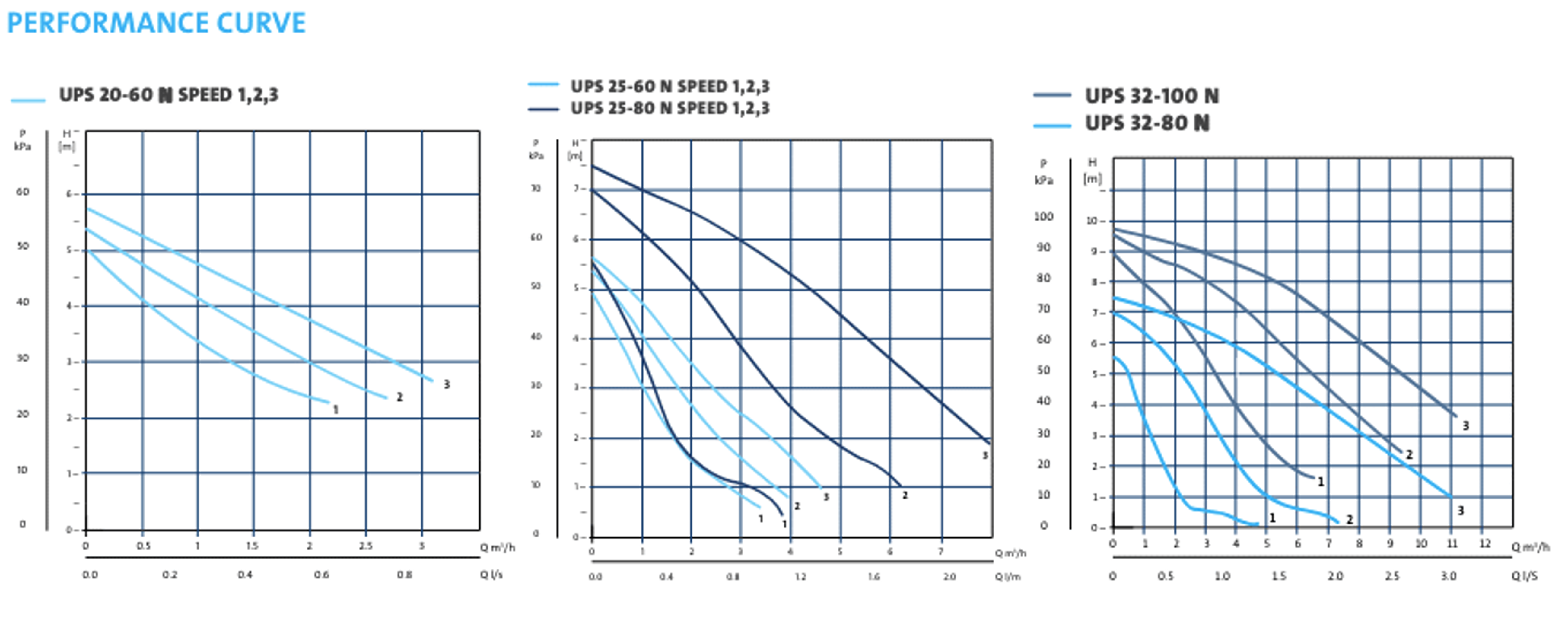

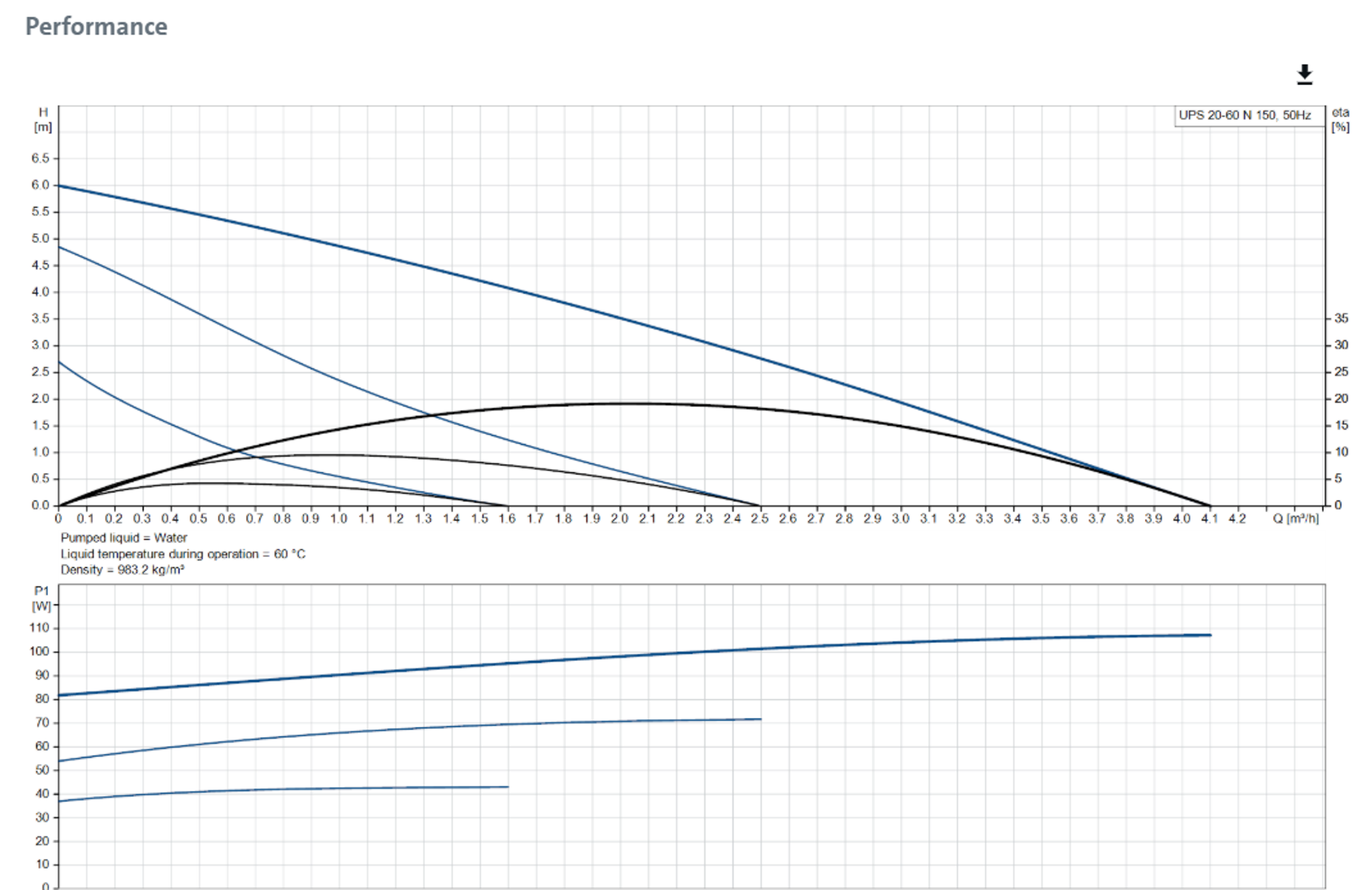

• Performance
  Rated Flow: 2.03 m³/h
• Rated Head: 3.473 m
• TF Class: 110
• Certifications: CE, EAC, WEEE, RCM

Materials

• Pump Housing: Stainless Steel (EN 1.4308)
• Impeller: Composite (PES + 30% Glass Fiber)

Installation

• Ambient Temperature Range: 0 °C to 40 °C
• Max Ambient (at 80 °C liquid): 40 °C
• Max Operating Pressure: 10 bar

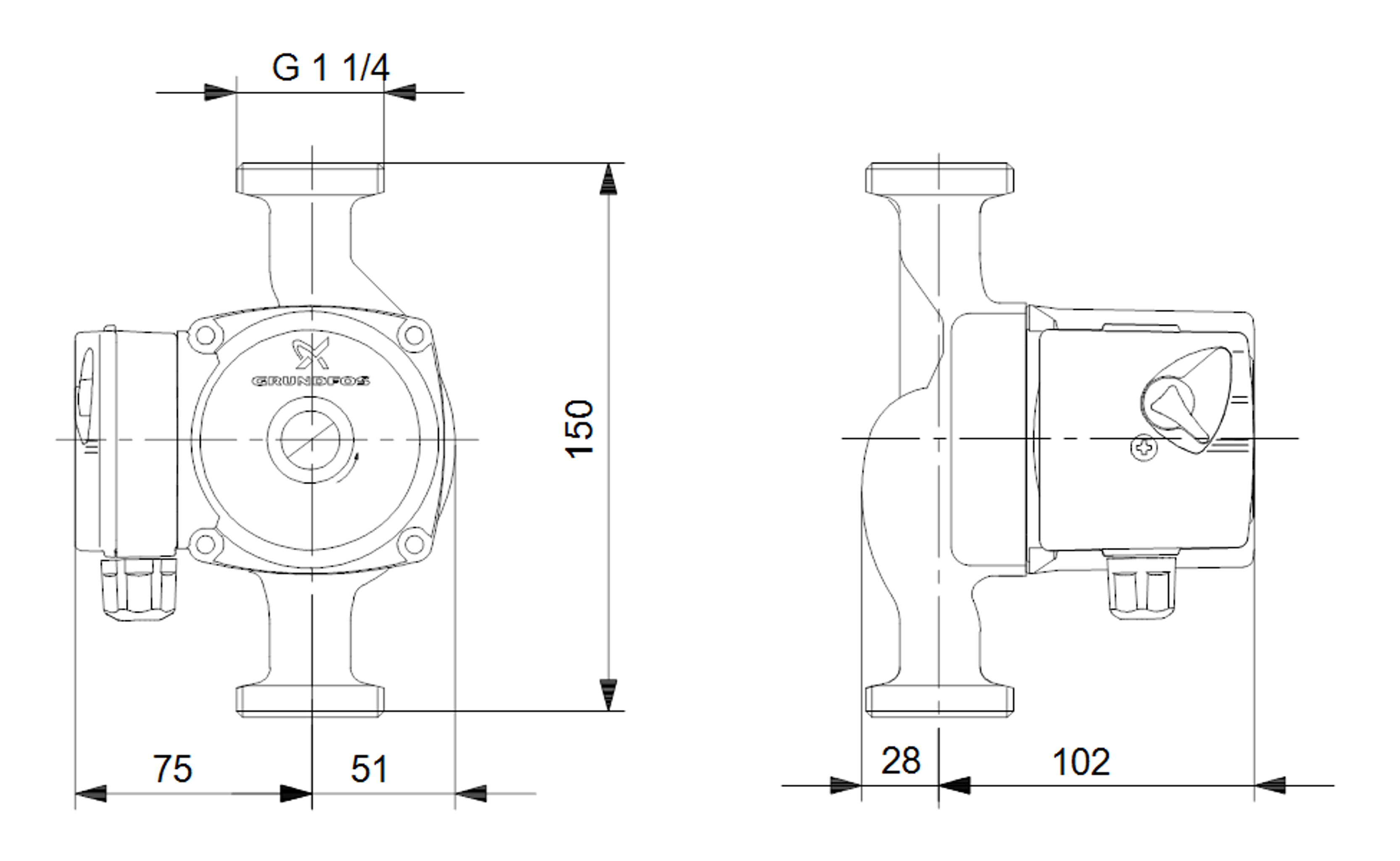

• Pipe Connection: G 1 1/4 inch (ISO 228-1)
• Connection Pressure Rating: PN 10
• Port-to-Port Length: 150 mm

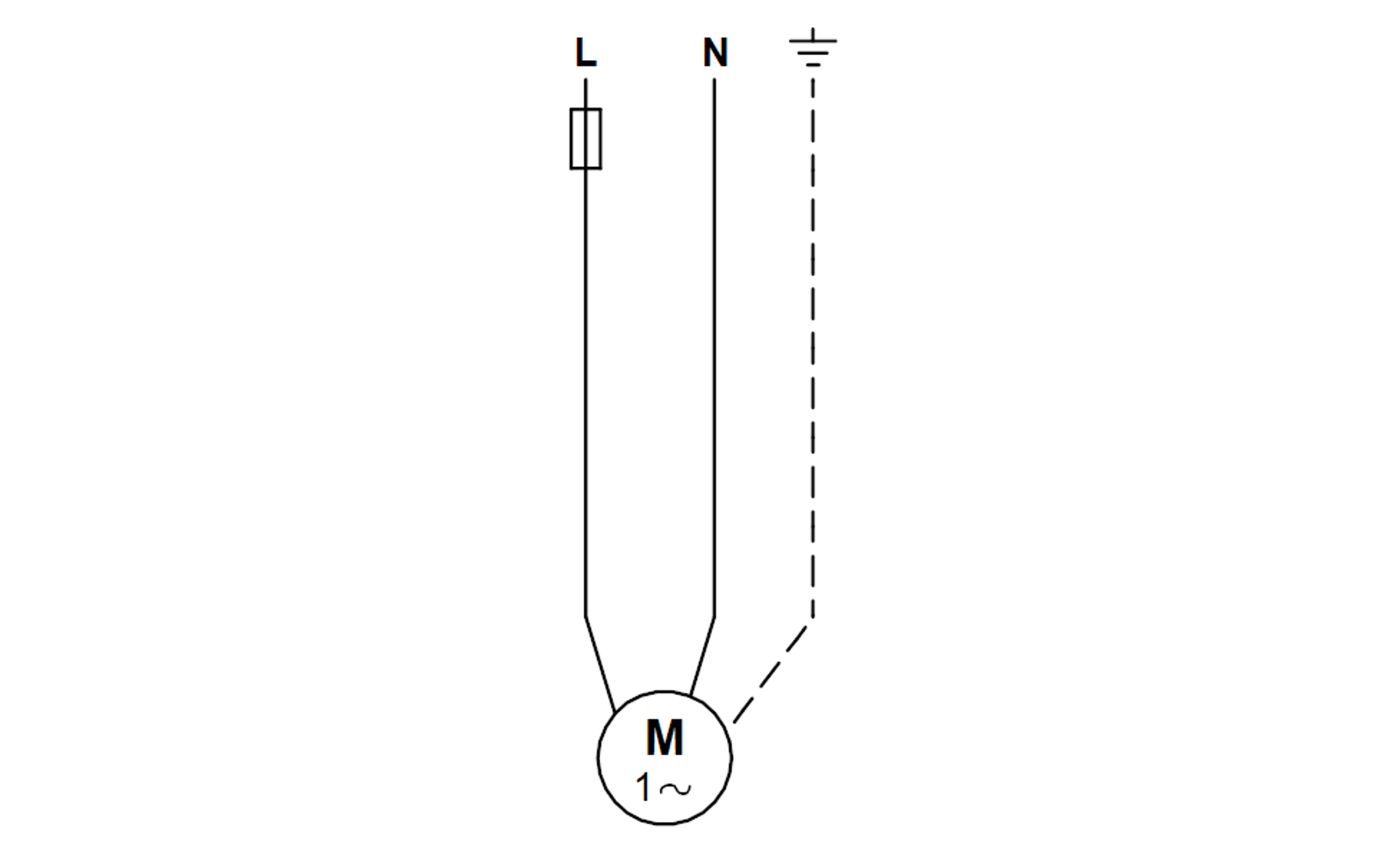

Electrical Specifications

• Power Input (Speed 1): 35 W
• Power Input (Speed 2): 60 W
• Max Power Input: 90 W
• Voltage: 1 x 240 V
• Frequency: 50 Hz
• Current Draw:
• Speed 1: 0.15 A
• Speed 2: 0.25 A
• Speed 3: 0.37 A
• Capacitor: 2 µF
• Enclosure Class: IP44
• Insulation Class: F
• Explosion Protection: None

Additional Details

• Terminal Box Position: 9H
• Net Weight: 2.9 kg
• Gross Weight: 3.2 kg
• Shipping Volume: 0.004 m³
