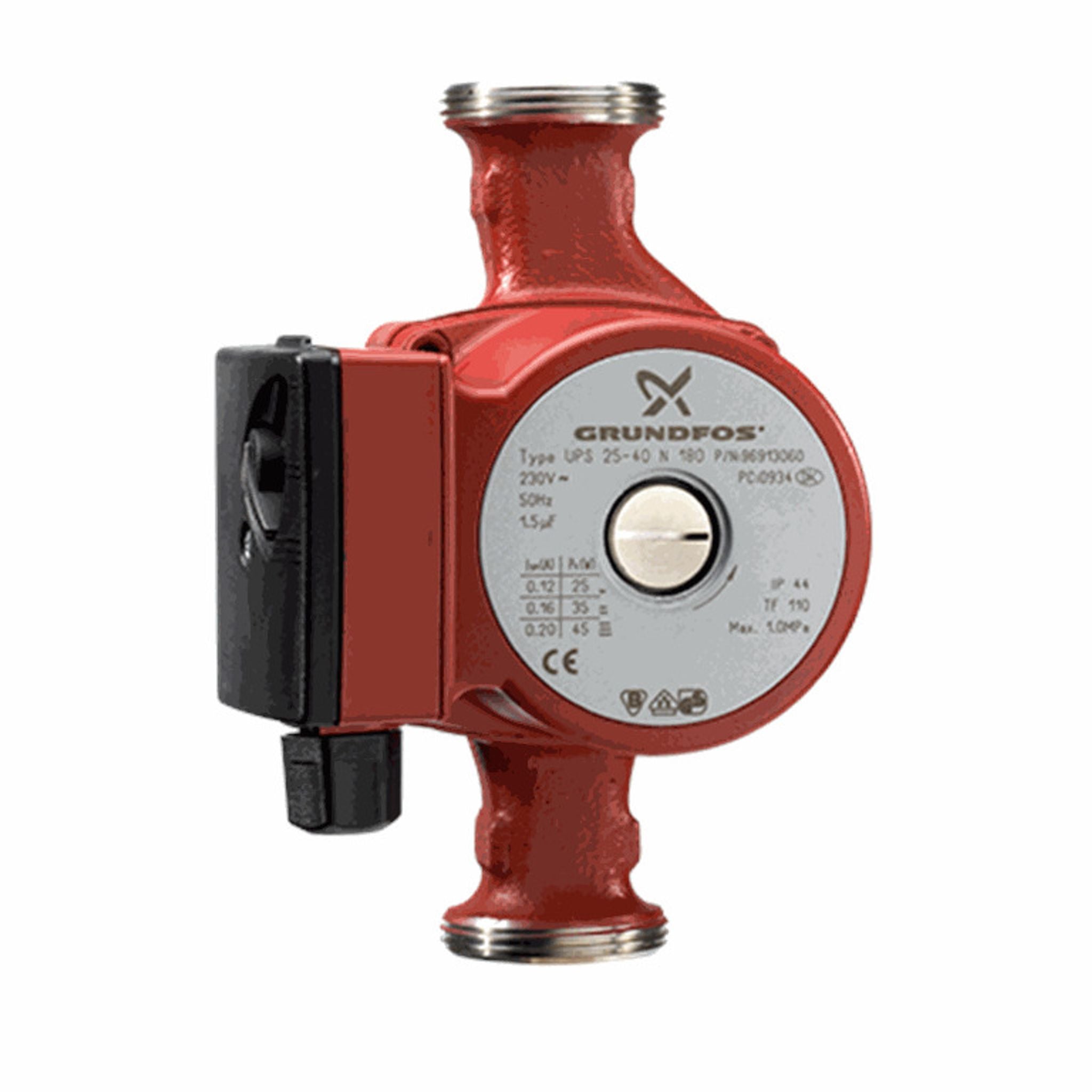

Grundfos Circulator Pump UPS25-60N

Overview
The UPS 25-60 N 180 is a canned rotor-type circulator pump, meaning the pump and motor form an integral unit without a shaft seal and with only two gaskets for sealing. The bearings are lubricated by the pumped liquid, and the pump includes a 3-step speed selector for optimal performance.

Suitable for
Commercial heating
Domestic hot water recirculation
Grundfos UP, UPS N circulator pumps have a corrosion-free stainless-steel pump housing and are recommended for domestic hot-water recirculation and underfloor heating systems. UP, UPS N can be connected to an on/off time switch to limit pump operation to periods when hot water is usually required.

Key Features

• Ceramic shaft and radial bearings
• Carbon axial bearing
• Stainless steel rotor can and bearing plate
• Corrosion-resistant composite impeller
• Durable stainless steel pump housing
• No additional motor protection required (single-phase motor)

Liquid Handling

• Pumped Liquid: Water
• Temperature Range: 2 °C to 110 °C
• Selected Temperature: 60 °C
• Liquid Density: 983.2 kg/m³

Performance Data

• Rated Flow: 1.91 m³/h
• Rated Head: 3.1 m
• TF Class: 110
• Approvals: CE, VDE, EAC, WEEE, RCM

Material Specifications

• Pump Housing: Stainless Steel (EN 1.4308)
• Impeller: Composite (PES + 30% Glass Fiber)

Installation Details

• Ambient Temperature Range: 0 °C to 40 °C
• Max Ambient Temp at 80 °C Liquid: 40 °C
• Max Operating Pressure: 10 bar
• Pipe Connection Standard: ISO 228-1
• Connection Type & Size: G 1½"
• Pressure Rating: PN 10
• Port-to-Port Length: 180 mm

Electrical Specifications

• Power Input (Speed 1): 50 W
• Power Input (Speed 2): 55 W
• Max Power Input: 60 W
• Mains Frequency: 50 Hz
• Voltage: 1 x 230 V
• Current Draw (Speeds 1–3): 0.21 A, 0.25 A, 0.28 A
• Capacitor: 2.5 µF
• Enclosure Class: IP44
• Insulation Class: F
• Explosion Protection: None

Additional Information

• Terminal Box Position: 9H
• Net Weight: 2.86 kg
• Gross Weight: 2.97 kg
• Shipping Volume: 0.004 m³
• Danish VVS No.: 380481061
• Swedish RSK No.: 5803097
• Finnish LVI No.: 4615616
