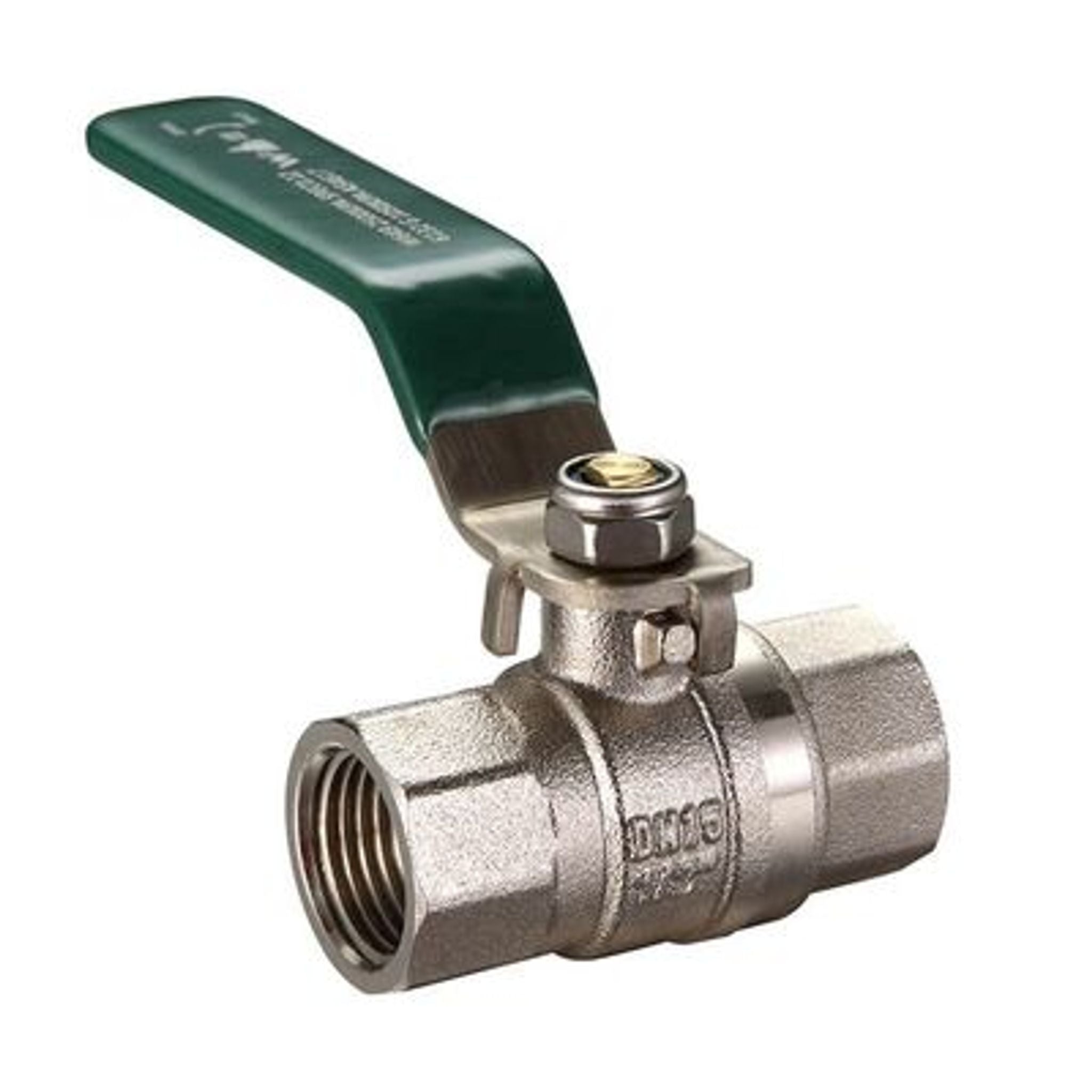

Lever Ball Valve FF Water/Gas

Lever Ball Valve FF Water/Gas
Variants available from 12mm to 100mm

These high-quality ball valves feature forged DZR brass bodies and Teflon-seated balls, making them fully compliant with AGA and DZR standards for both potable water and gas applications. Equipped with female BSP fittings on each end and easy-to-use 90° lever handles, they deliver reliable, long-lasting performance across a wide size range.

Features & Benefits

• Forged DZR brass body for enhanced corrosion resistance
• Compliant with gas standards and WaterMark certification
• Teflon-seated ball ensures smooth quarter-turn operation and tight shutoff
• Robust lever handle for quick, precise flow control
• Available in sizes 12mm to 100mm to fit diverse plumbing needs
• Durable construction designed for long service life

Technical Specifications

• Temperature Range: -20°C to 100°C
• Maximum Operating Pressure: 2100 kPa
• Gas Operating Pressure per AS 5601 Table 4.1: 200 kPa for copper piping systems
• Female BSP threaded connections at both ends
• Chrome-plated for added durability and corrosion resistance

Product Overview

The lever ball valve operates via a hollow, perforated ball that pivots to control flow—handle aligned with flow when open and perpendicular when closed—offering a clear visual status. These valves are highly durable, maintaining reliable shutoff even after extended periods of inactivity. Ideal for isolation and shutoff duties, they perform comparably to gate and globe valves but are not recommended for fine throttling control.

Note: Ball valves can trap water inside the cavity when closed. In freezing conditions, this trapped water may expand and cause cracking. Proper insulation or heat tape is recommended to prevent freeze damage.

The Lever Ball Valve FF Water/Gas is the perfect choice for safe, efficient flow control in both residential and commercial water and gas systems.
