Sharkbite Male Lugged Elbow

SharkBite® Male Lugged Elbow (BSP Male Extended, 19BP)

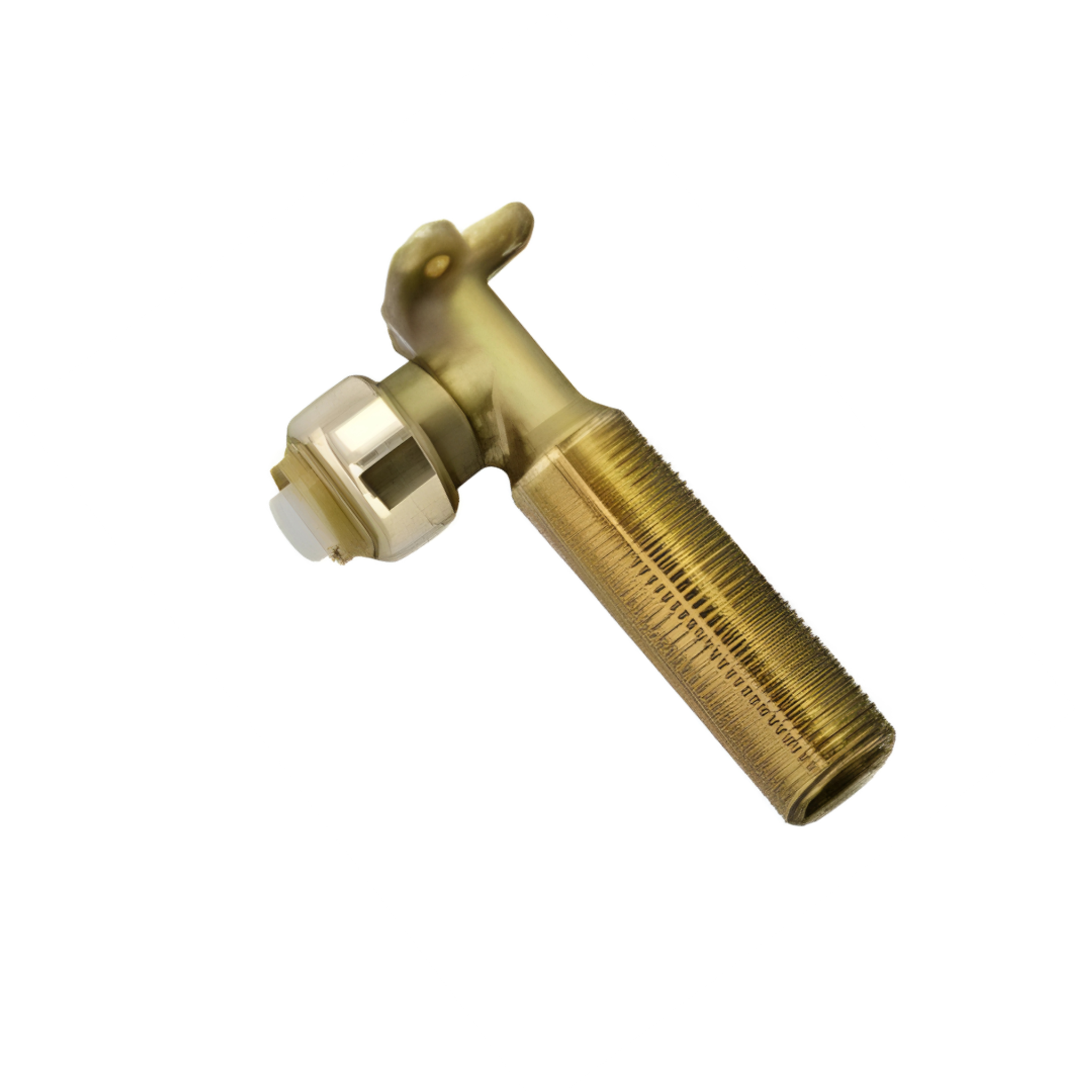

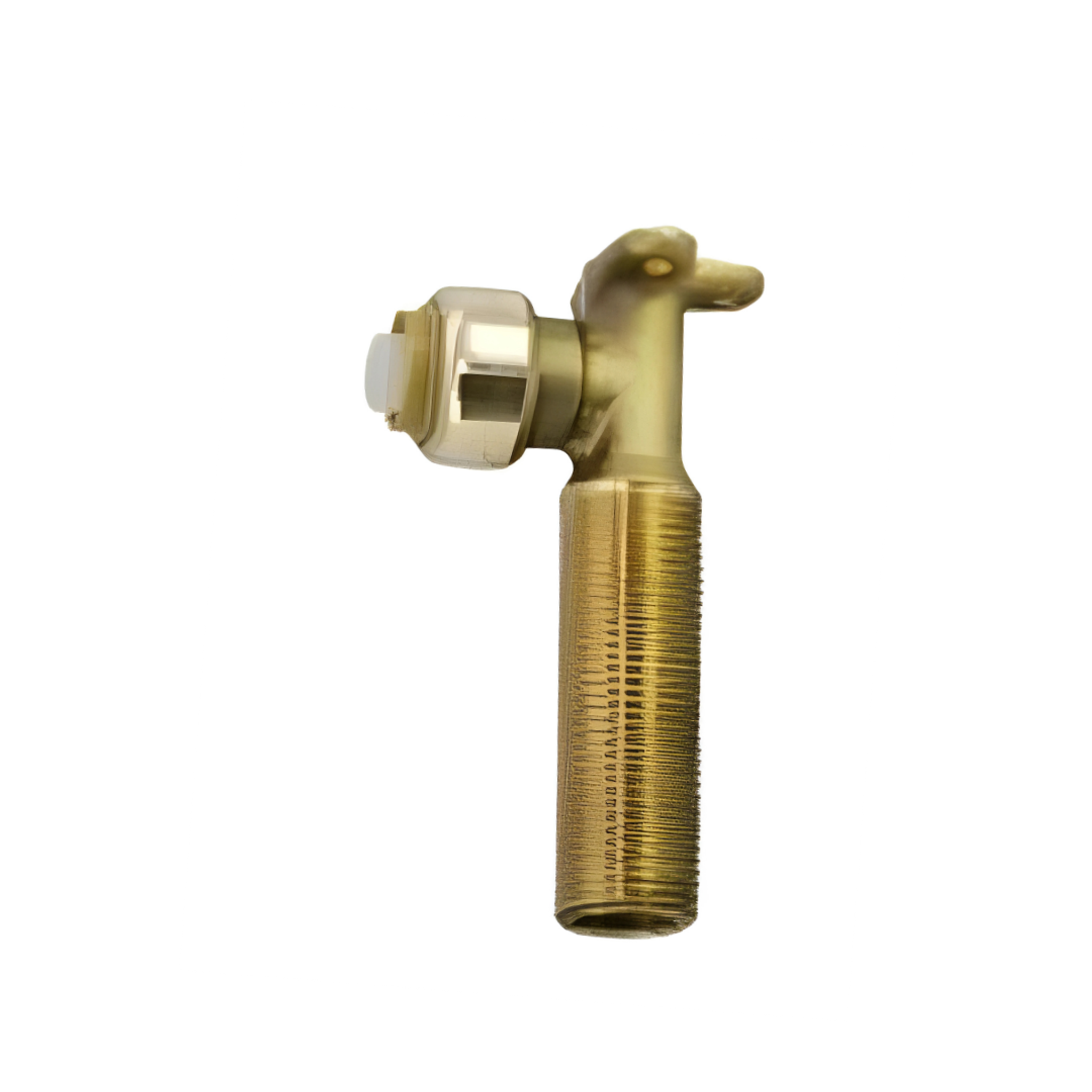

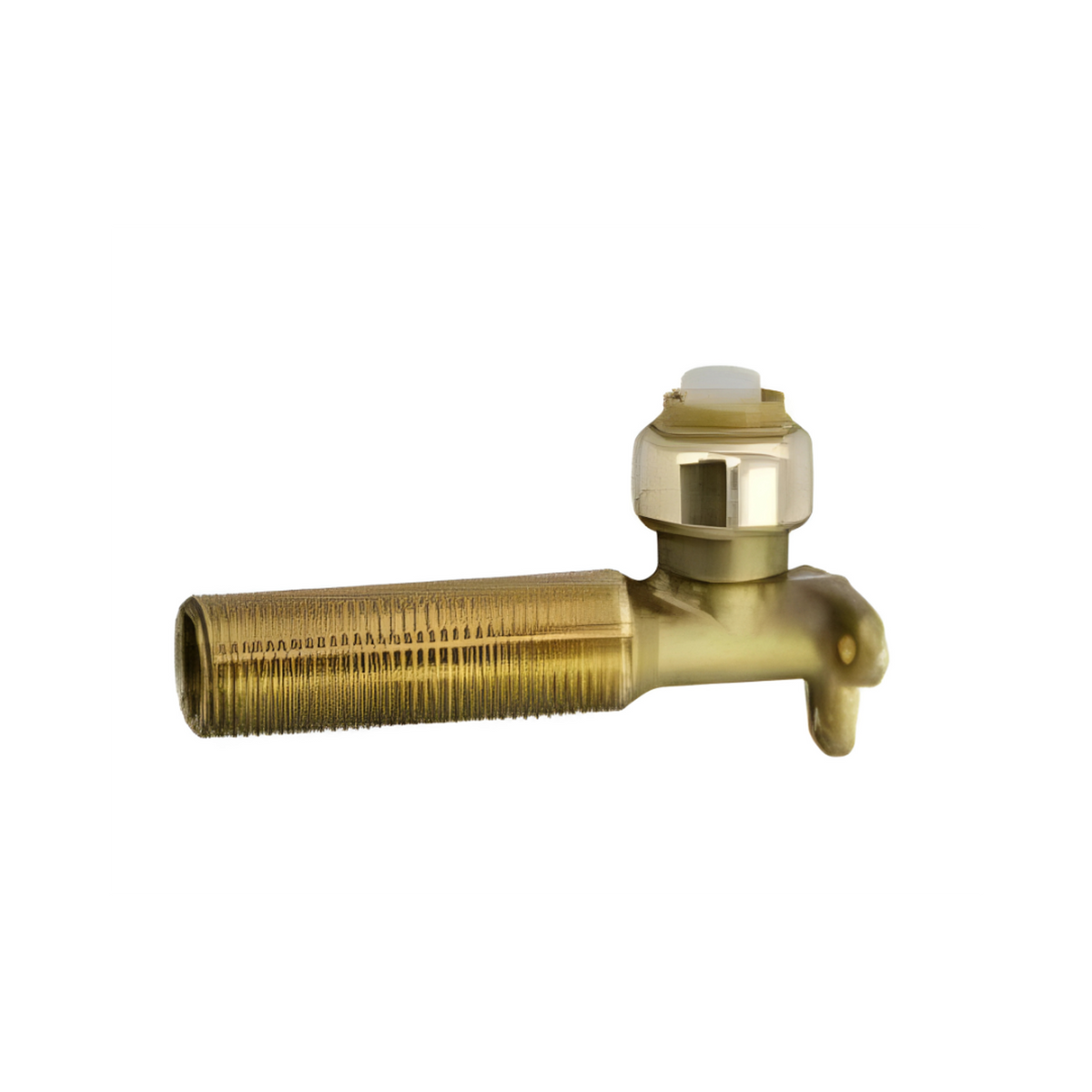

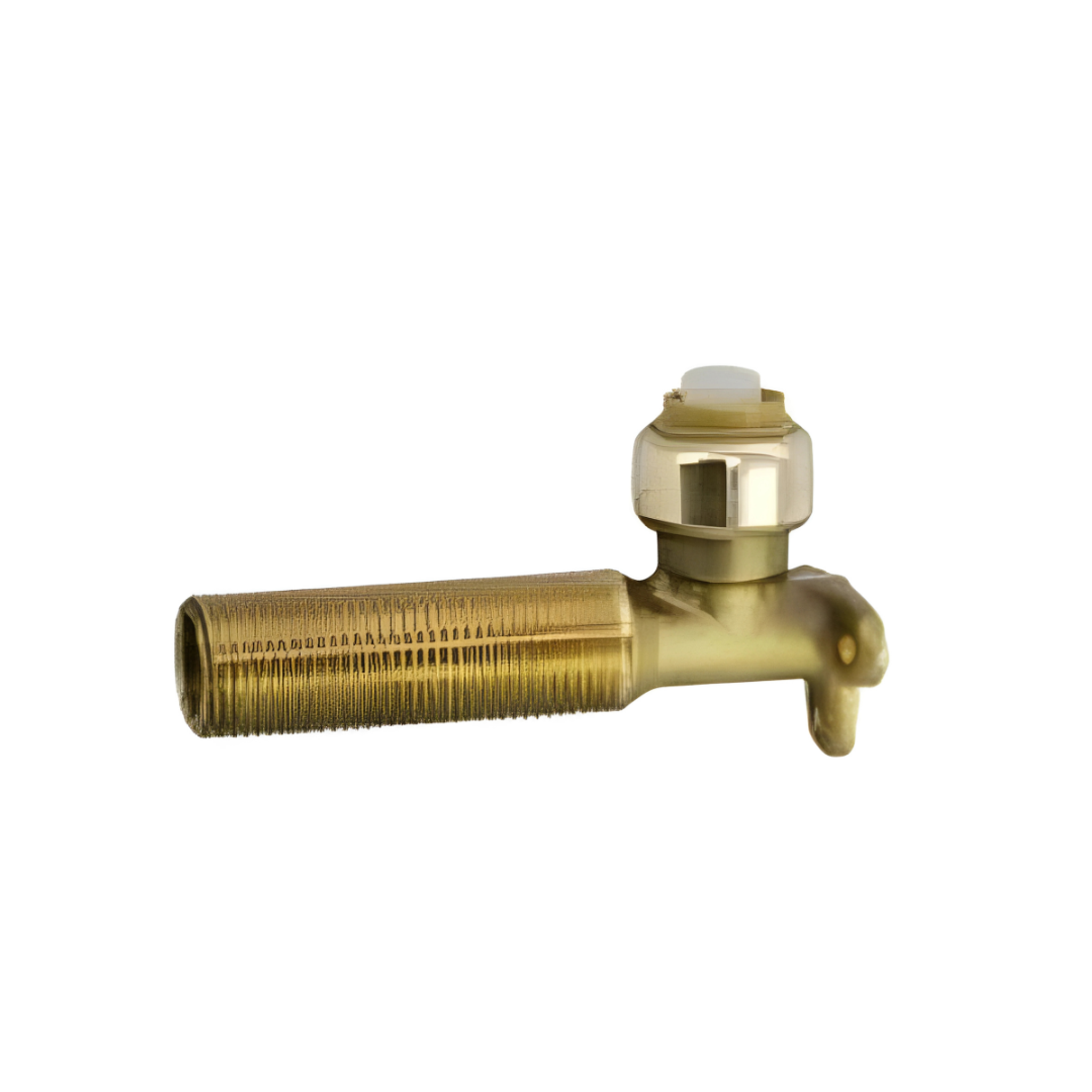

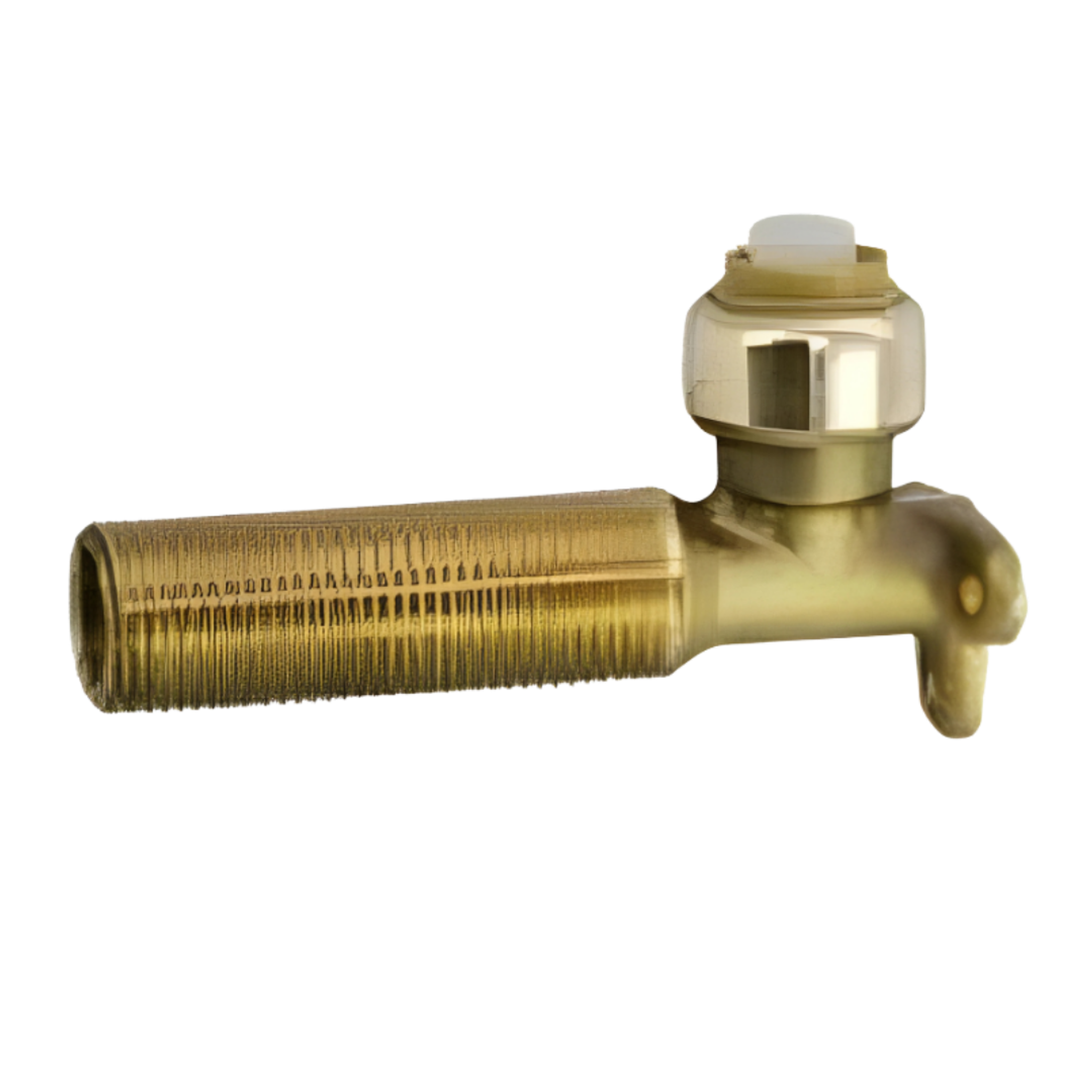

The SharkBite® Male Lugged Elbow is designed to adapt SharkBite® PEX pipe to BSP fittings via a male extended thread at a 90° angle. Also known as Yorkflex or SharkBite 19BP, this fitting features a lug for secure attachment to wood or metal, holding the fitting in place during installation.

Made from solid forged DZR brass, the lugged elbow is durable, corrosion-resistant, and compliant with Australian standards. It provides a secure push-to-connect installation with no need for soldering, clamps, unions, or glue. The integral tube liner ensures a reliable seal for PEX pipes, and fittings can be rotated after assembly to allow installation in tight spaces.

Key Features:

• Adapts SharkBite® PEX pipe to BSP fittings at a 90° angle
• Lug for secure attachment to wood or metal
• Dependable push-to-connect system for quick installation
• Reusable and rotatable fittings for flexibility
• Solid forged DZR brass body for strength and corrosion resistance
• Certified to AS/NZS2537 and AS/NZS4020 standards
• Approved for potable water, hydronic heating, underground use, and behind walls
• Working pressure: 1600 kPa at 20°C / 800 kPa at 95°C
• Compatible with various plastic systems and copper using conversion connections

Variants Available:

SYF350 — 16 PEX x 12mm Dr

• SYF352 — 16 PEX x 12mm x 100 Dr Extended Male
• SYF351 — 16 PEX x 12 MI x 185 Dr Extended Male
• SYF356 — 20 PEX x 15 MI x 100 Dr Extended Male
• SYF354 — 20 PEX x 20 MI x 185 Dr Extended Male
