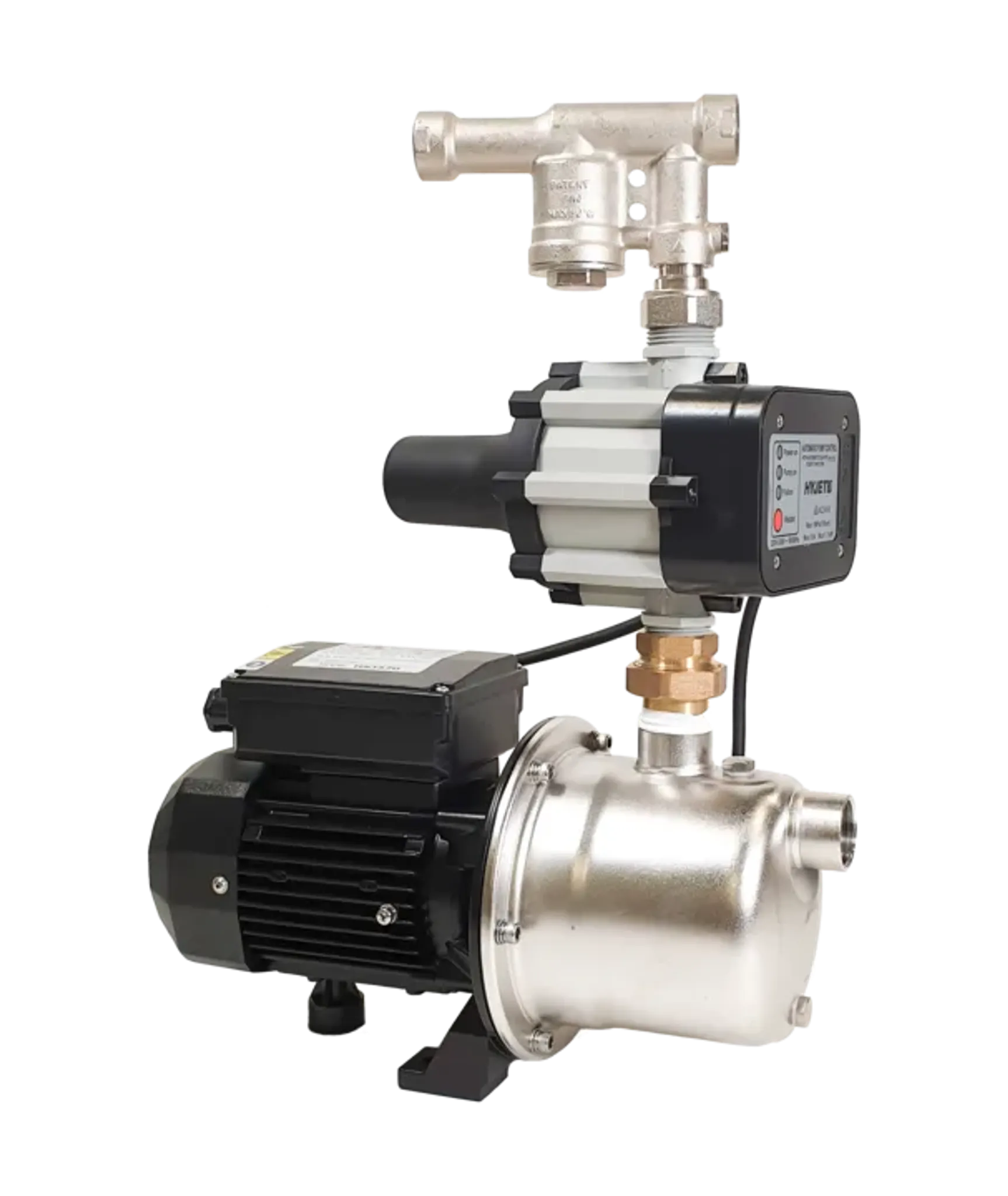

Maxijet Hyjet HSJ 550 Stainless Steel Jet Pump
The MHR20 series is a fully Automatic Hydraulic Rain / Mains water changeover device designed for pressure pump supply systems in harvesting rainwater for the toilet, laundry and household applications with automatic mains backup. MHR20 valve is designed to operate with an electronic pressure controller with auto-restart not requiring a float switch. MHR20 valve comes with 20mm 3/4” outlet, which makes the system ideal for domestic applications simple to install.
Domestic Application: Double Story House. Power (kW) 0.55. Head (M) 38. Flow (Lpm) 70. Outlets (4)
CONSTRUCTION: HSJ550 Pressure Pump.
Pump body: AISI 304 Stainless steel. Impeller: Stainless steel. Motor Shaft: Stainless steel. Mech Seal: Ceramic / Graphite / NBR
VALVE SPECIFICATIONS
Max mains pressure 500 Kpa. Max pump pressure 600 Kpa. Flow rate >50 LPM. Max Water Temperature 40C
Rainwater Inlet 25mm 1” BSP Female. Mains Water in 20mm 3/4” BSP Female. Outlets 20mm 3/4” BSP Female
Certified to: WaterMark ATS 5200.477 WMK 60075 Complies with AS/NZS 3500.1 when installed by a licensed plumber.
Note: Should the static mains supply be greater than 400 kPa above the supply pressure of the pump the device will not completely isolate mains water.
