Performance Range
Flow rate up to 60 l/min (4.23m³/h)
Head up to 60m
Installation and Use

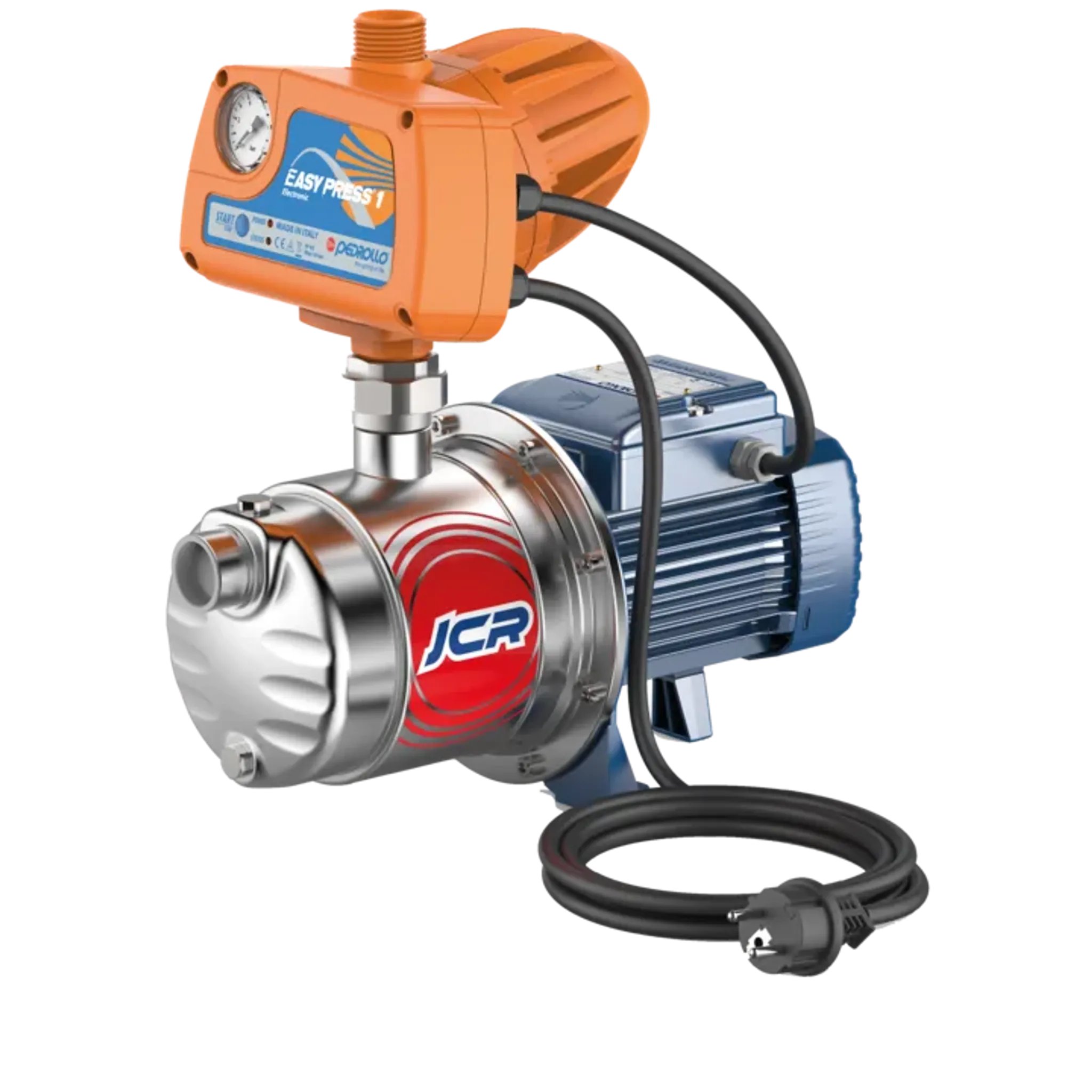

JCRM-1A-EP1 self-priming pump is designed to draw water and liquids that contain air. This pump includes an Easy press 2 pressure controller.
They are reliable and easy to operate. They are a favourite for domestic use, particularly effective for water distribution with small to medium-sized tanks, and suitable for irrigation.
Application Limits
Manometric suction head up to 9m (HS)
Liquid temperature between -10ºC and +40ºC
Ambient temperature up to +40ºC
Maximum working pressure 6 bar
Materials and Components
Pump Body: Stainless steel AISI304, provided with ISO 228/1 threaded ports
Cover: Stainless Steel AISI304
Ejector Unit: Noryl
Impeller: Stainless Steel AISI304
Mechanical Seal:
Water Pump Seal Shaft Materials
JCR1 AR-12 ø12mm Ceramic/Graphite/NBR
Motor Shaft: Stainless Steel AISI431
Electric Motor:single phase 230V-50Hz with winding integrated thermal motor protection
Insulation: Class F
Protection Rating: IP X4
