Poly Metric Straight Coupling

Poly Metric Straight Coupling

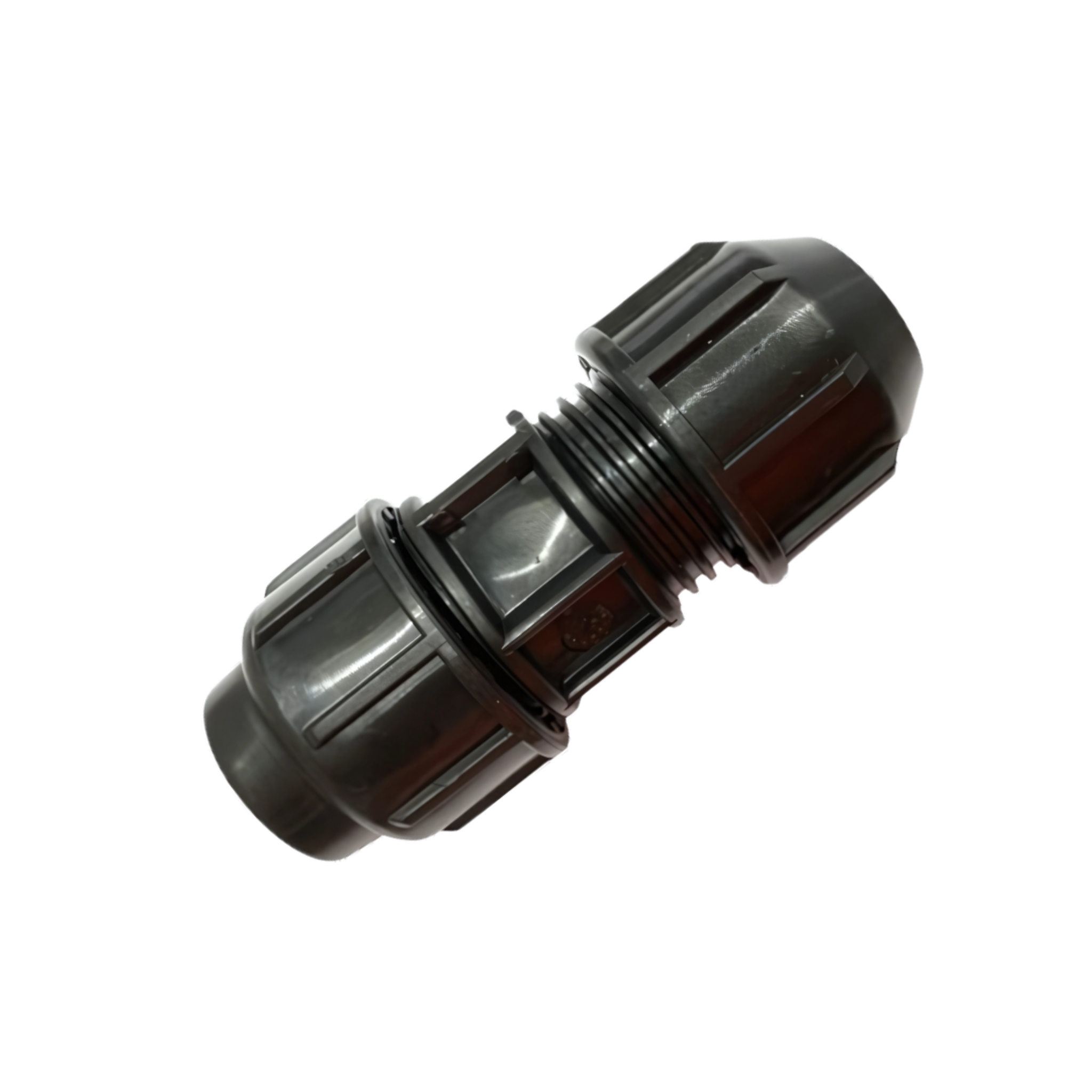

The Poly Metric Straight Coupling is a reliable compression fitting designed to securely connect two equal-sized polyethylene (PE) pipes. Ideal for both residential and commercial plumbing as well as irrigation applications, this coupling delivers a strong, watertight seal that ensures dependable long-term performance.

Manufactured from high-quality polyethylene, the coupling offers excellent resistance against chemicals, corrosion, and UV exposure, making it suitable for demanding Australian conditions. With a simple screw-grip compression mechanism and O-ring seal, installation is quick, secure, and leak-free—no adhesives or special tools required.

Key Features:

• Strong and durable black PE construction for long-lasting performance.
• Equal-size connection joins two poly pipes of the same diameter.
• Compression fitting with O-ring ensures a secure, watertight seal.
• Excellent chemical, corrosion, and UV resistance for outdoor and indoor use.
• Complies with AS/NZS4129 & ISO14236 standards for PE pressure pipe systems.
• Certified to AS/NZS4020 for safe use in potable water applications.
• Rated PN16 (1600 kPa / 235 psi) for high-pressure systems.
• Easy installation – no glue, heat, or special tools required.

Note: A licensed plumber must be used if connecting to mains water supply.

Specifications:

• Material: High-strength polyethylene (PE)
• Working Pressure: Up to PN16 (1600 kPa / 235 psi)
• Size Range: 16mm – 110mm (recommended 25mm+)
• Applications: Domestic water supply, commercial plumbing, rural irrigation

Variants:

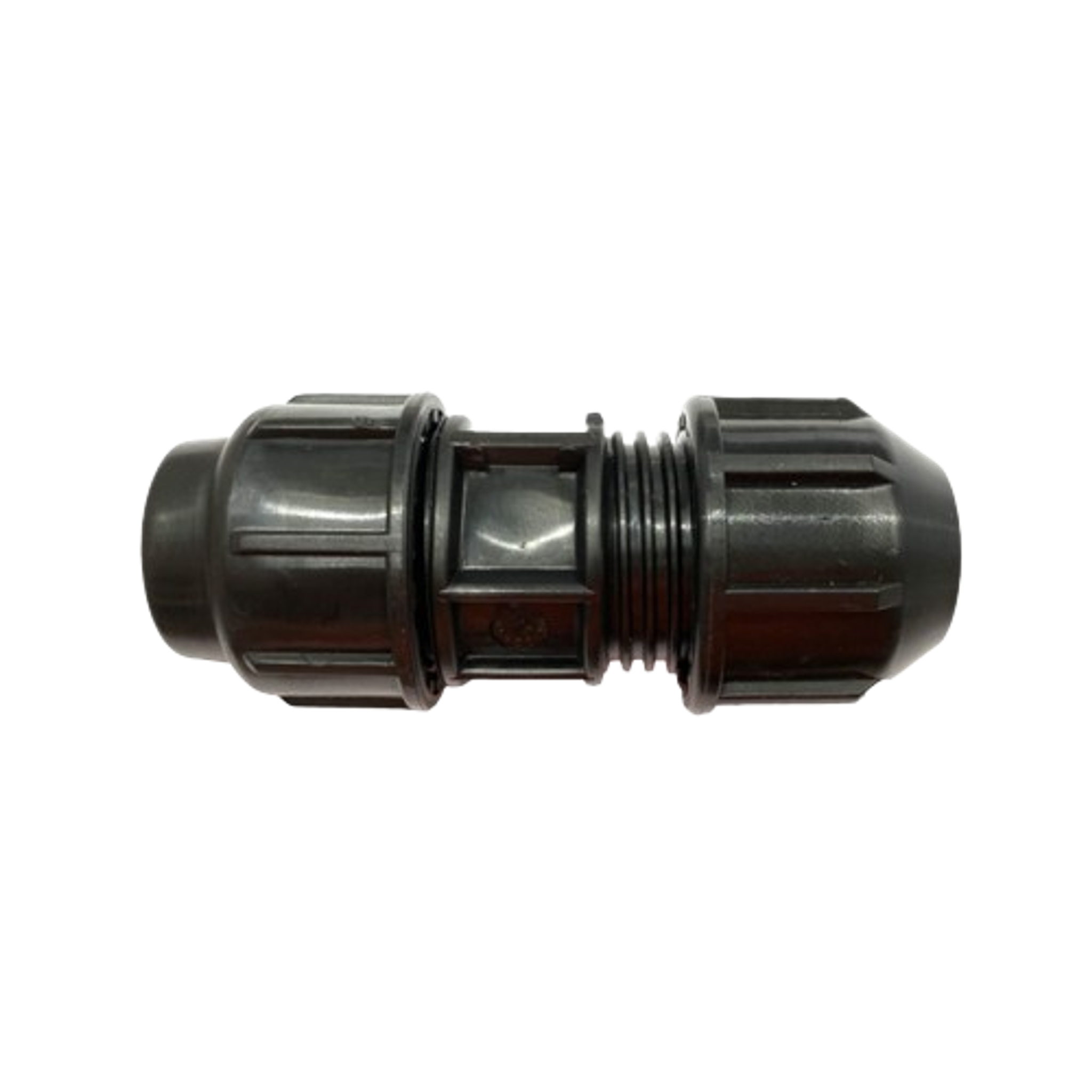

• PBM101 — Metric 7010 Coupling 20P x 20P (PUN)(EQ)
• PBM103 — Metric 7010 Coupling 25P x 25P (PUN)(EQ)
• PBM104 — Metric 7010 Coupling 32P x 32P (PUN)(EQ)
• PBM105 — Metric 7010 Coupling 40P x 40P (PUN)(EQ)
• PBM106 — Metric 7010 Coupling 50P x 50P (PUN)(EQ)
• PBM107 — Metric 7010 Coupling 63P x 63P (PUN)(EQ)
