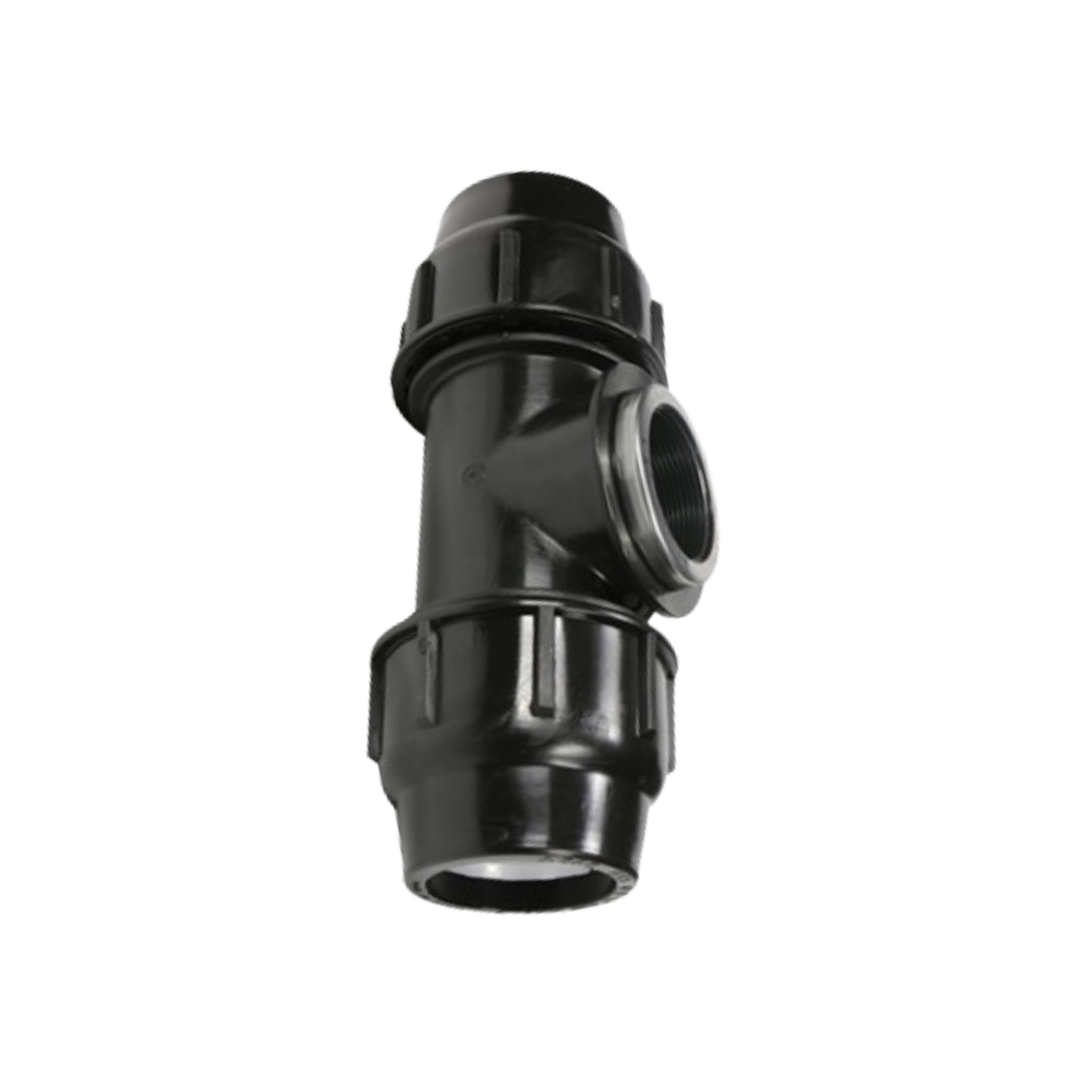

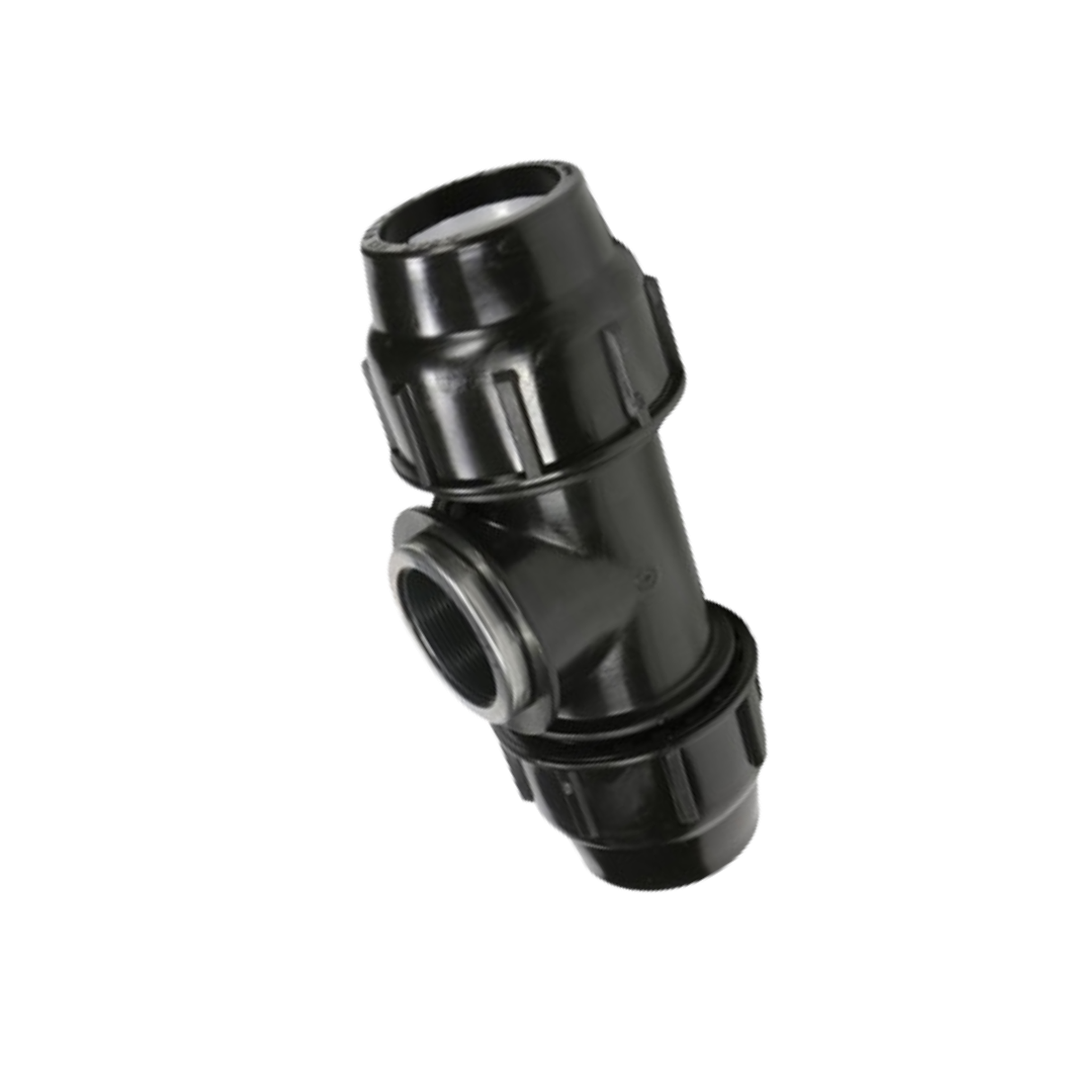

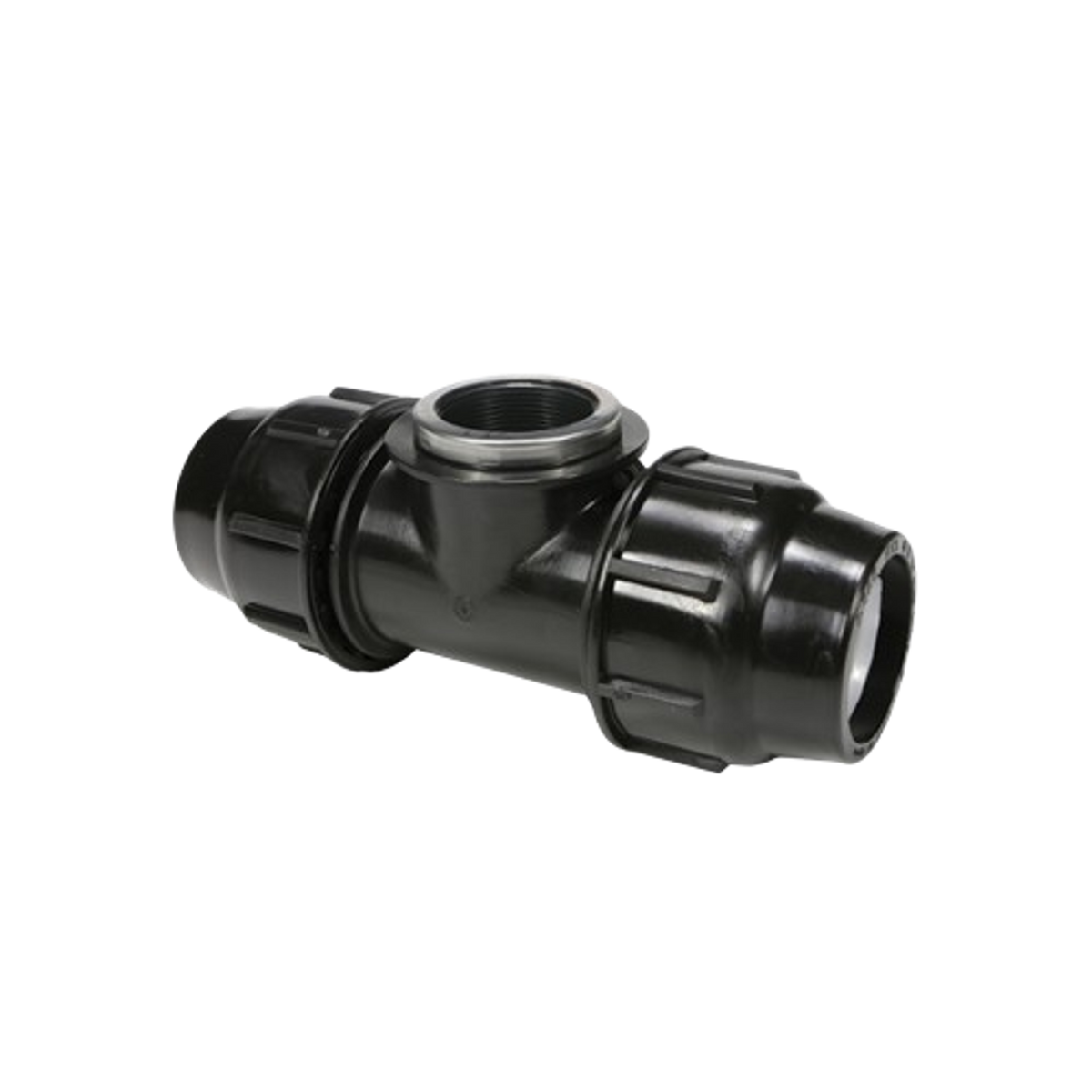

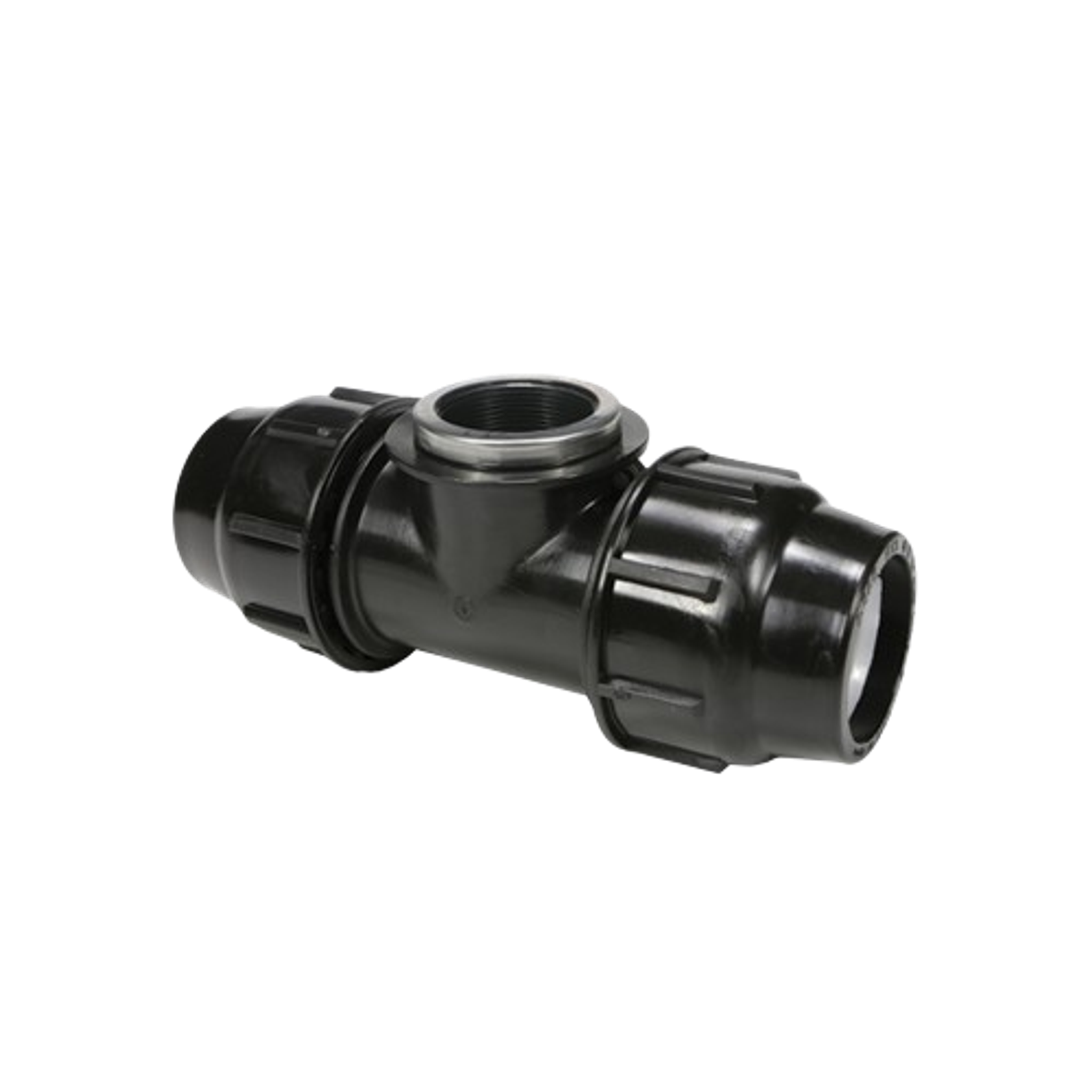

Poly Metric Female Tee

Poly Metric Female Tee

Black Polyethylene (PE) metric compression female threaded tee. This fitting is designed for branching poly pipe with a female threaded outlet, allowing connection to a male-threaded fitting (e.g., valves, taps, or other threaded components).

The tee uses a compression seal with an O-ring and gripping mechanism to ensure a leak-free, long-lasting joint. Manufactured from UV-stabilised, corrosion-resistant polyethylene, these fittings are ideal for high-pressure, outdoor, and potable water applications.

Key Features:

• Branch tee with female BSP thread on the branch outlet
• Simple compression connection with O-ring sealing
• Manufactured from high-quality, UV-stabilised PE
• Resistant to corrosion, chemicals, and direct sunlight
• Strong, durable and suitable for high-pressure water systems
• Approved for potable water applications

Specifications:

• Material: Black Polyethylene (PE)
• Standards:
  • AS/NZS4129 & ISO14236 – Polyethylene pressure pipe fittings
  • AS/NZS4020 – Certified safe for drinking water contact
• Size Range: 16mm – 110mm (commonly used from 25mm+)
• Pressure Rating: PN16 (1600 kPa / 235 psi)
• Applications: Domestic, irrigation, industrial, and rural pipelines
• Installation Note: Licensed plumber required for installations connected to mains water supply

Variants:

• PBM283 — Metric 7140 Tee Thread Female 20P x 20P x 12mm FI (FTE)
• PBM284 — Metric 7140 Tee Thread Female 20P x 20P x 20mm FI (FTE) (EQ)
• PBM286 — Metric 7140 Tee Thread Female 25P x 25P x 12mm FI (FTE)
• PBM285 — Metric 7146 Tee Thread Female 25P x 20P x 20mm FI (FTE)
• PBM287 — Metric 7140 Tee Thread Female 25P x 25P x 20mm FI (FTE)
• PBM288 — Metric 7140 Tee Thread Female 25P x 25P x 25mm FI (FTE) (EQ)
• PBM291 — Metric 7140 Tee Thread Female 32P x 32P x 20mm FI (FTE)
• PBM292 — Metric 7140 Tee Thread Female 32P x 32P x 25mm FI (FTE)

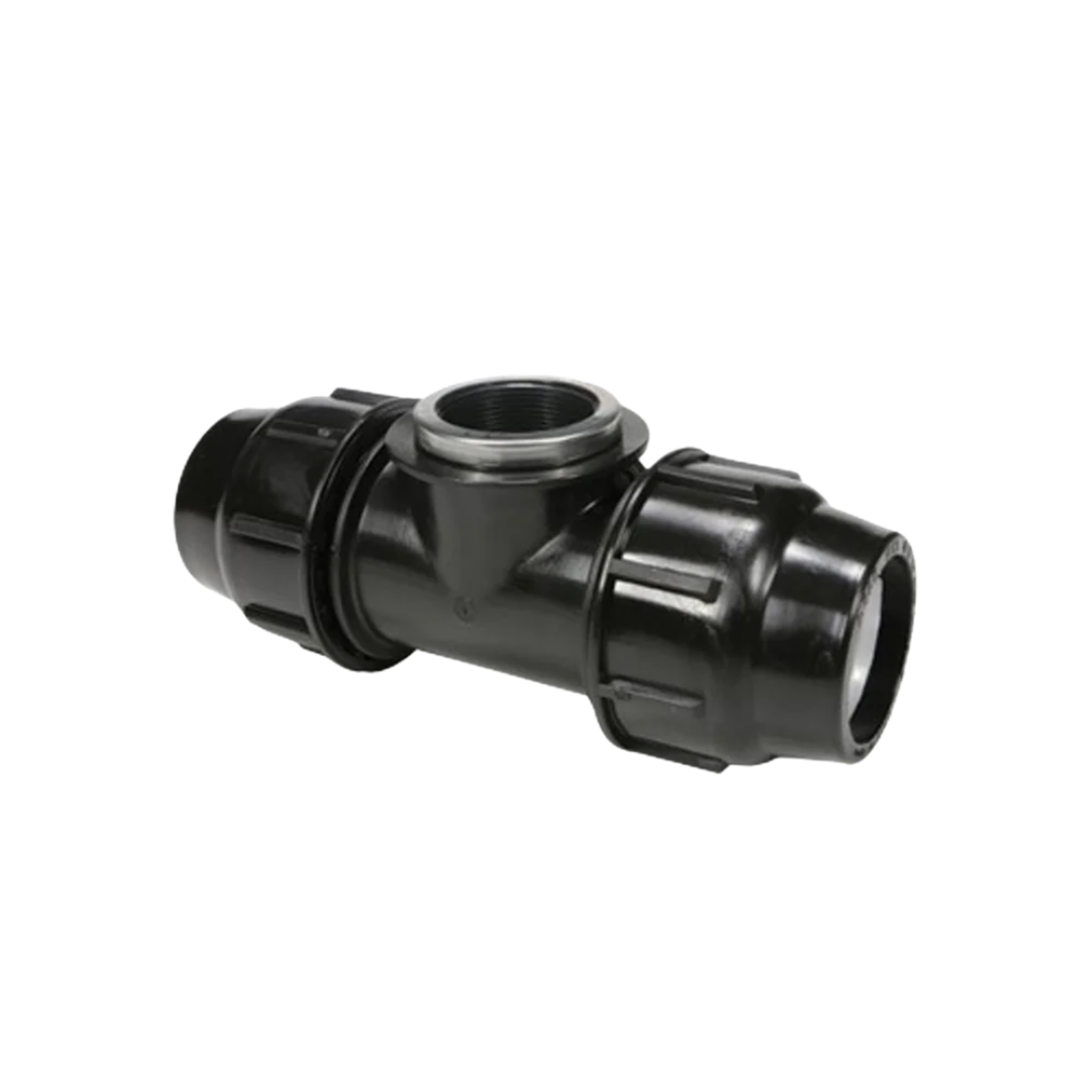

• PBM293 — Metric 7140 Tee Thread Female 32P x 32P x 32mm FI (FTE) (EQ)
• PBM296 — Metric 7140 Tee Thread Female 40P x 40P x 25mm FI (FTE)
• PBM297 — Metric 7140 Tee Thread Female 40P x 40P x 32mm FI (FTE)
• PBM298 — Metric 7140 Tee Thread Female 40P x 40P x 40mm FI (FTE) (EQ)
• PBM300 — Metric 7140 Tee Thread Female 50P x 50P x 40mm FI (FTE)
• PBM301 — Metric 7140 Tee Thread Female 50P x 50P x 50mm FI (FTE) (EQ)
• PBM302 — Metric 7140 Tee Thread Female 63P x 63P x 50mm FI (FTE)
