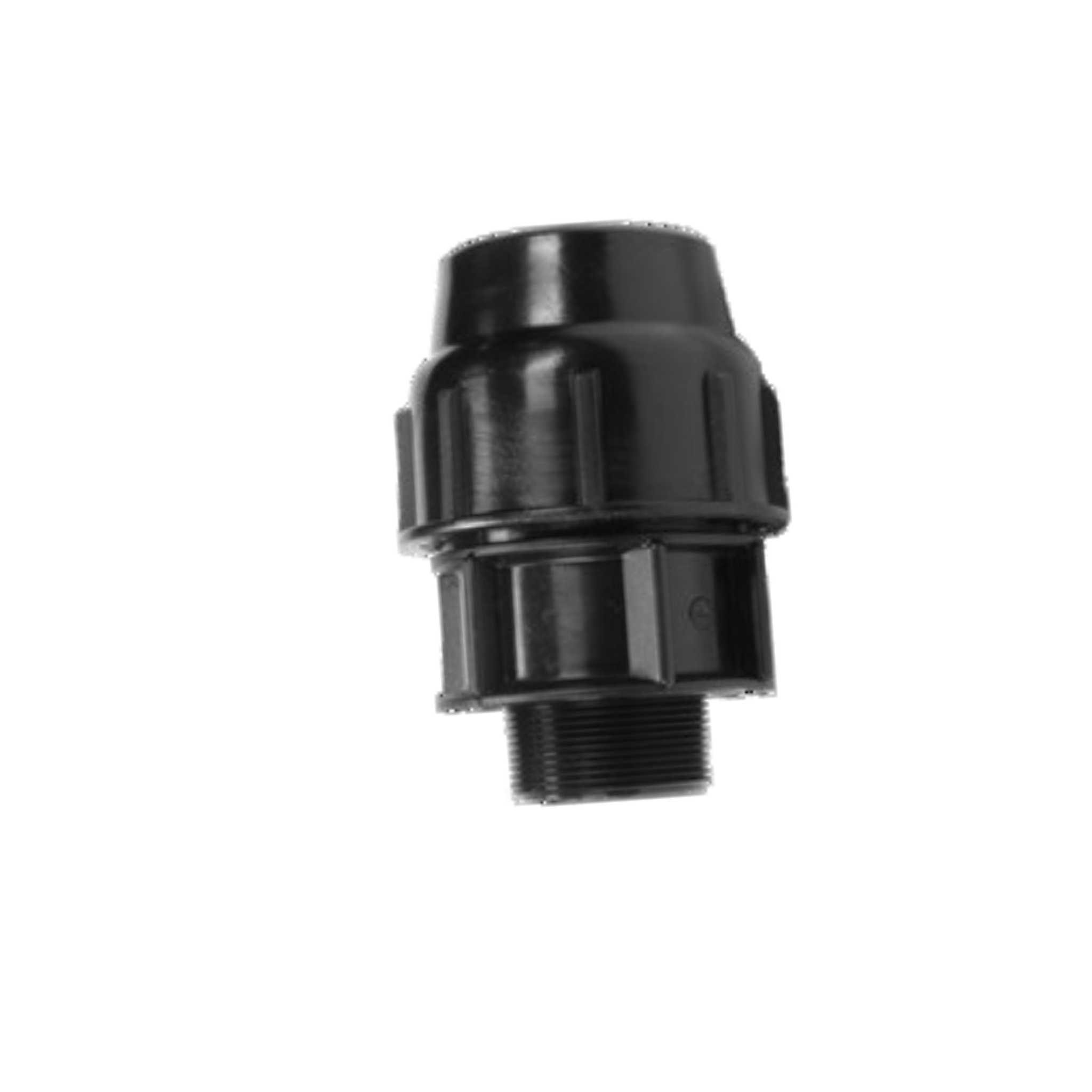

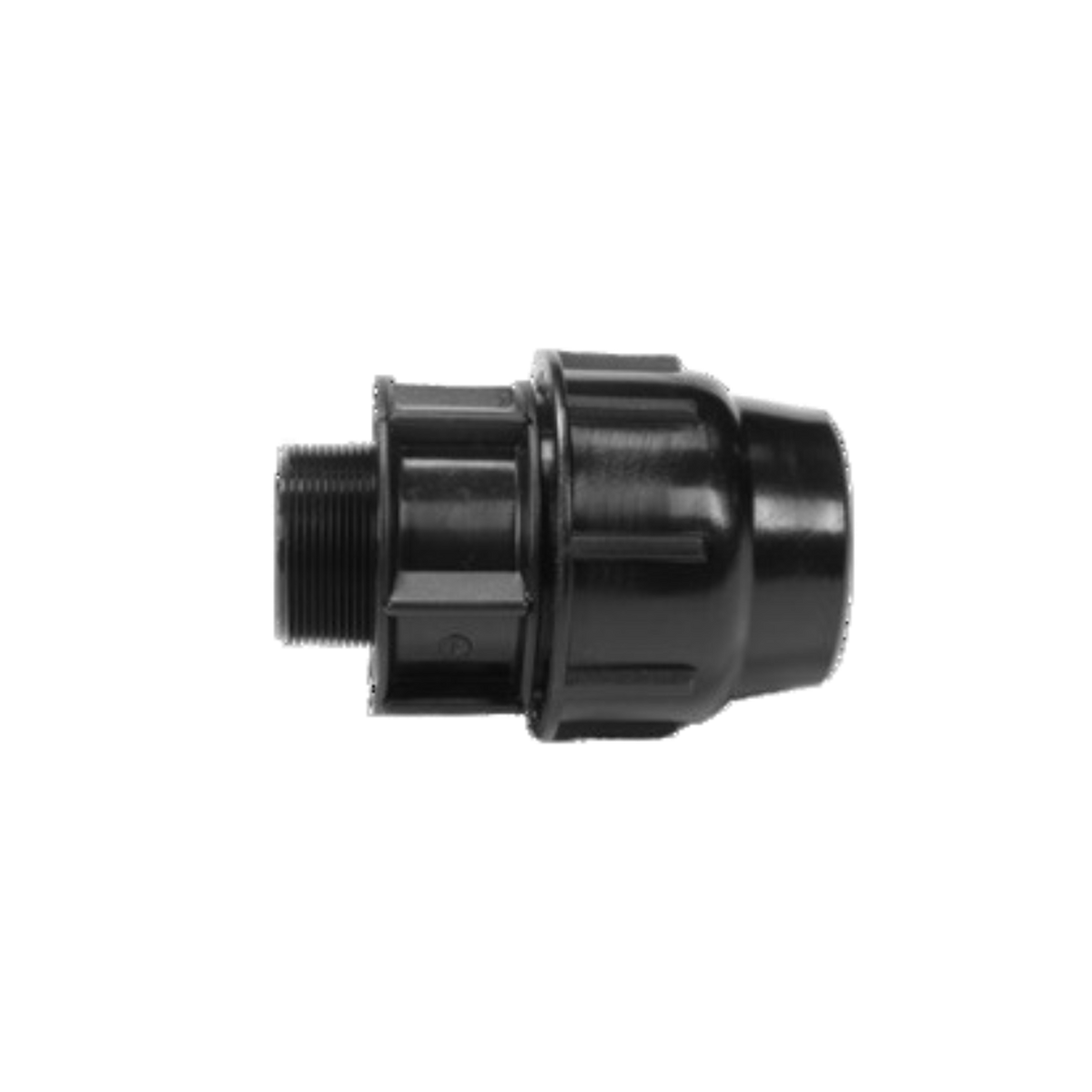

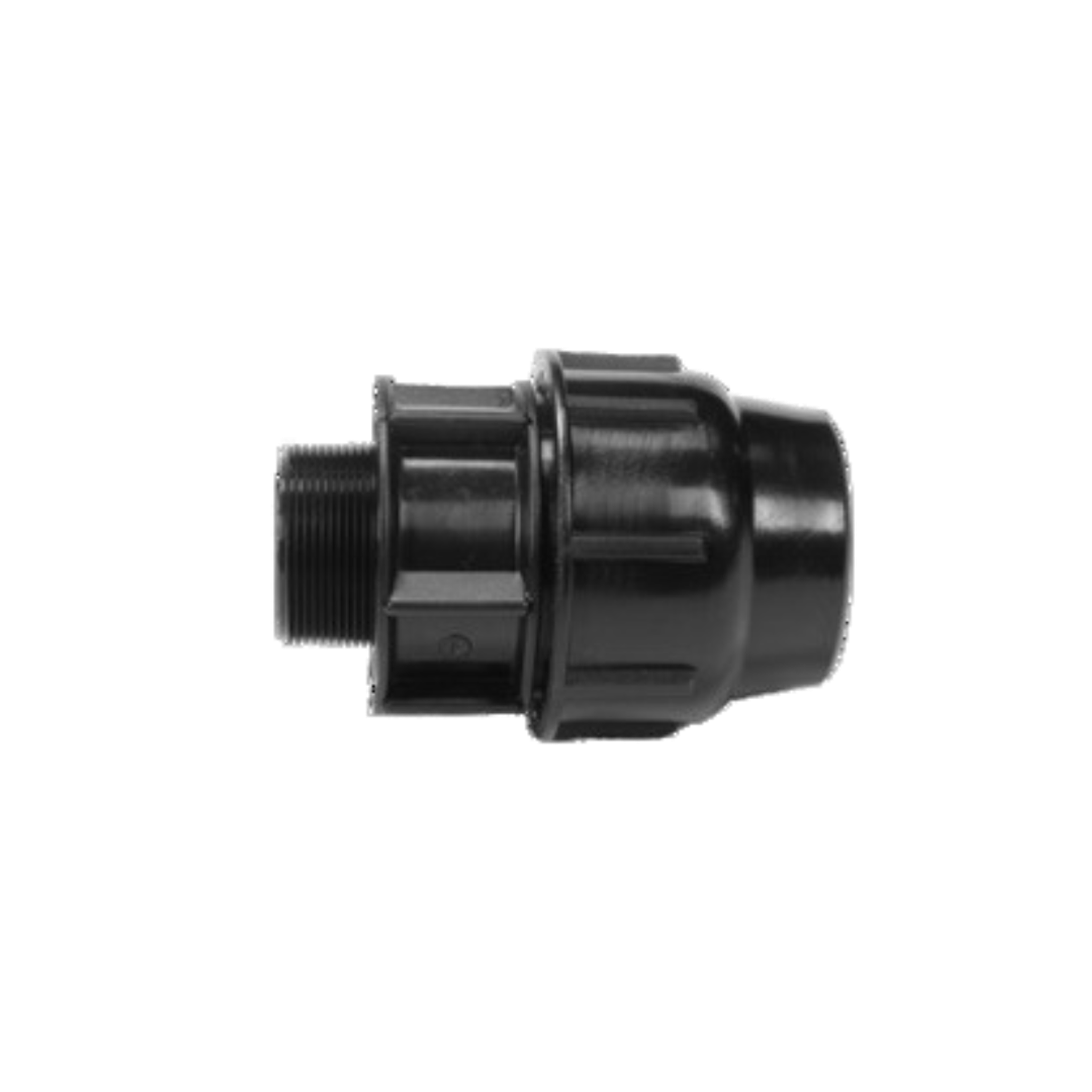

Poly Metric Reducing Male Adaptor

Poly Metric Reducing Male Adaptor
Black Polyethylene (PE) metric compression male threaded adaptors designed for connecting poly pipe to female BSP fittings. These reducing adaptors allow for joining pipes of different sizes, ensuring a secure, leak-free connection.

Compression fittings attach and seal the pipe via a screwing-gripping mechanism with an O-ring. The fittings are manufactured from high-quality materials for long-term performance. The high-performance polyethylene material provides excellent chemical, corrosion, and UV resistance, ensuring durability even in direct sunlight.

Suitable for use in plumbing, irrigation, and other applications where poly pipe is used. Always use a licensed plumber when connecting to mains water.

Key Features:

• Connects poly pipe to female BSP fittings
• Reducing adaptor allows joining pipes of different sizes
• Compression connection with O-ring for a secure, leak-free seal
• Made from high-performance, UV- and corrosion-resistant polyethylene
• Complies with AS/NZS4129 & ISO14236 for polyethylene pressure pipe systems
• Complies with AS/NZS4020 for water contact safety
• Recommended for 25mm+ sizes for optimal flow and reduced pressure loss
• Suitable for working pressures up to PN16 (1600 kPa / 235 psi)

Specifications:

• Material: High-performance Polyethylene (PE)
• Pressure Rating: PN16 (1600 kPa / 235 psi)
• Standard Compliance: AS/NZS4129, ISO14236, AS/NZS4020
• Typical Sizes: 16mm–110mm (reducing adaptors cover various size combinations)
• Installation: Hand tighten up to 32mm; hand tighten + ½ turn with wrench for 40mm+

Variants:

• PBM162 — 20P x 12mm MI
• PBM165 — 25P x 12mm MI
• PBM166 — 25P x 20mm MI
• PBM168 — 32P x 20mm MI
• PBM164 — 20P x 25mm MI
• PBM169 — 32P x 25mm MI
• PBM172 — 40P x 25mm MI
• PBM1755 — 50P x 25mm MI
• PBM173 — 40P x 32mm MI
• PBM176 — 50P x 32mm MI
• PBM171 — 32P x 40mm MI
• PBM177 — 50P x 40mm MI
• PBM179 — 63P x 40mm MI
• PBM175 — 40P x 50mm MI
