PVC Pressure Barrell Union

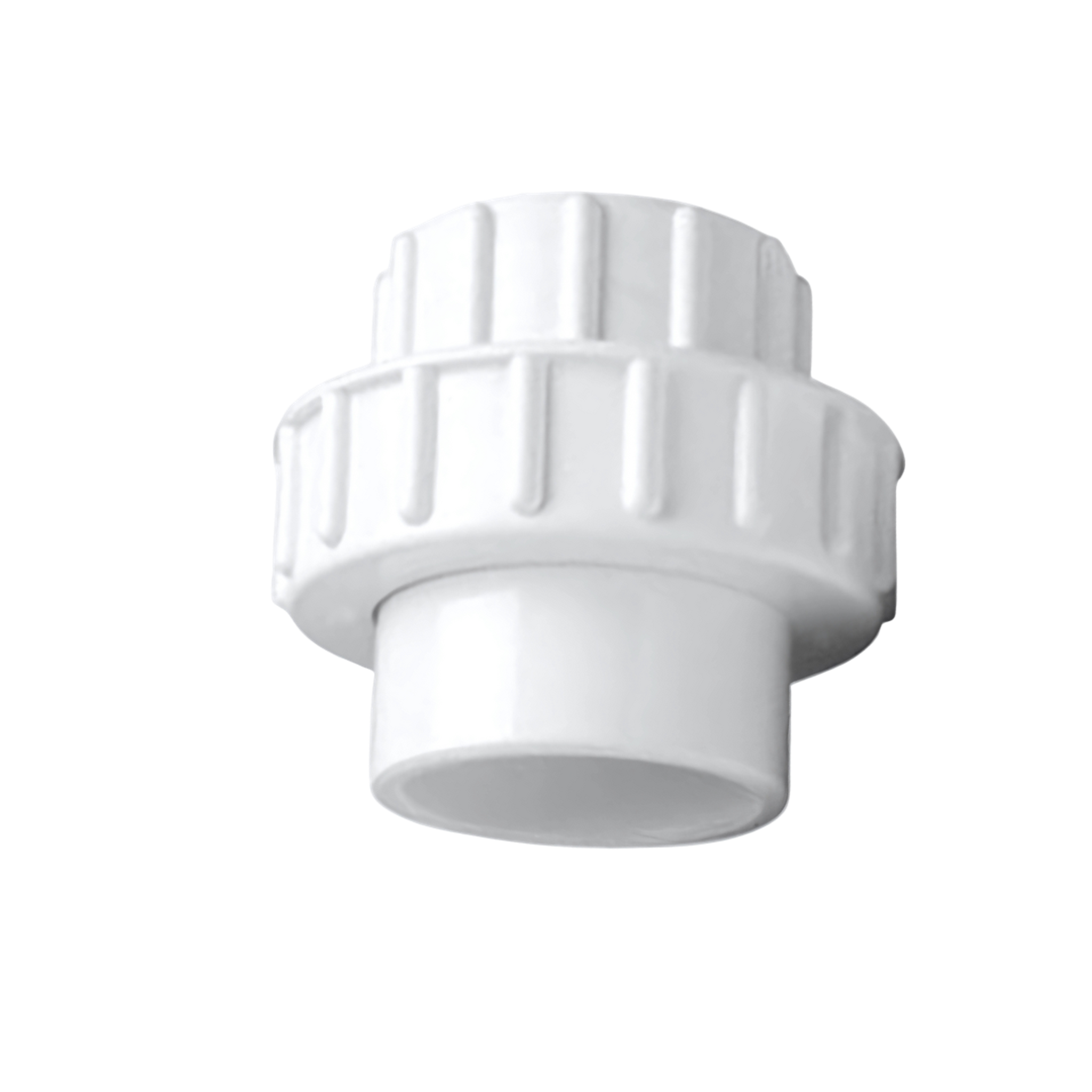

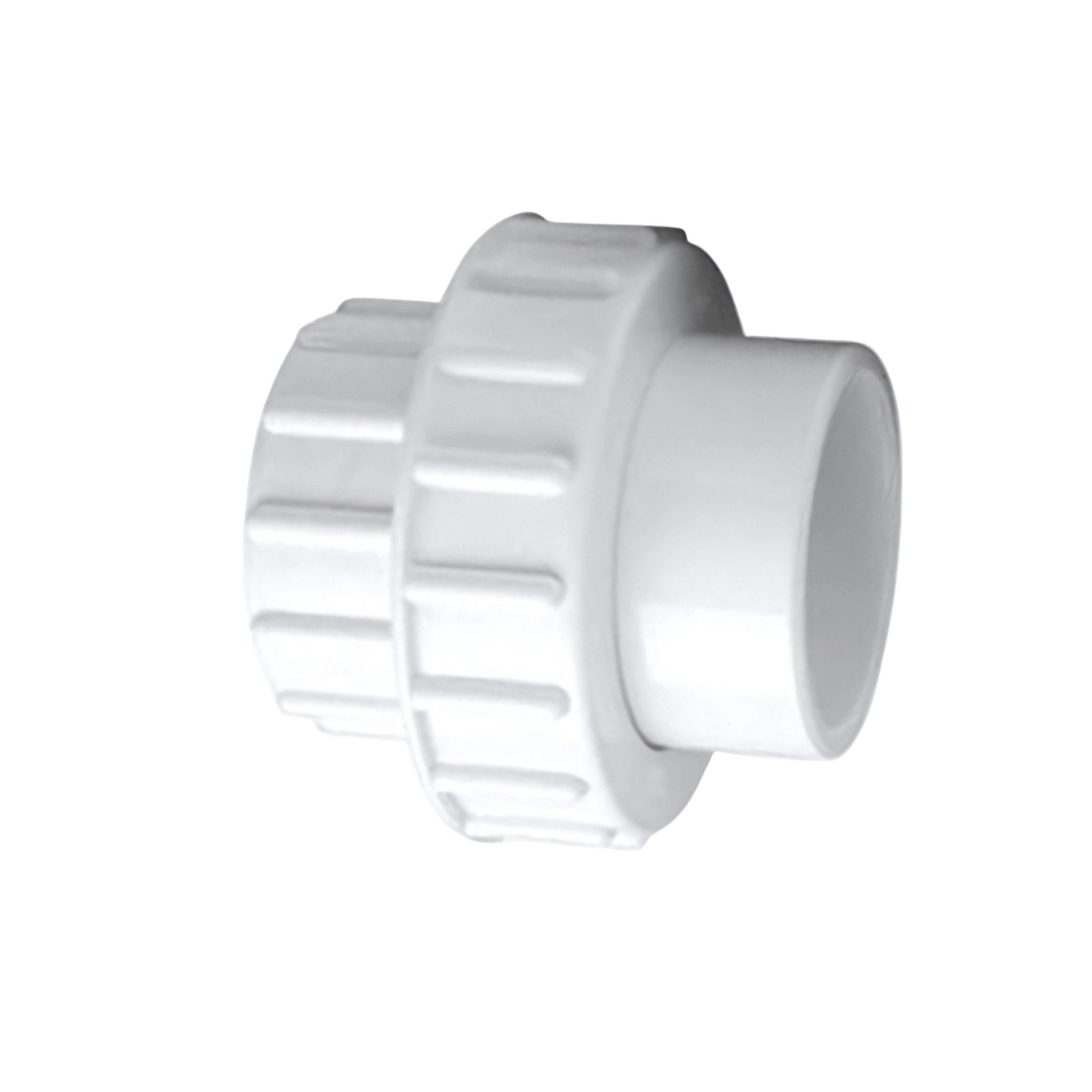

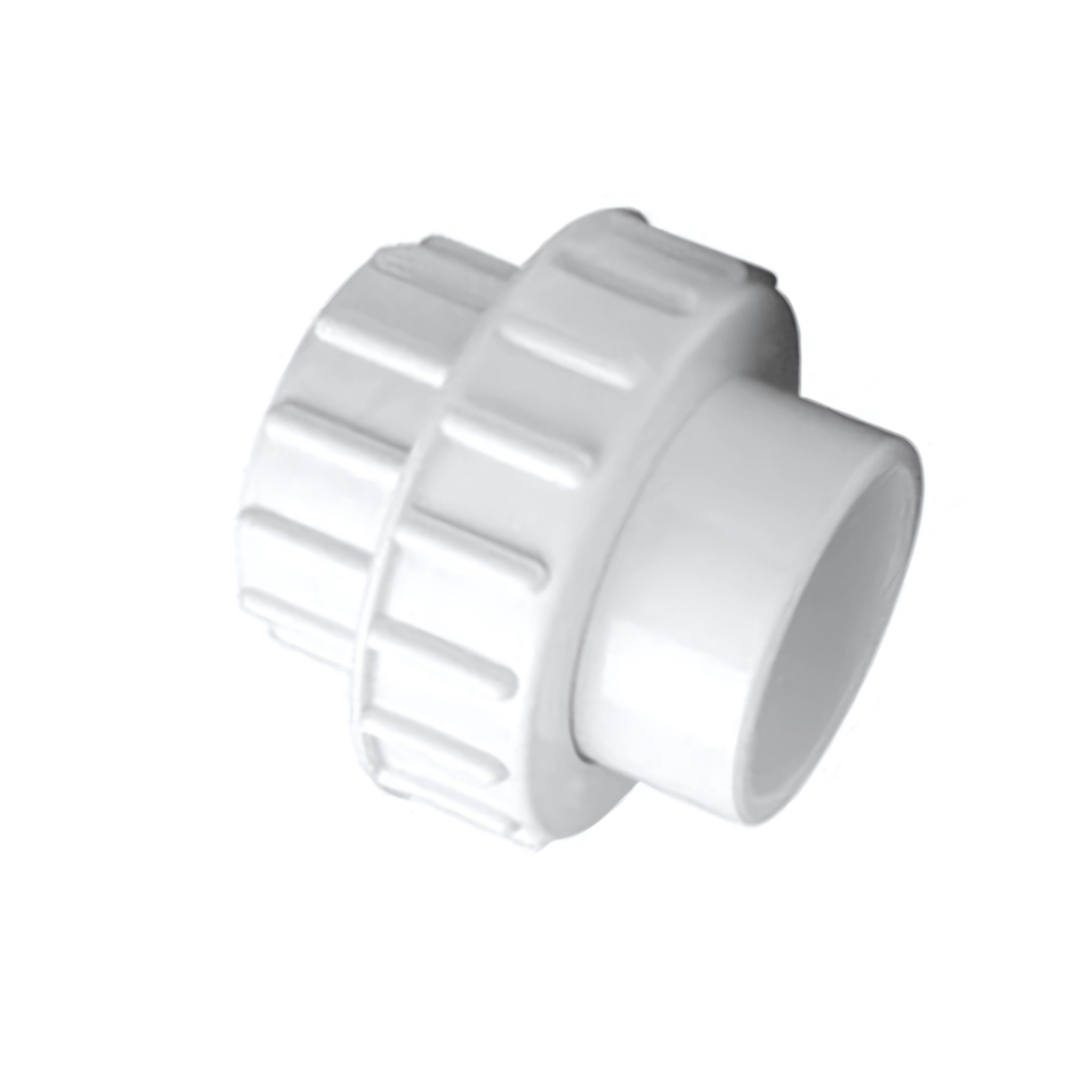

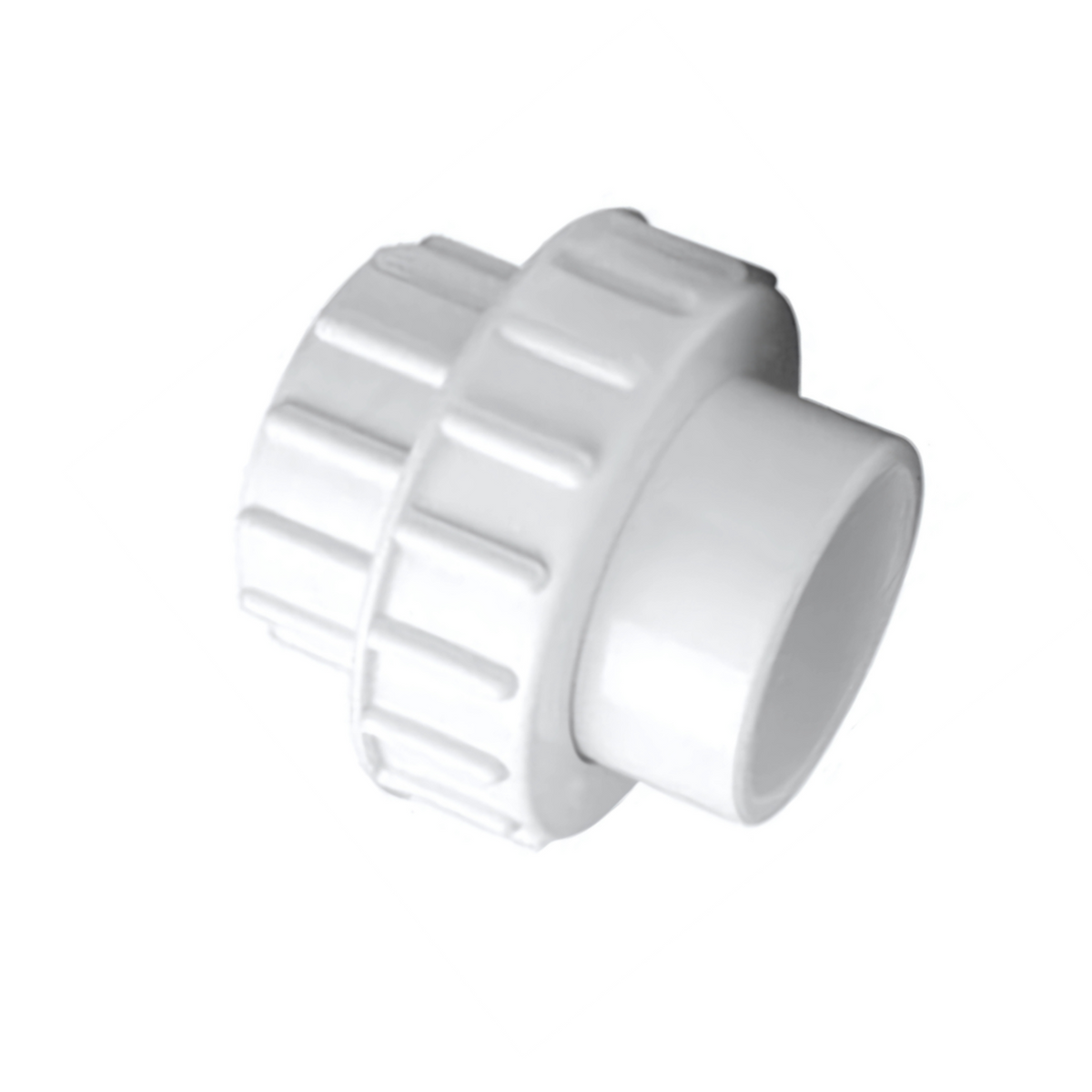

PVC Pressure Barrel Union (Cat 22)

Description:
The PVC Pressure Barrel Union (Cat 22) is designed to allow disassembly of sections of pipework without disturbing the entire system. This makes maintenance, repairs, and modifications easier and more efficient. The union is installed by solvent cementing pressure pipe into each end of the fitting, creating a strong and reliable joint.

Manufactured from high-quality PVC-U (unplasticised polyvinyl chloride), these fittings are rigid, durable, and corrosion resistant. They are suitable for a wide range of pressure applications, including potable water, irrigation, sewerage, and recycled water systems.

Key Features:

• Allows easy disassembly of pipelines without cutting pipe
• Strong, secure solvent cement joint connection (SCJ)
• Manufactured from rigid, high-quality PVC-U
• Suitable for both above-ground and underground use
• Corrosion-resistant, long-lasting, and maintenance-friendly
• White or off-white finish
• Wide range of sizes available (15mm–150mm, larger sizes on request)

Applications:

• Potable water supply
• Pumped sewerage and effluent pipelines
• Irrigation and turf watering
• Pressure sewerage systems
• Slurry and recycled water transport
• Some gas applications (with special yellow pipe)
• Specifications:
• Material: PVC-U (rigid)
• Jointing System: Solvent Cement Joint (SCJ)
• Pressure Rating: PN18 (1800 kPa)
• Pipe Compatibility: PN4.5 – PN18 pressure-rated pipes
• Temperature Range: 0°C to 50°C (special considerations required outside this range)
• Standards:
  • AS/NZS 1477 – PVC pipes and fittings for pressure applications
  • AS/NZS 4020 – Testing of products in contact with drinking water

Compliance: WaterMark certified

Performance Notes:

• 24 hours required for solvent cement joint curing before pressurisation
• Not typically used in domestic housing systems
• Suitable for both above-ground and underground installations

Variants (Sizes):

• PPF300 — 12mm
• PPF301 — 20mm
• PPF302 — 25mm
• PPF303 — 32mm
• PPF304 — 40mm
• PPF305 — 50mm
• PPF306 — 65mm
• PPF307 — 80mm
• PPF308 — 100mm
