45 Degree Bend

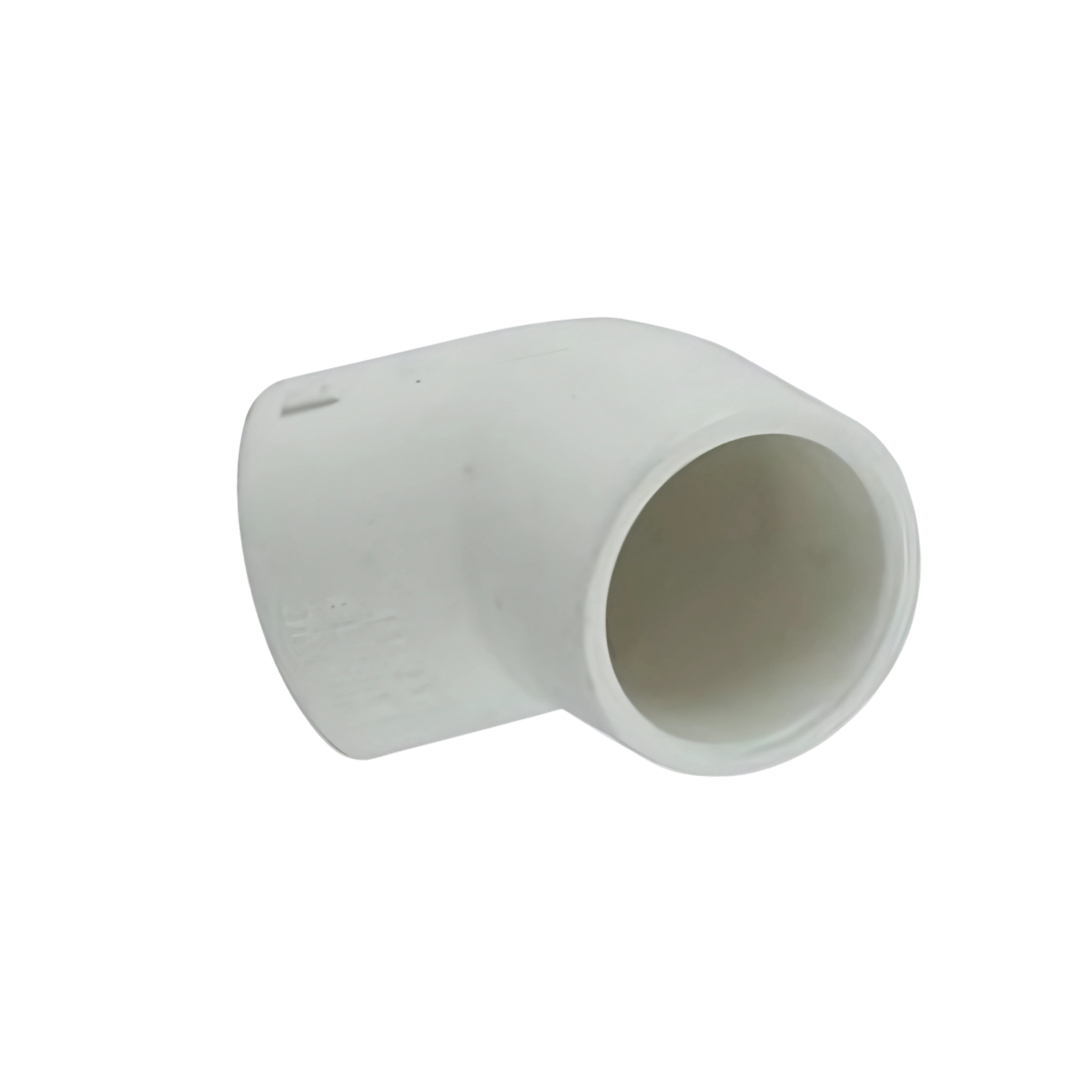

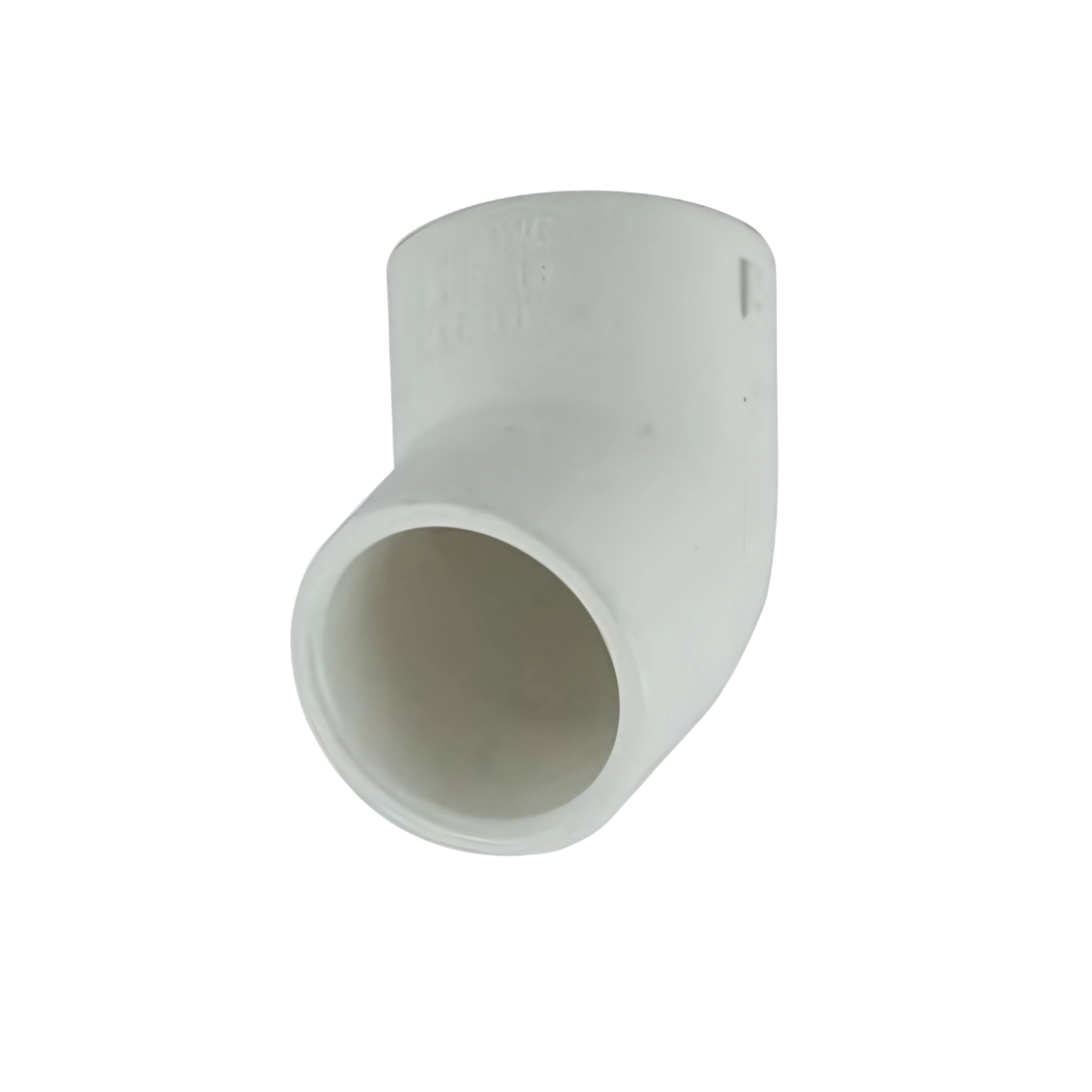

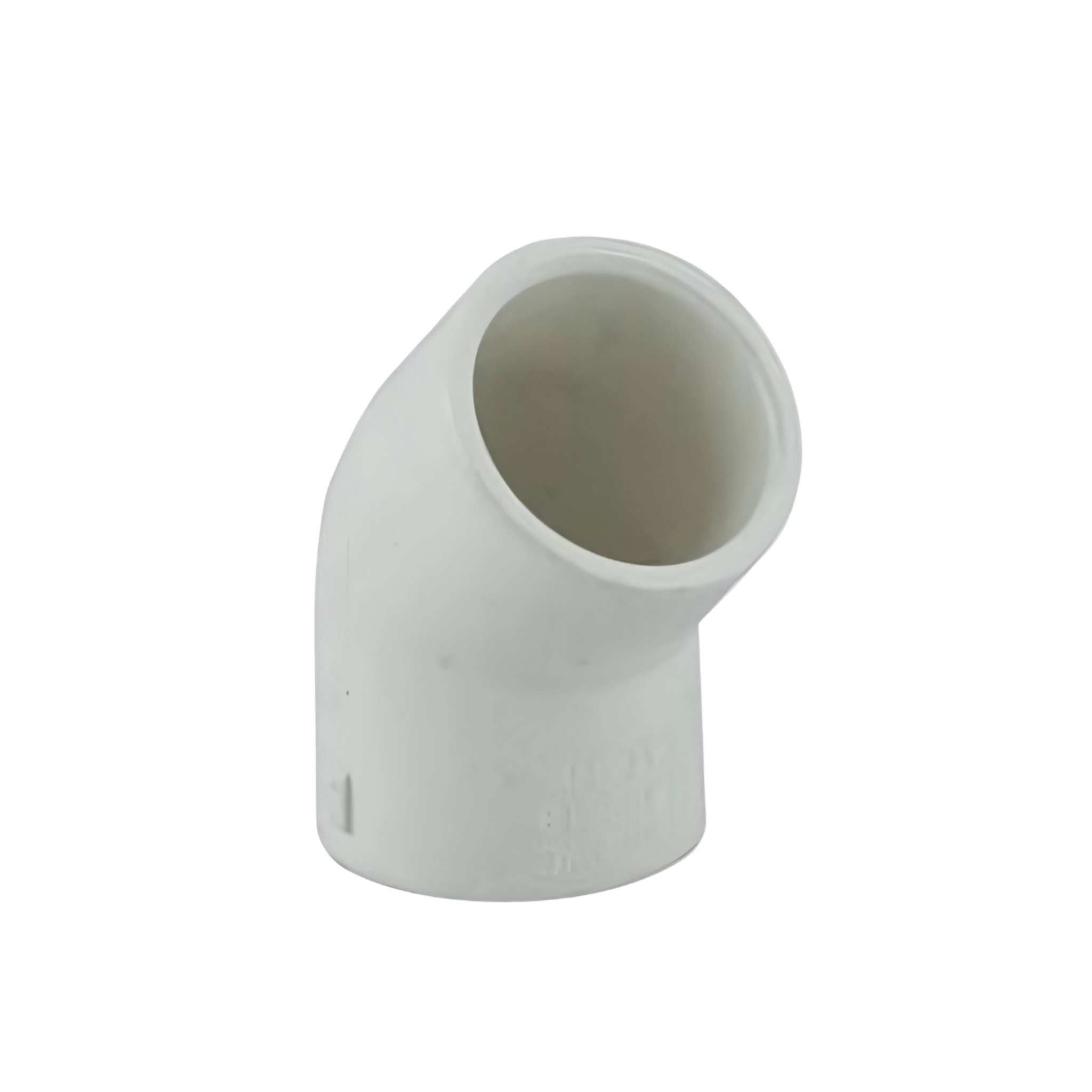

PVC Pressure 45° Bend (Cat 10)

Description:
The PVC Pressure 45° Bend (Cat 10) is designed to change the direction of a pressure pipeline by 45 degrees. This FF (female–female) fitting allows the pipe to be securely inserted into both ends and fixed using solvent cement for a watertight, long-lasting joint.

Constructed from high-quality PVC-U (unplasticised polyvinyl chloride), this fitting provides excellent resistance to corrosion, chemicals, and impact, making it a reliable choice for a wide range of pressure applications.

Key Features:

• 45° bend for smooth directional changes in pipelines
• FF fitting – pipe fits inside both ends
• High-strength PVC-U for durability and longevity
• Corrosion, chemical, and UV resistant
• Compatible with PVC pressure pipes PN4.5 – PN18
• White or off-white finish
• Wide range of sizes from 12mm to 150mm

Applications:

• Potable water supply
• Pumped sewerage and effluent pipelines
• Irrigation and turf watering systems
• Slurry and recycled water transport
• Pressure sewerage systems
• Gas distribution (with special yellow pipe)

Specifications:

• Material: PVC-U (rigid)
• Angle: 45°
• Jointing System: Solvent Cement Joint (SCJ)
• Pressure Rating: PN18 (1800 kPa)
• Temperature Range: 0°C to 50°C (special considerations required outside this range)
• Standards:
  • AS/NZS 1477 – PVC pipes and fittings for pressure applications
  • AS/NZS 4020 – Products for use in contact with drinking water
• Compliance: WaterMark certified
• Curing Time: 24 hours required before pressurisation

Performance Notes:

• Suitable for above-ground and underground applications
• Not typically used in domestic housing installations
• Ensures smooth flow transition, minimising pressure loss

Variants (Sizes):

• PPF150 — 12mm
• PPF152 — 20mm
• PPF153 — 25mm
• PPF154 — 32mm
• PPF155 — 40mm
• PPF156 — 50mm
• PPF157 — 65mm
• PPF158 — 80mm
• PPF159 — 100mm
• PPF160 — 150mm
