PVC Pressure Male Coupling

PVC Pressure Male Coupling (Cat 17)

Description:

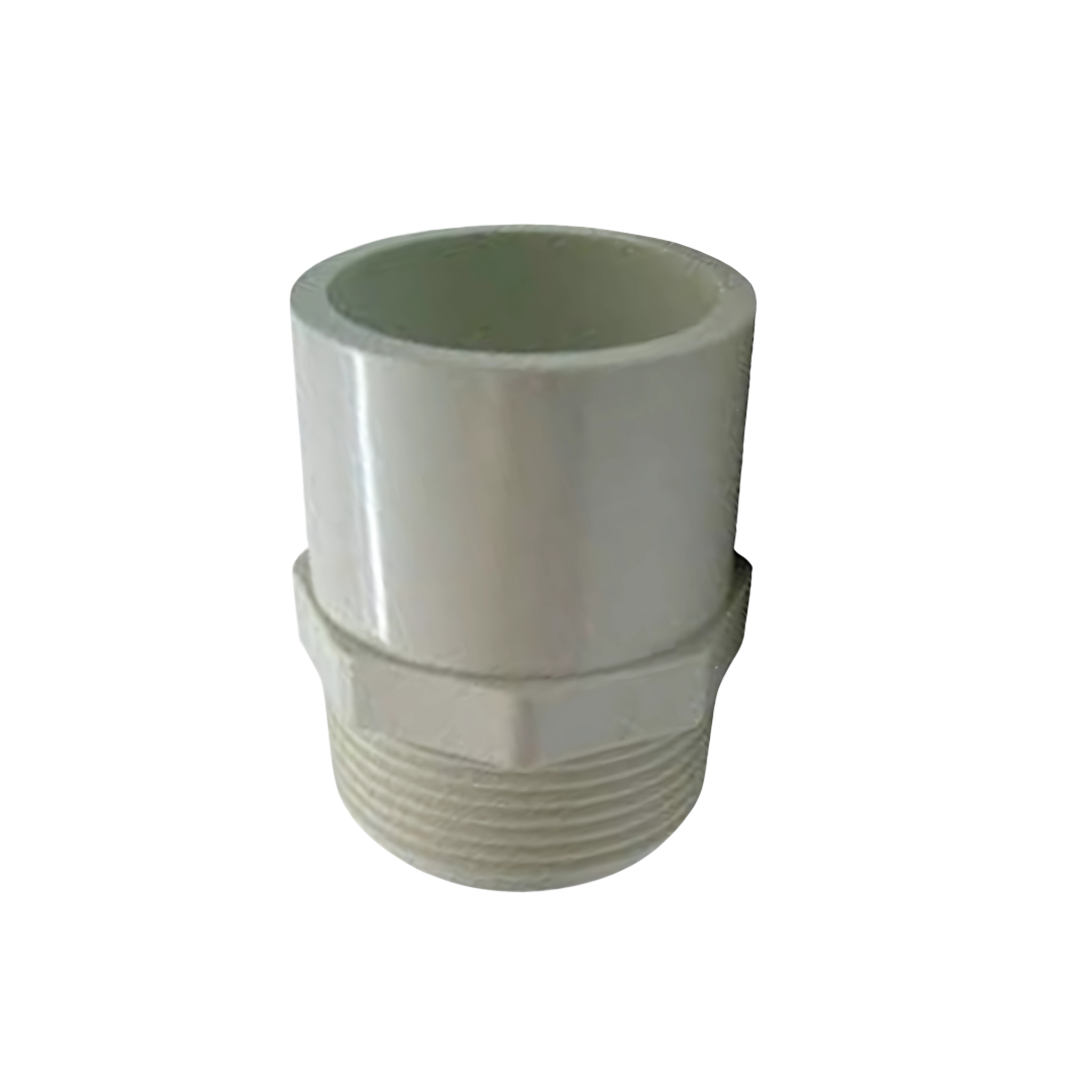

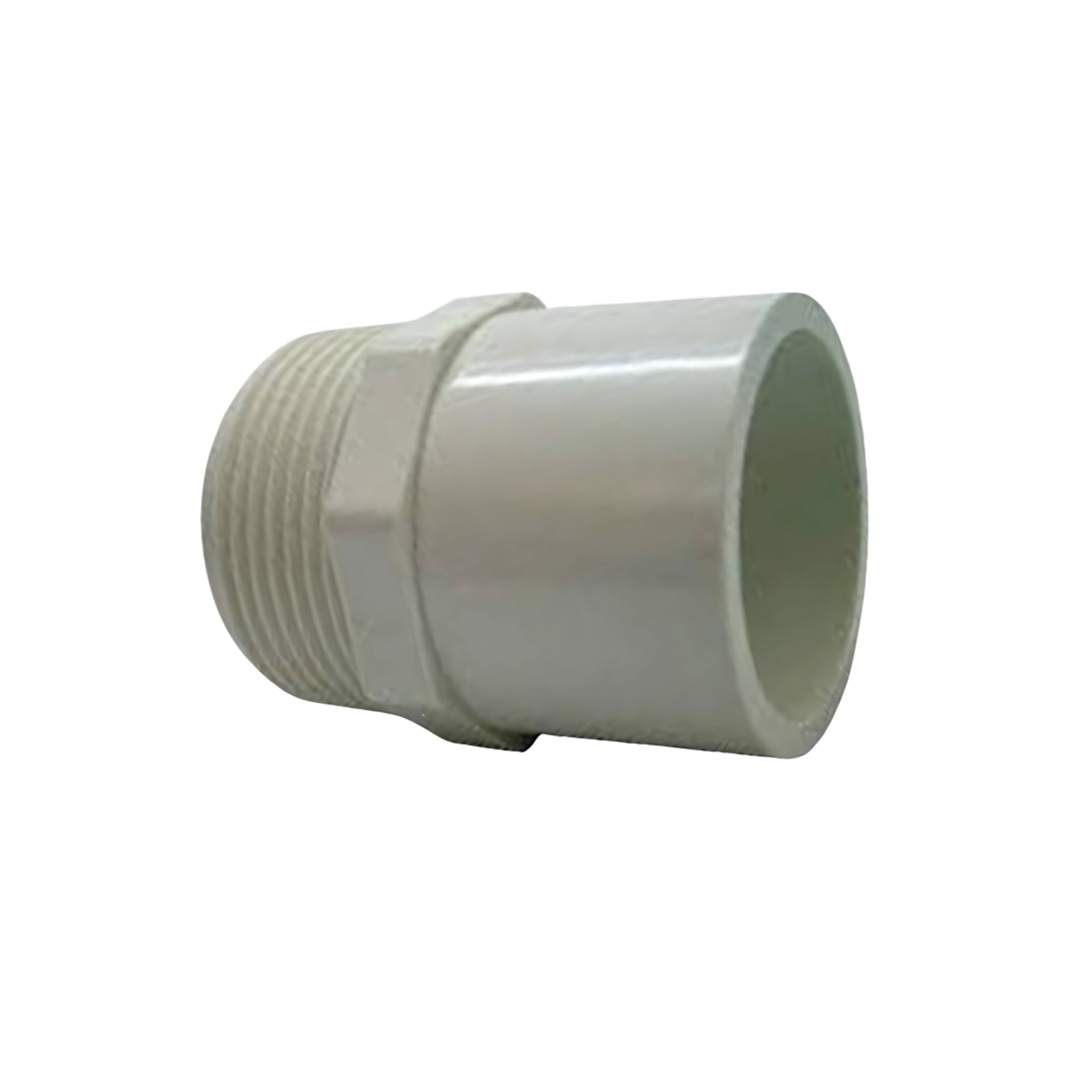

The PVC Pressure Male Coupling (Cat 17) is designed to connect PVC pressure pipe to a female-threaded fitting. One end of the coupling is a solvent weld socket that joins to PVC-U pipe, while the other end is a male BSP thread, ensuring a secure transition between solvent-welded pipelines and threaded components.

Constructed from PVC-U (unplasticised polyvinyl chloride), these couplings provide durability, chemical resistance, and long service life in a wide range of pressure applications.

Key Features:

• Solvent weld socket × Male BSP threaded end
• Simple and reliable transition between pipe and threaded fittings
• High strength and corrosion resistance
• Manufactured from rigid PVC-U
• White or off-white finish
• Easy installation with solvent cement (SCJ)
• Available in multiple sizes to suit project needs

Applications:

• Potable water supply
• Pumped sewerage and effluent systems
• Irrigation and turf watering
• Slurry transport
• Pressure sewerage networks
• Recycled water systems
• Gas (when used with approved yellow PVC pipe)

Specifications:

• Material: PVC-U (unplasticised polyvinyl chloride)
• Type: Male Coupling (Cat 17)
• Connection: Solvent weld socket × Male BSP thread
• Pressure Rating: PN18 (1800 kPa)
• Pipe Compatibility: Suitable with PN4.5–PN18 pipes
• Temperature Range: 0°C to 50°C (special consideration needed outside this range)
• Standards Compliance:
  • AS/NZS 1477 – PVC pipes and fittings for pressure applications
  • AS/NZS 4020 – Products for use in contact with drinking water
• Certification: WaterMark approved
• Curing Time: 24 hours before pressurisation

Performance Notes:

• Designed for above-ground and underground installations
• Not generally used in domestic housing systems
• Provides a secure threaded connection while maintaining full pressure rating

Variants (Sizes):

• PPF210 — 12mm × 12mm MI (Equal)
• PPF211 — 20mm × 20mm MI (Equal)
• PPF212 — 25mm × 25mm MI (Equal)
• PPF213 — 32mm × 32mm MI (Equal)
• PPF214 — 40mm × 40mm MI (Equal)
• PPF215 — 50mm × 50mm MI (Equal)
• PPF216 — 65mm × 65mm MI (Equal)
• PPF217 — 80mm × 80mm MI (Equal)
• PPF218 — 100mm × 100mm MI (Equal)
