Equal Tee

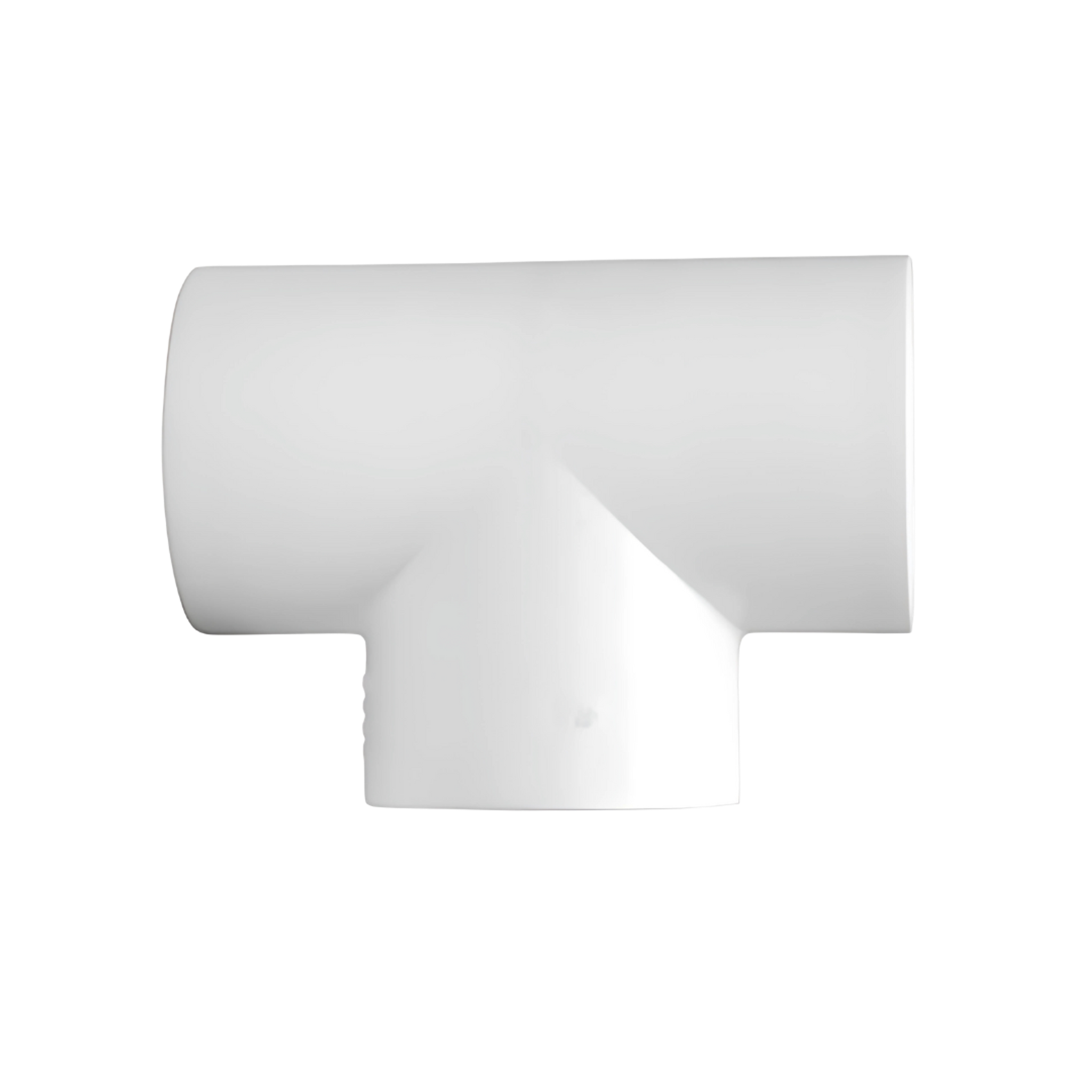

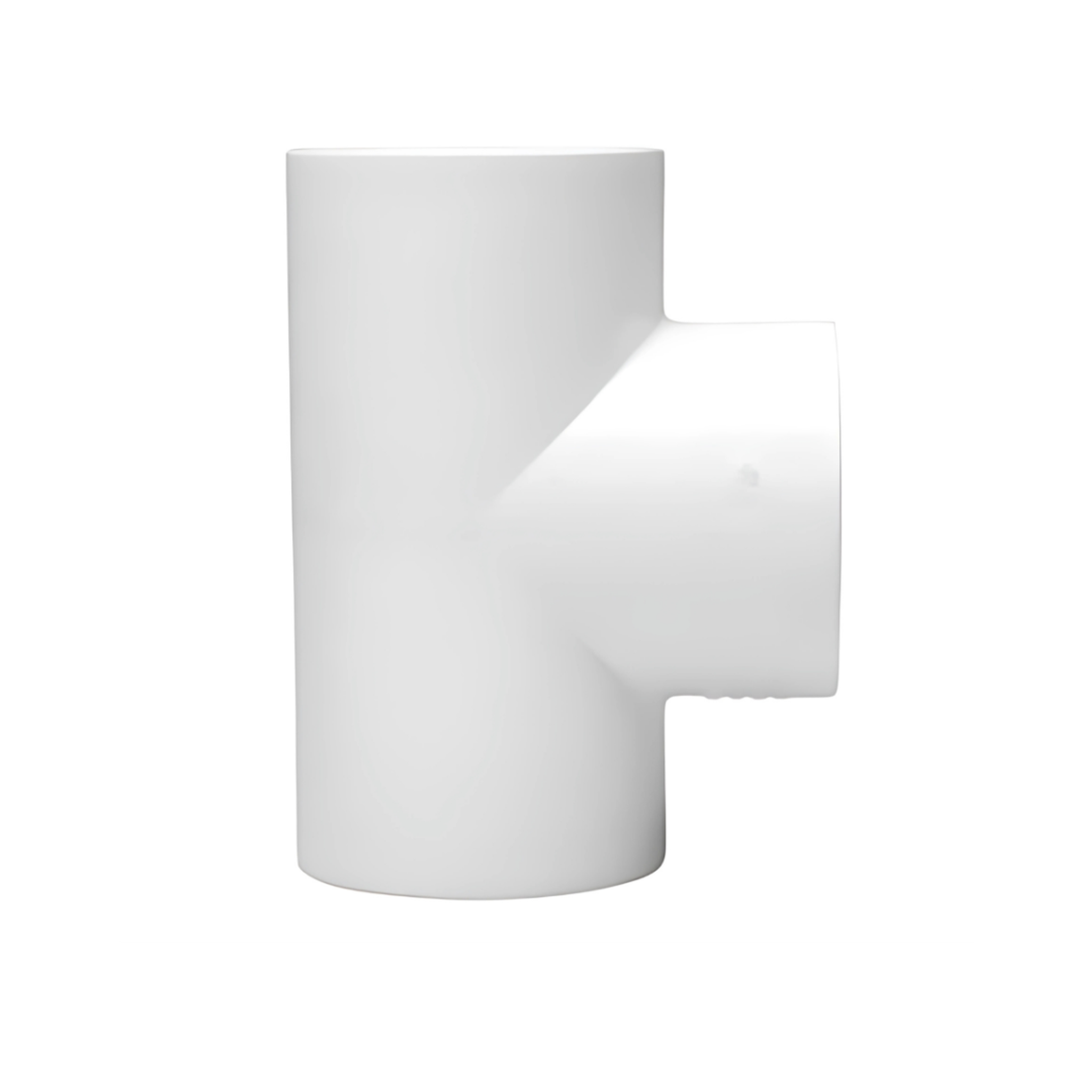

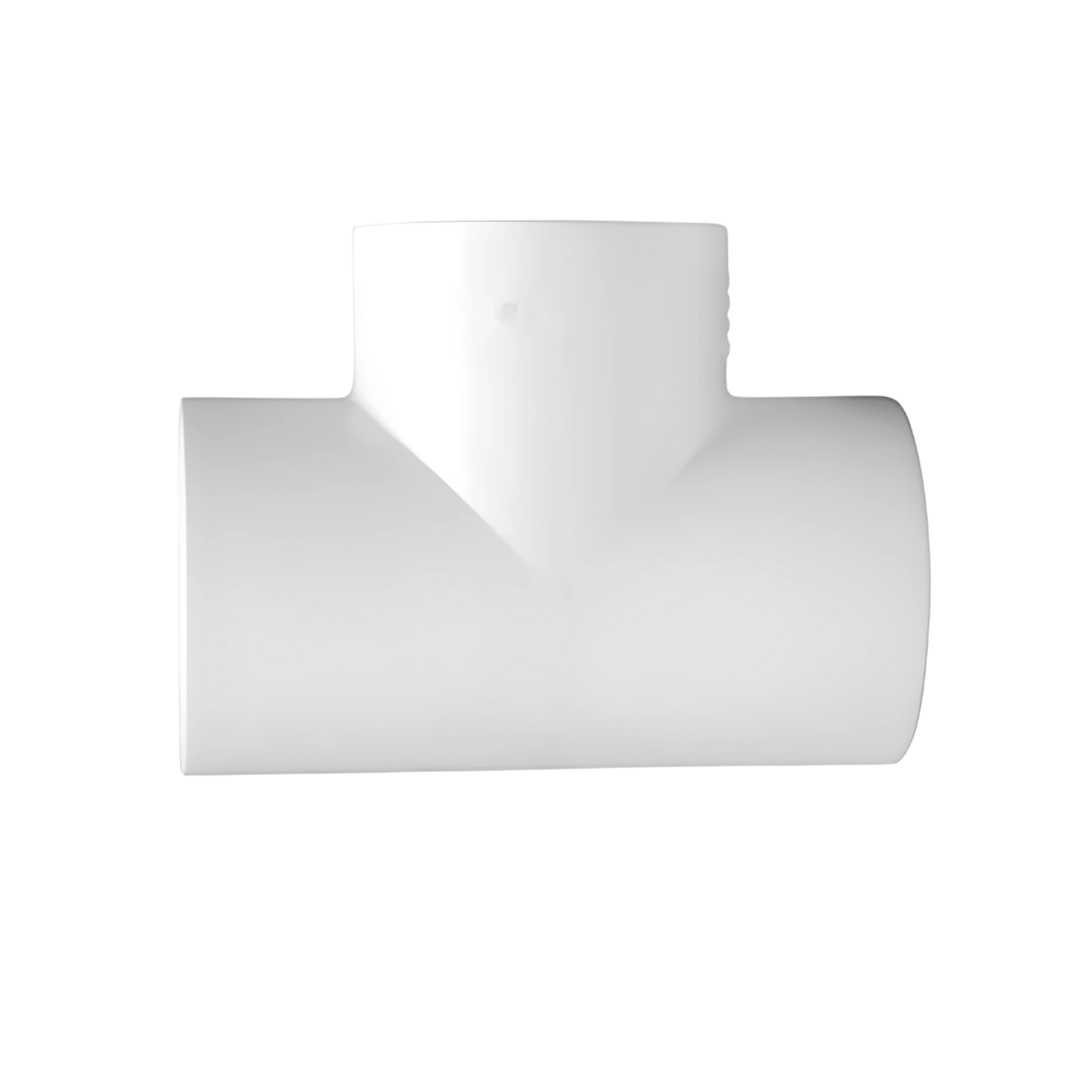

PVC Pressure Equal Tee (Cat 19)

Description:
PVC Pressure Equal Tees are designed to create a branch in pipework where all ends are the same size. The branch is positioned at 90° to the main run, with the pressure pipe fitting inside each end. These fittings are ideal for applications where a uniform branch connection is required.

Material:
Manufactured from durable PVC-U, the fittings are rigid and built for long-lasting performance. Pipes are available in 6-meter lengths.

Installation:
The fittings are joined using solvent cement (SCJ system). Allow 24 hours for the joint to set before pressurizing. Installation should follow the PVC-U installation guide.

Applications:

• Pumped sewerage and effluent pipelines
• Potable water
• Irrigation and turf watering
• Slurry transport
• Pressure sewerage
• Water supply
• Recycled water

Note: This system is generally not used in domestic housing but is suitable for both above-ground and underground installations. For gas applications, use special yellow PVC pipe.

Specifications:

• Pressure Rating: PN18 (1800 kPa)
• Pipe Compatibility: PN4.5 to PN18
• Operating Temperature: 0°C – 50°C (special considerations required outside this range)
• Colour: White or off-white
• Standards: AS/NZS 1477 (PVC pipes & fittings for pressure applications), AS/NZS 4020 (suitable for contact with drinking water), Watermark compliant

Available Sizes:

• PPF230 — 12mm x 12mm (EQ)
• PPF232 — 20mm x 20mm (EQ)
• PPF234 — 25mm x 25mm (EQ)
• PPF238 — 32mm x 32mm (EQ)
• PPF242A — 40mm x 40mm (EQ)
• PPF248 — 50mm x 50mm (EQ)
• PPF250 — 65mm x 65mm (EQ)
• PPF255 — 80mm x 80mm (EQ)
• PPF259 — 100mm x 100mm (EQ)
• PPF261 — 150mm x 150mm (EQ)
