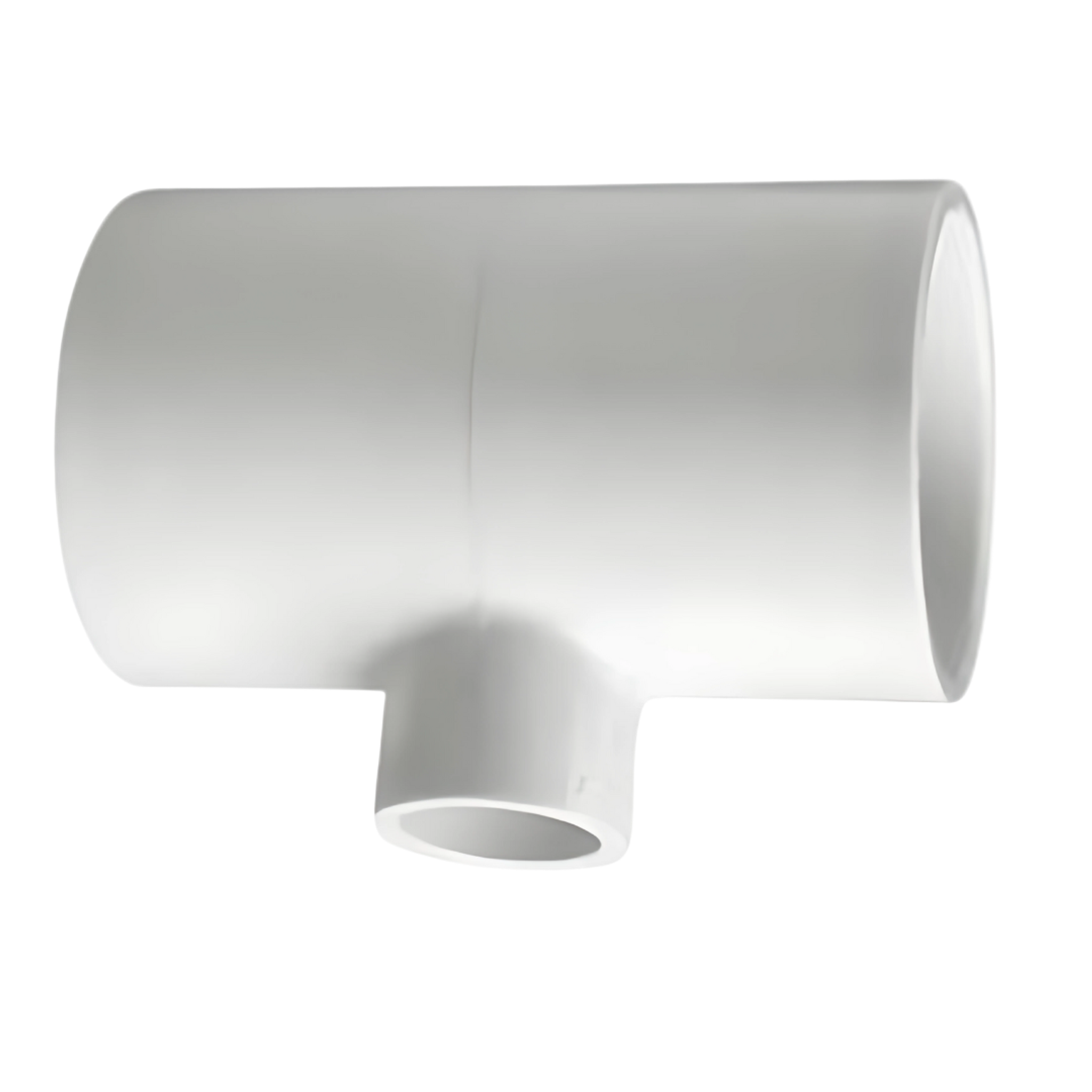

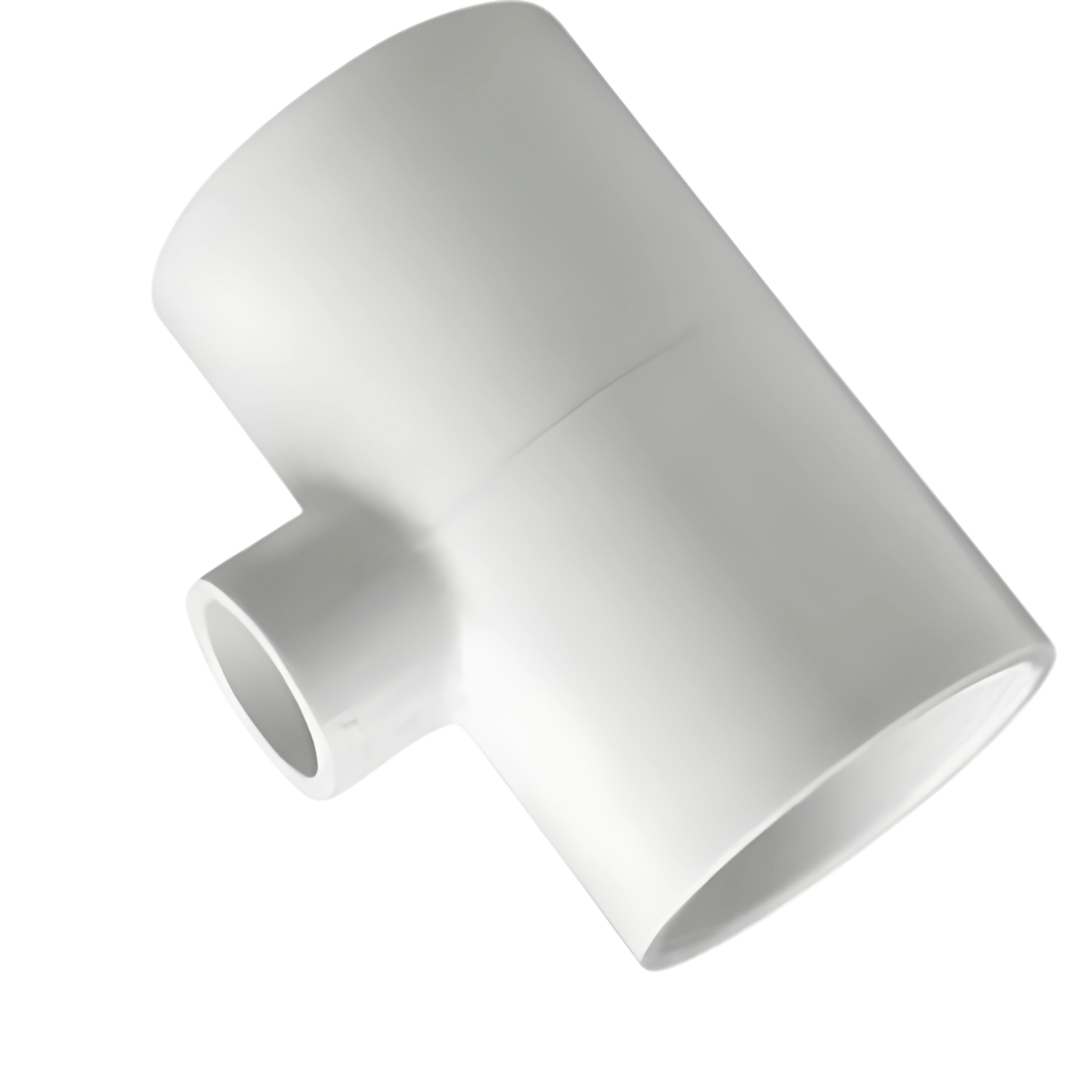

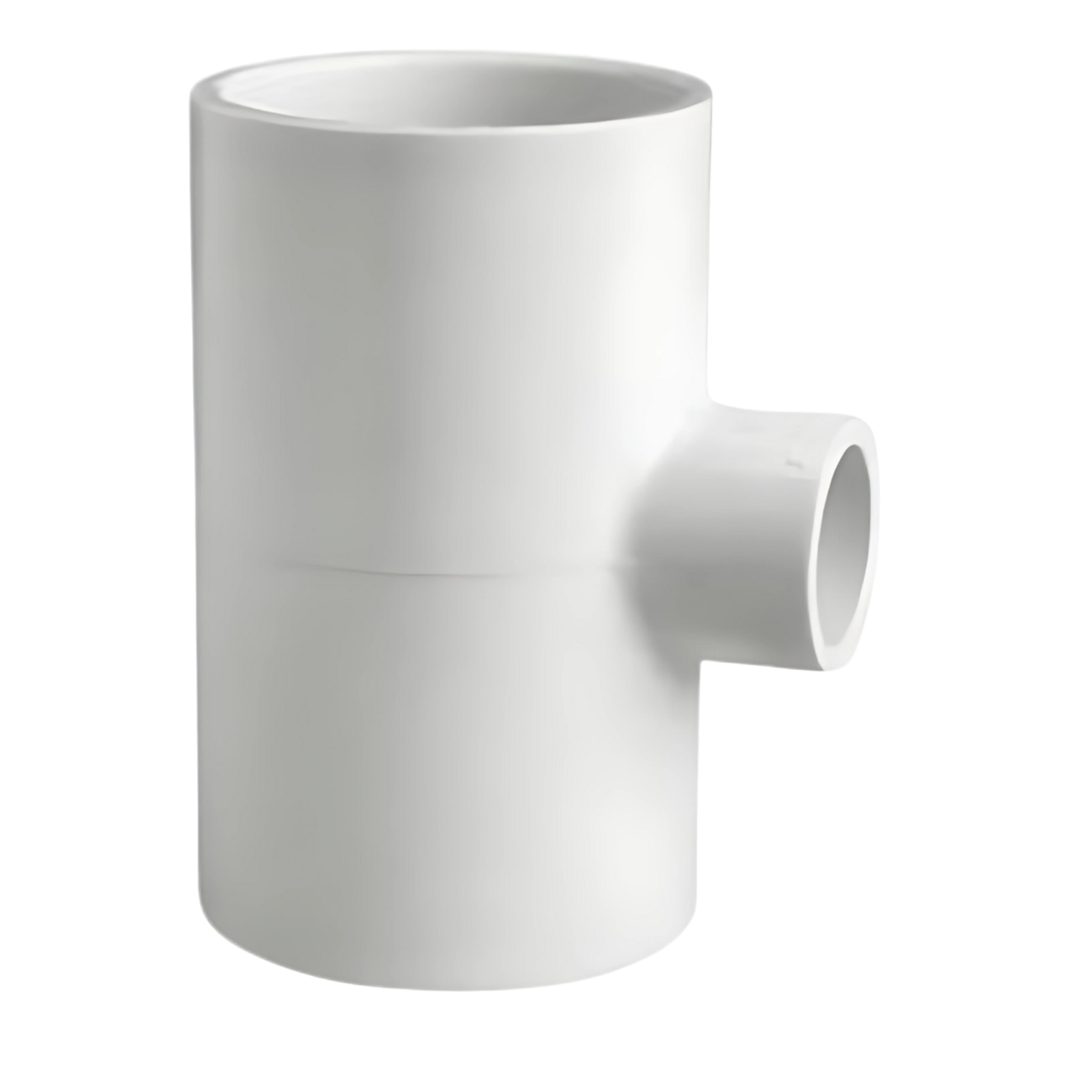

PVC Pressure Reducing Tee

PVC Pressure Reducing Tee – Category 19

Description:
PVC Pressure Reducing Tees are designed to create a branch in a pressure pipe system where the branch is of a smaller diameter than the main run. The branch (also called the centre) is at a 90° angle to the main run, which maintains equal sizing at both ends. These reducing tees are ideal for irrigation, water supply, and pressure pipeline systems requiring a step-down in pipe size.

Key Features:

• Made from durable PVC-U for long-lasting use
• Main run ends fit over pipe; branch end accommodates smaller pipe
• Suitable for above-ground and underground applications
• White/off-white finish
• Lightweight, corrosion-resistant, and easy to install

Applications:

• Pumped sewerage and effluent pipelines
• Potable water and recycled water systems
• Irrigation and turf watering
• Slurry transport
• Pressure sewerage and water supply systems

Specifications:

• Material: PVC-U (unplasticized)
• Connection Type: Solvent cement joint (SCJ)
• Pressure Rating: PN18 (1800 kPa); pipe available from PN4.5 (450 kPa) to PN18
• Temperature Range: 0°C to 50°C (special considerations outside this range)
• Standards: AS/NZS 1477, AS/NZS 4020, Watermark compliant

Size Variants:

• PPF231 — 20mm x 12mm
• PPF232A — 25mm x 12mm
• PPF233 — 25mm x 20mm
• PPF240 — 40mm x 20mm
• PPF242 — 40mm x 32mm
• PPF244 — 50mm x 20mm
• PPF260 — 150mm x 100mm
