Sharkbite Reducing Coupling

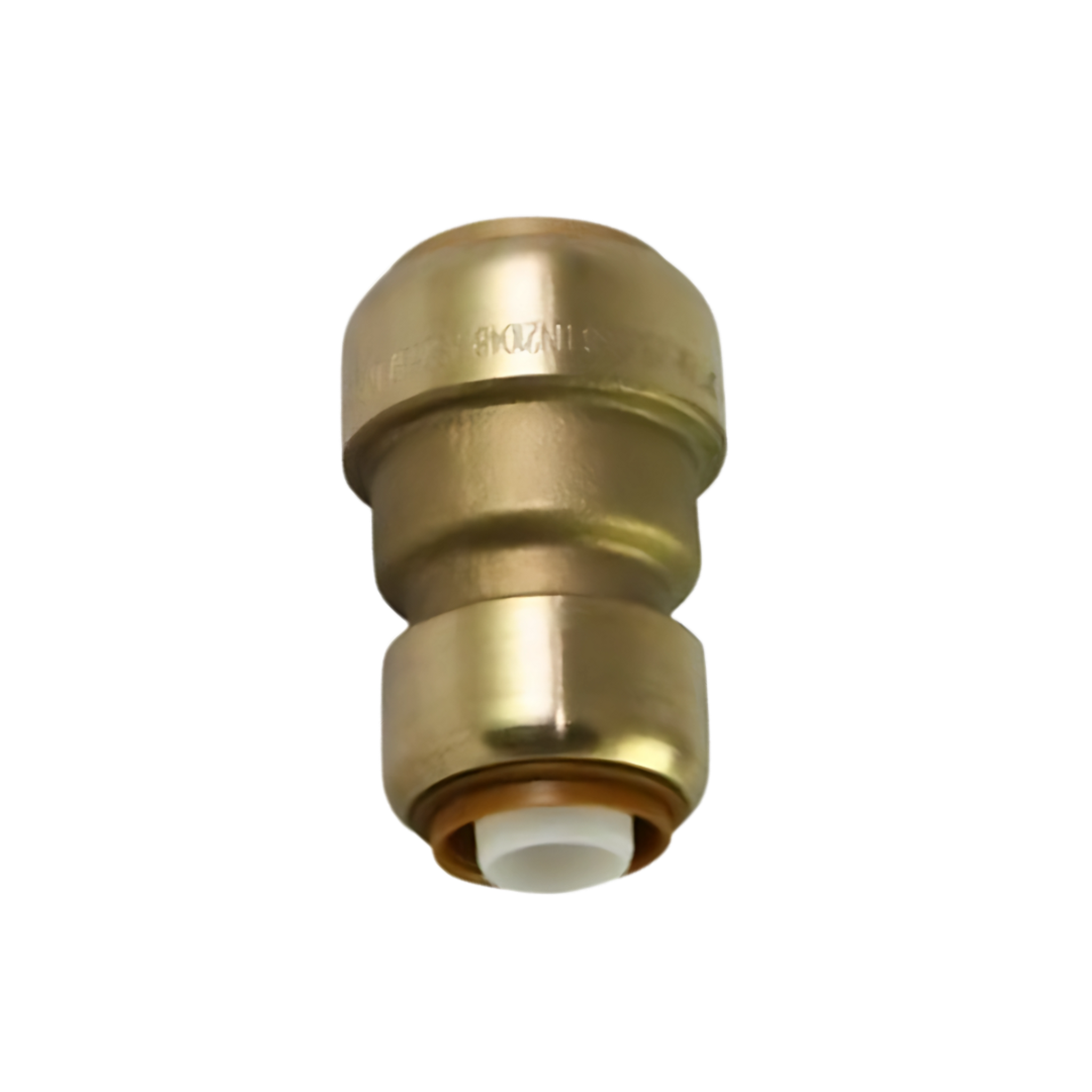

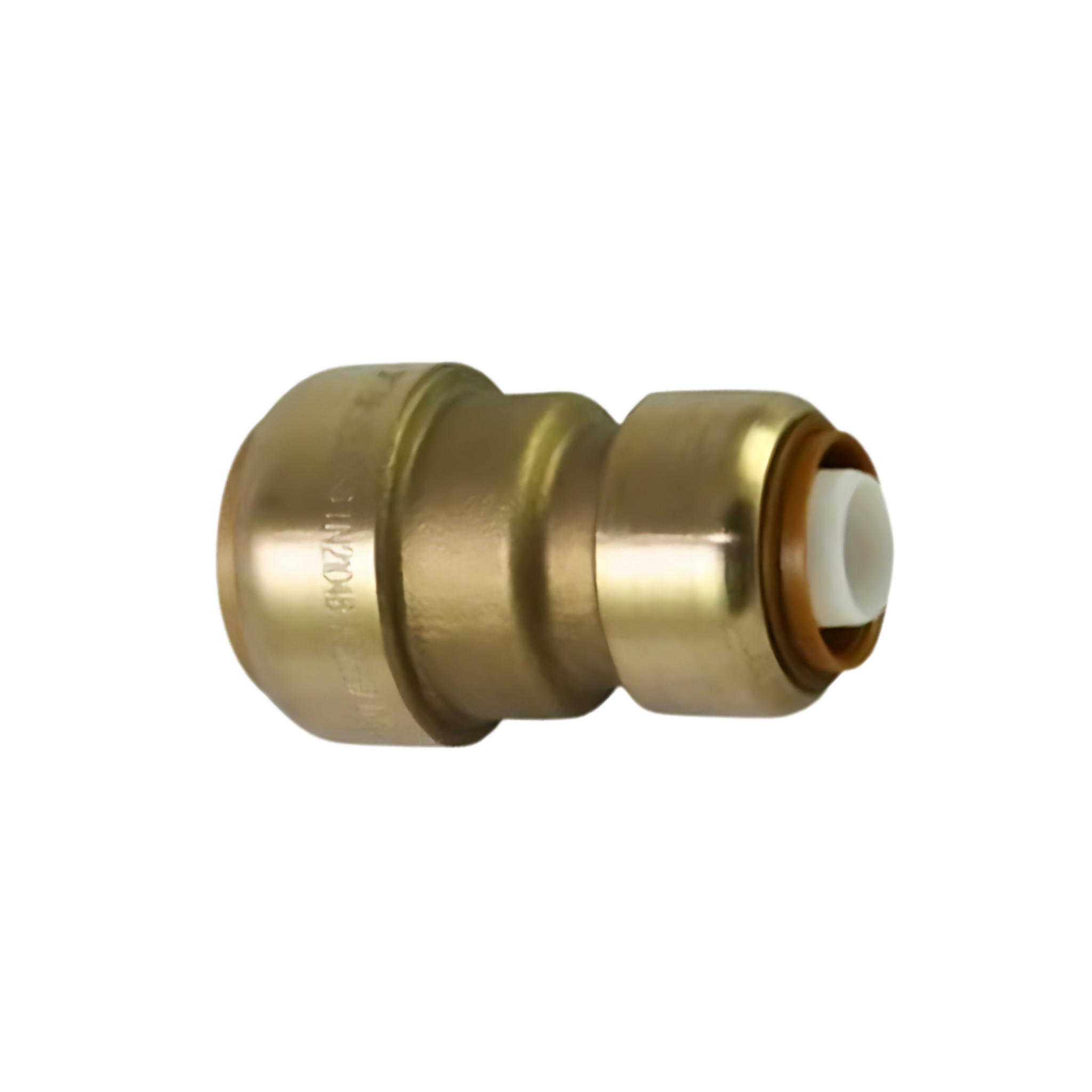

SharkBite® Reducing Coupling

The SharkBite® Reducing Coupling is designed to join pipes of different sizes quickly and securely. Also known as Yorkflex or SharkBite Connectors, these fittings provide a reliable push-to-connect solution without the need for soldering, clamps, unions, or glue.

Made from solid forged DZR brass, the coupling is durable, corrosion-resistant, and compliant with Australian standards. It is suitable for potable water, hydronic heating, and installations underground or behind walls. The integral tube liner ensures a secure connection for PEX pipes, and fittings can be rotated after assembly for easier installation in tight spaces.

Key Features:

• Joins different sized SharkBite® pipes
• Dependable push-to-connect system for fast and easy installation
• Reusable and rotatable fittings for flexibility
• Solid forged DZR brass body for strength and corrosion resistance
• Certified to AS/NZS2537 and AS/NZS4020 standards
• Approved for potable water, hydronic heating, underground use, and behind walls
• Working pressure: 1600 kPa at 20°C / 800 kPa at 95°C
• Compatible with various plastic systems and copper using conversion connections

Variants Available:

• SYF058 — 20mm x 16mm PEX

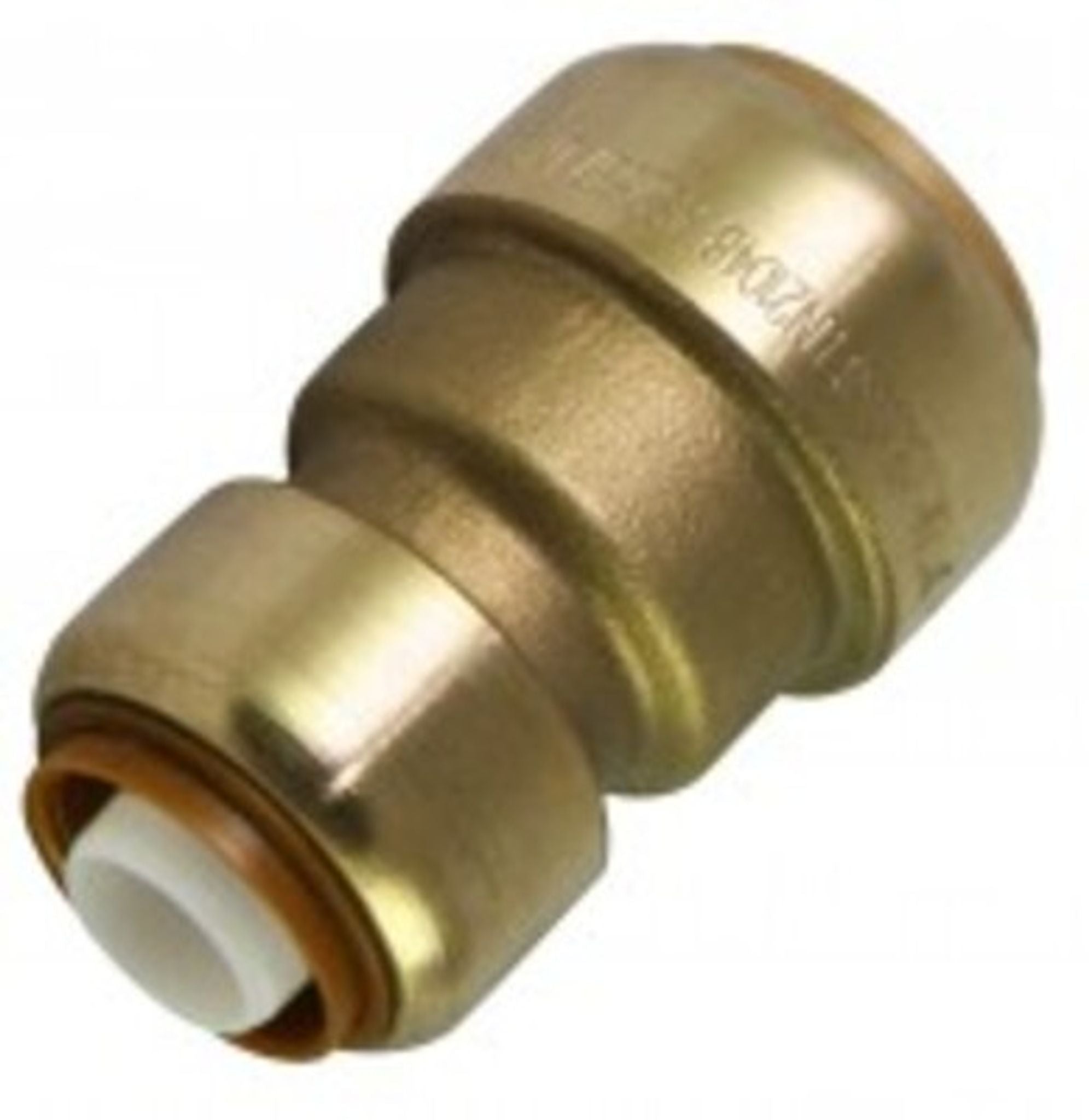

• SYF060 — 25mm x 20mm PEX
