Reducing Male Elbow

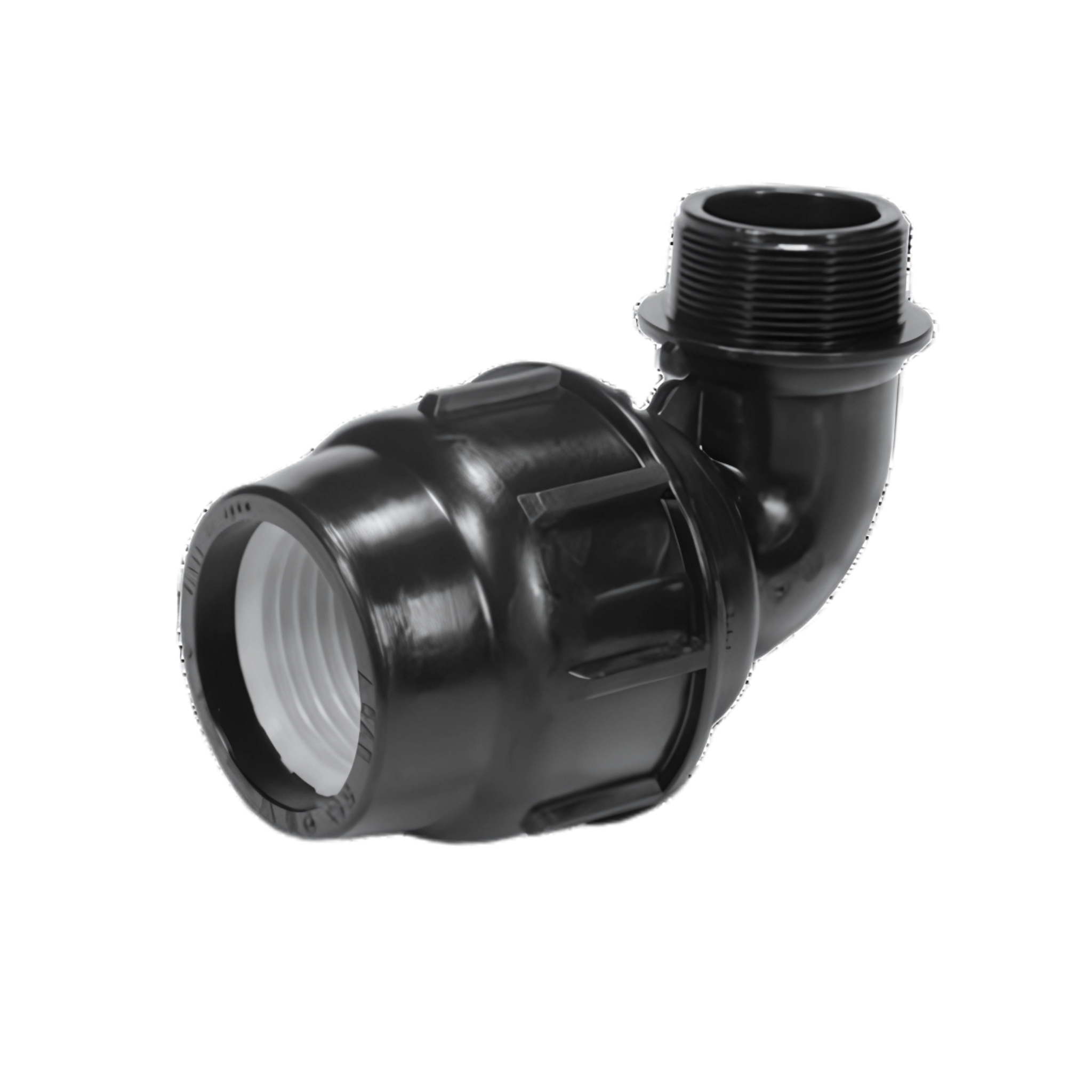

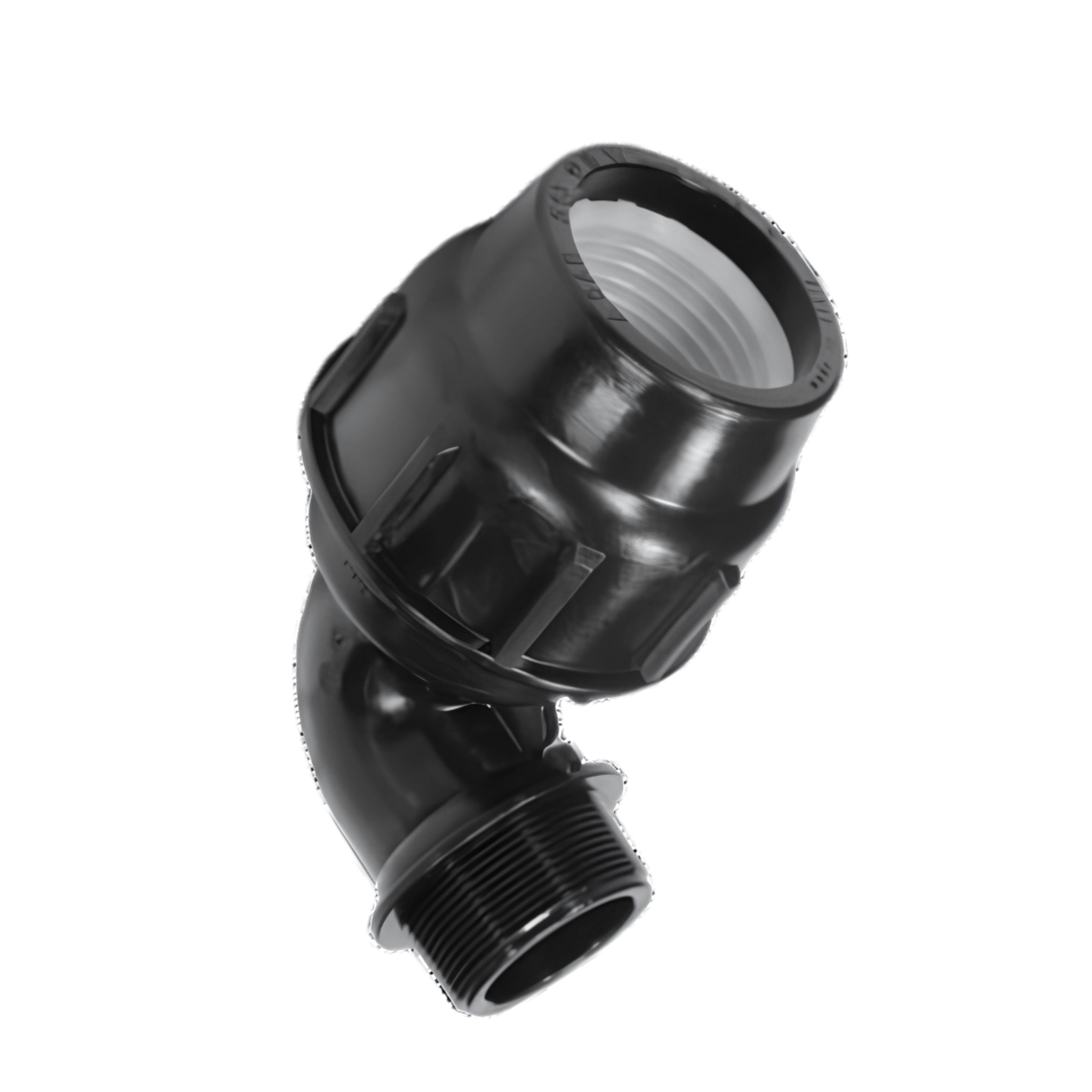

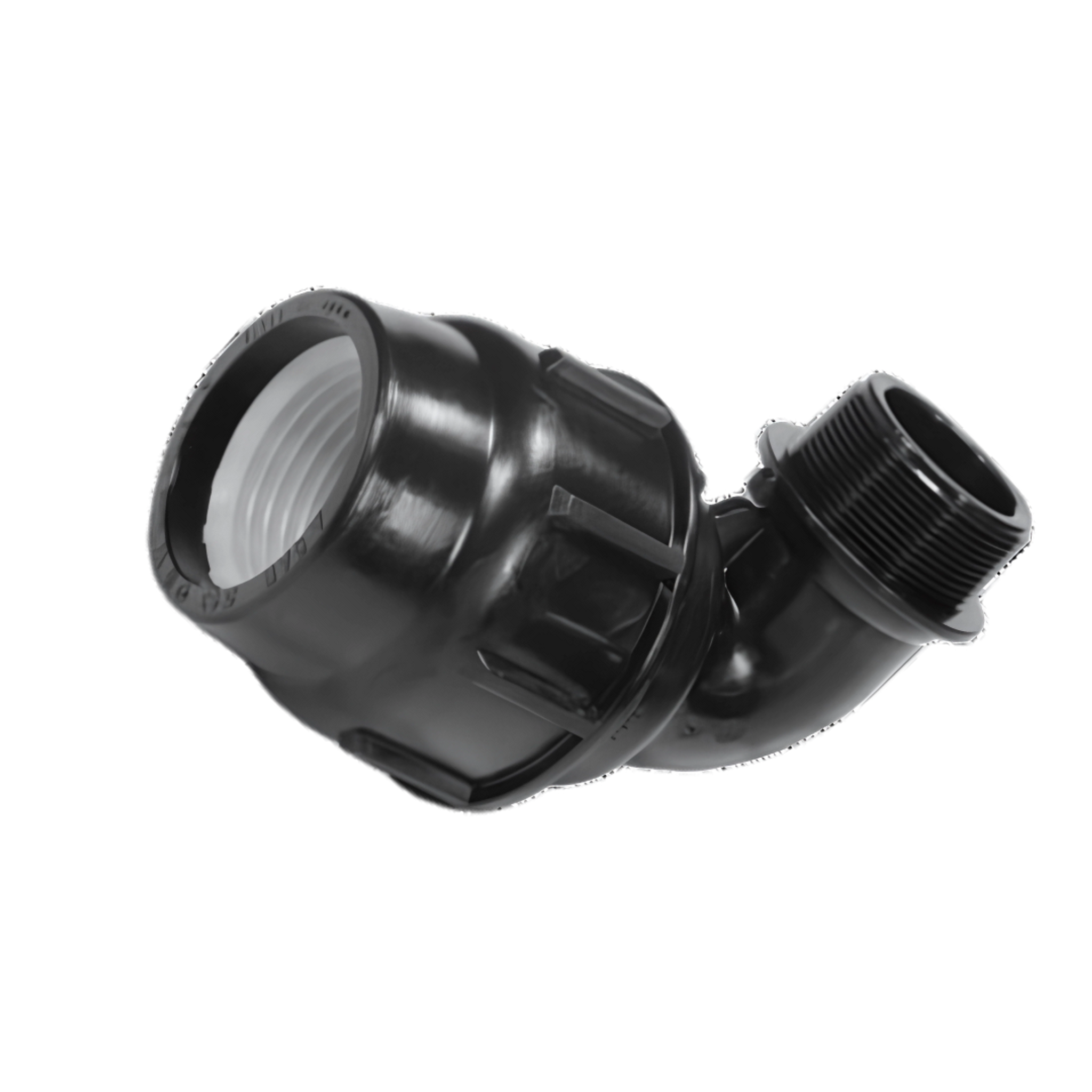

Poly Metric Reducing Male Elbow

Plasson Compression Fittings are engineered for connecting PE pipe across a wide range of applications, offering durability, strength, and ease of installation. This reducing male elbow provides a 90° connection from poly pipe to a female threaded fitting, allowing a reduction in pipe size.

Key Features:

• 90° reducing male elbow for poly pipe systems
• Designed for use in plumbing, irrigation, mining, civil, gas, industrial, and wastewater applications
• Compatible with all Metric PE pipe
• Not interchangeable with other poly compression fittings
• Leak-free compression seal with O-ring technology
• UV, chemical, and corrosion resistant
• High performance and long service life

Specifications:

• Body Material: Polypropylene
• Ring (Female BSP connections): Stainless Steel
• Flanged Connections: Zinc-coated steel
• Compliance: Designed for PE pipe systems
• Applications: Potable water, irrigation, mining, civil, gas, and industrial fluid transfer
• Pressure Rating: Up to PN16 (1600 kPa / 235 psi)
• Installation Note: Licensed plumber required for mains-connected pipework

Variants:

• PBM202 — Metric 7850 Male Elbow 20P x 12MM MI (MEL)
• PBM205 — Metric 7850 Male Elbow 25P x 12MM MI (MEL)
• PBM206 — Metric 7850 Male Elbow 25P x 20MM MI (MEL)
• PBM208 — Metric 7850 Male Elbow 32P x 20MM MI (MEL)
• PBM209 — Metric 7850 Male Elbow 32P x 25MM MI (MEL)
• PBM213 — Metric 7850 Male Elbow 40P x 32MM MI (MEL)
• PBM217 — Metric 7850 Male Elbow 50P x 40MM MI (MEL)
• PBM2181 — Metric 7850 Male Elbow 63P x 50MM MI (MEL)
