Saniflo Sanicubic Macerator Pump SA107WP

Saniflo Sanicubic 1 WP Macerator Pump – SA107WP
Heavy-Duty Macerator for Granny Flats & Multi-Fixture Domestic Installations

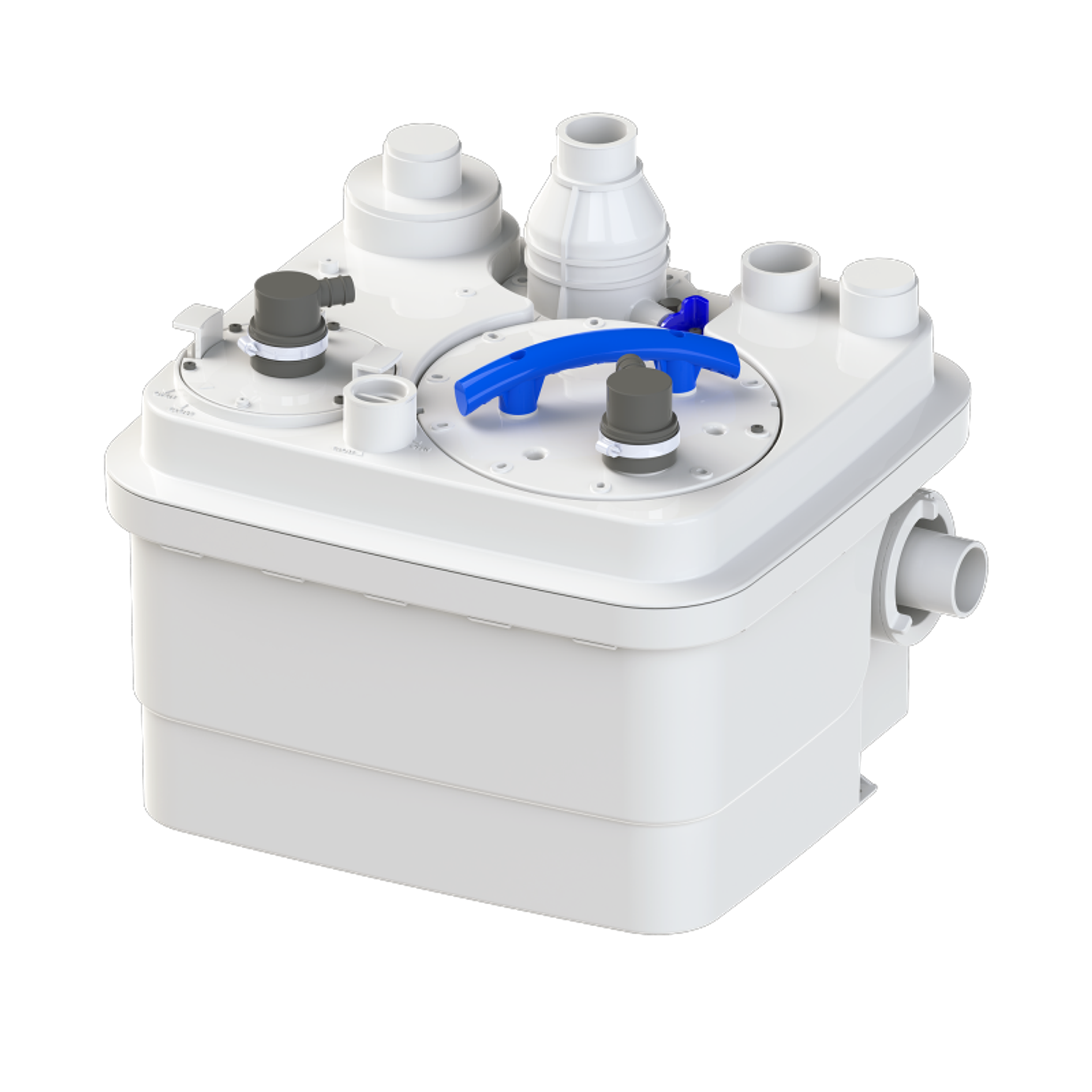

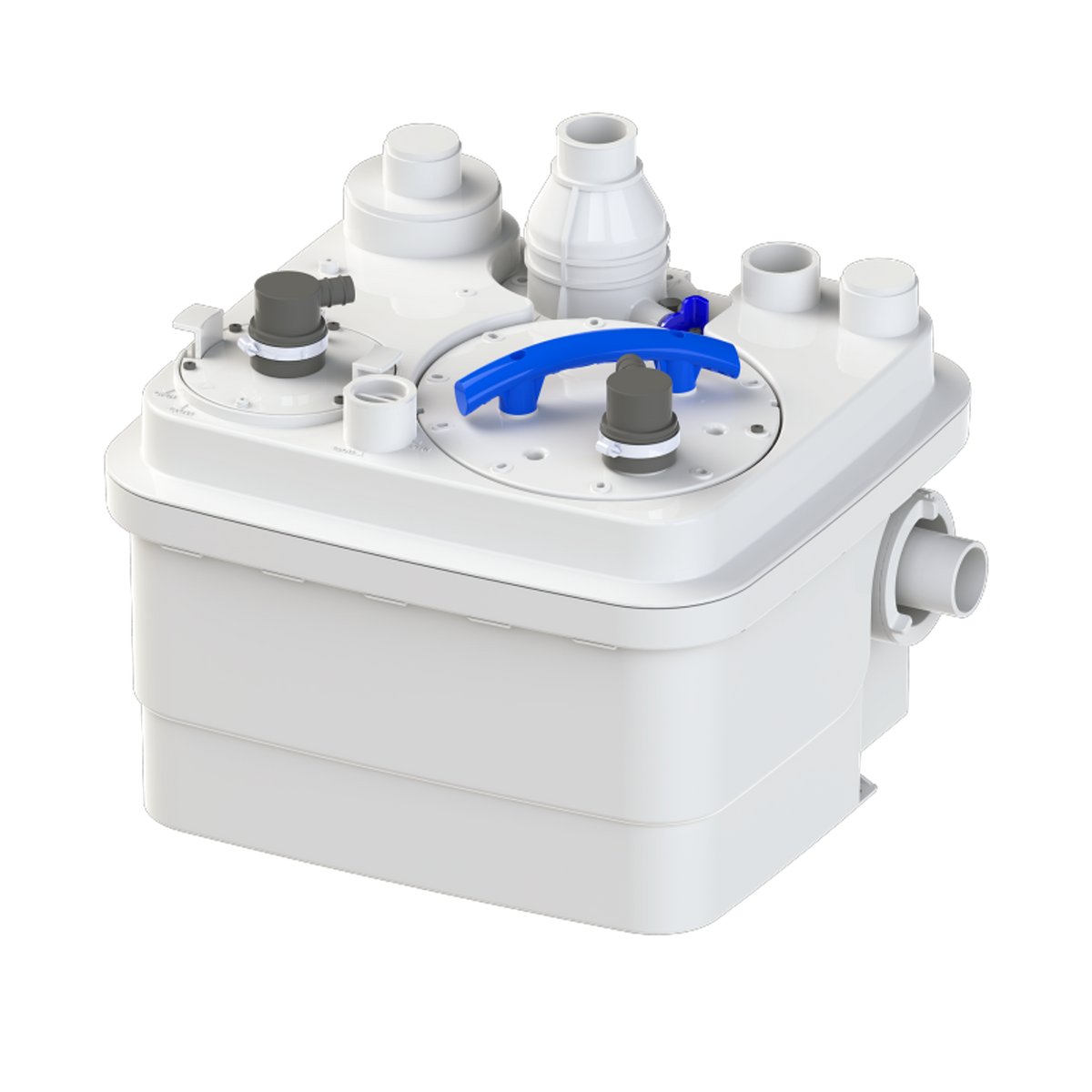

The Saniflo Sanicubic 1 WP is a robust, high-capacity lifting station designed for domestic use, particularly where multiple wastewater fixtures need to be connected—such as in granny flats, studios, or full bathroom conversions. With its IP68 waterproof rating, the unit offers top-tier protection and reliability in demanding residential environments.

Featuring a powerful 1500W motor and an integrated grinder impeller, the Sanicubic 1 WP efficiently handles wastewater from showers, basins, sinks, dishwashers, toilets, and washing machines.

Key Features

• Designed for granny flats and multi-fixture installations
• Powerful 1500W motor with high flow capacity
• Built-in grinder for reliable maceration of solid waste
• IP68 waterproof rated for maximum durability and protection
• Handles high temperatures: up to 70°C for 5 minutes
• Easy to install with multiple inlet options (40, 50, 100, 110 mm)
• Includes pneumatic activation and high-level alarm protection

Technical Specifications

• Electrical
• Voltage: 230 V
• Frequency: 50–60 Hz
• Power Consumption (P1): 1500 W
• Power Output (P2): 1050 W
• IP Rating: IP68
• Mode of Operation: S3 30%

Hydraulic Performance

Max. Head: 13 m

• Max. Flow Rate: 15 m³/h
• Discharge Pipework: 50 mm
• External Ventilation Diameter: 50 mm
• ON/OFF Level: 140 mm / 70 mm
• Alarm Activation Level: 210 mm
• Max. Incoming Temperature: 70°C (5 min)

Dimensions & Build

• Tank Material: PP
• Motor & Pump Housing: PA 12 GF
• Total Volume: 32 L
• Useable Volume: 10 L
• Gross Weight: 23 kg
• Barcode: 3308815074436
• Factory Code: CUBIC1IP68NM

Applications

• Granny flats
• Small dwellings
• Renovated homes
• Basement bathrooms
• Multi-outlet installations

The Sanicubic 1 WP offers a compact yet powerful solution for managing grey and black water in residential properties where gravity-fed drainage isn't possible.
