Stormwater 15 Degree Bend FF

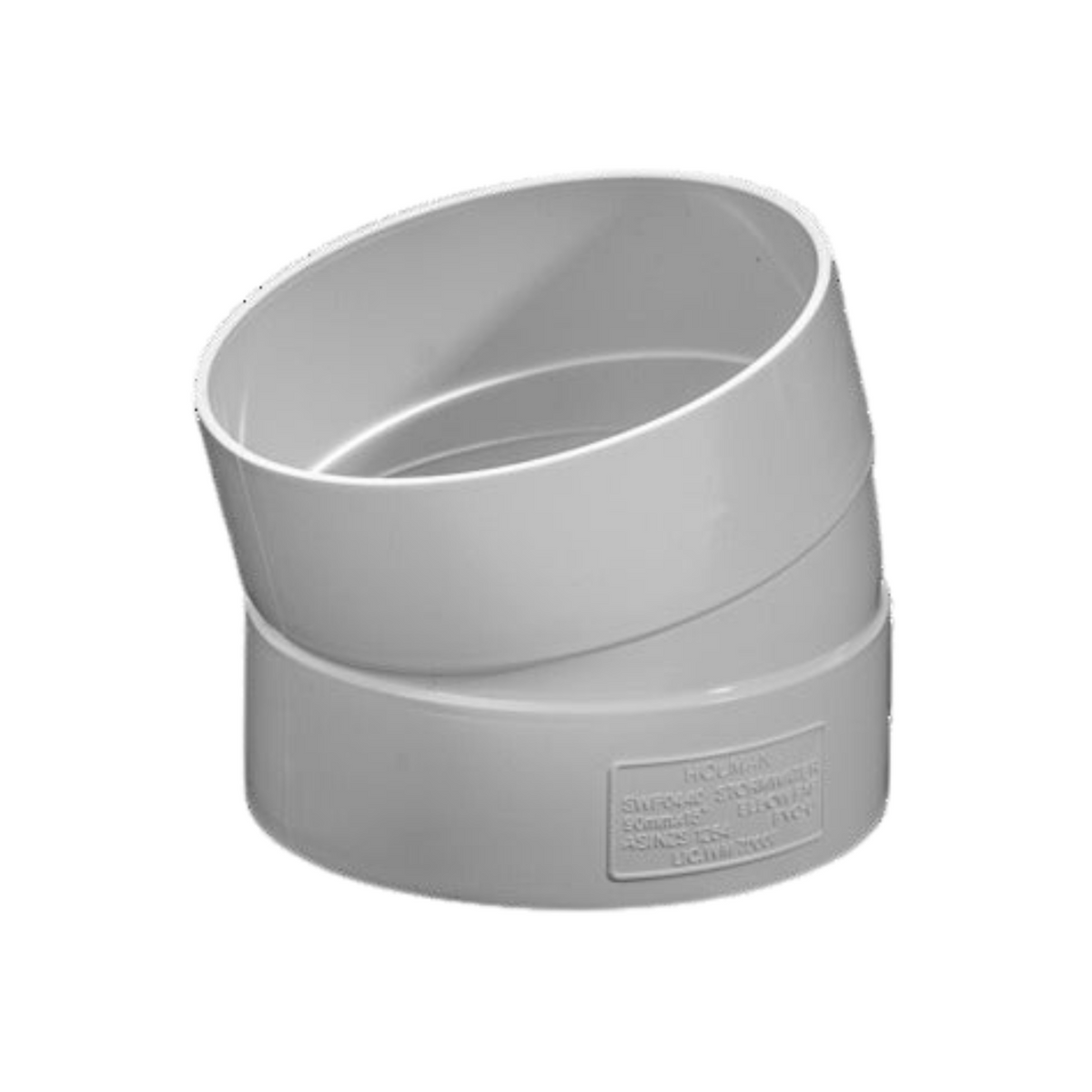

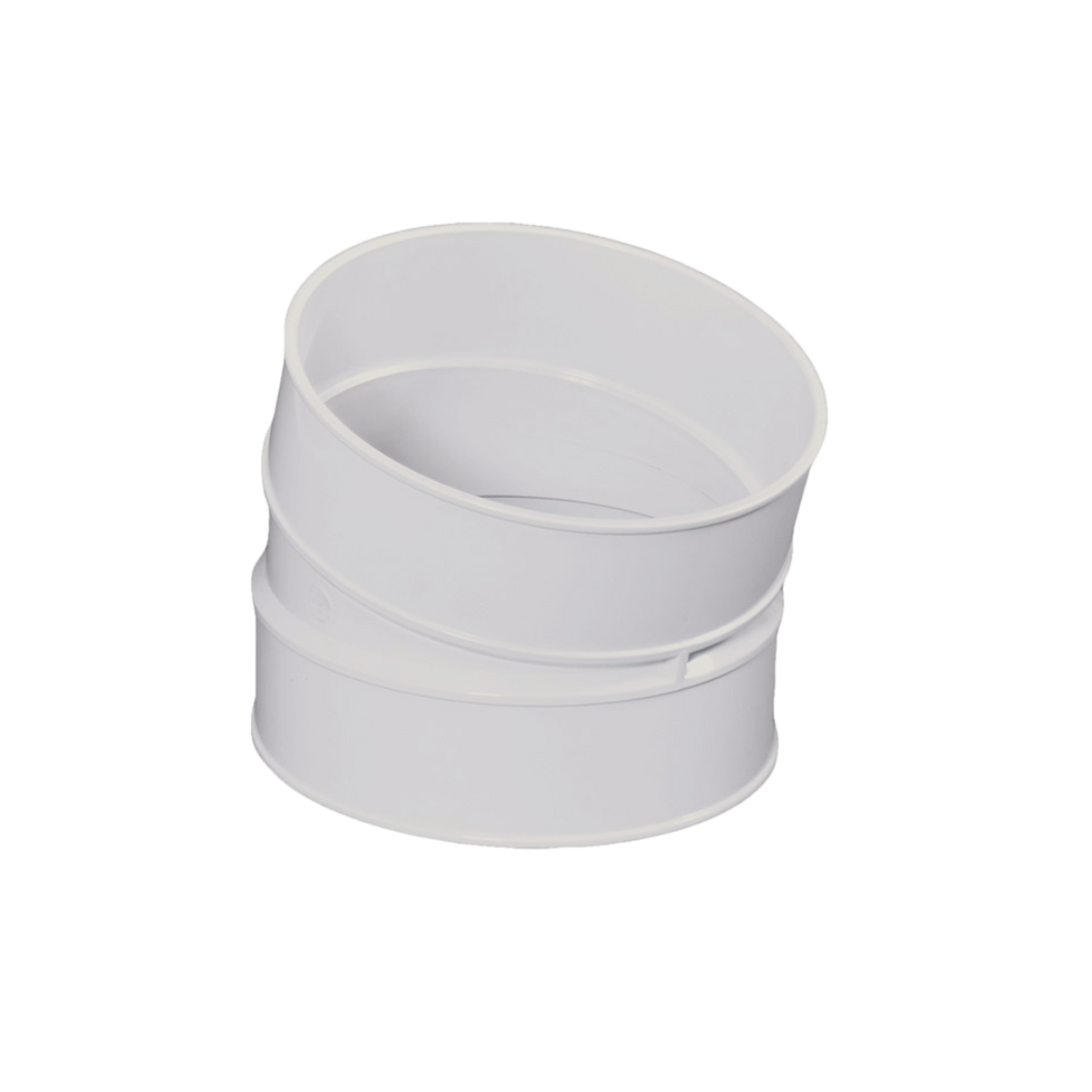

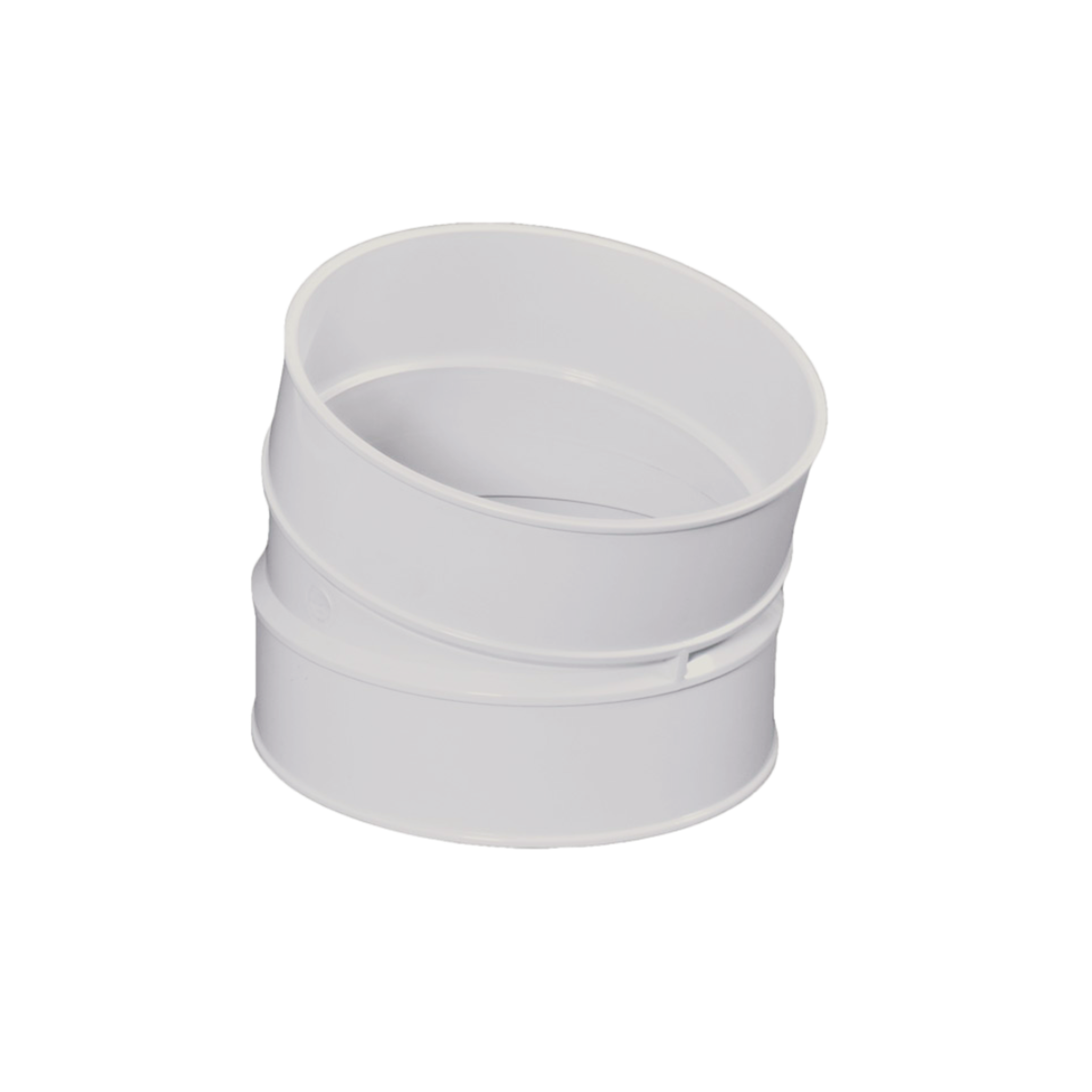

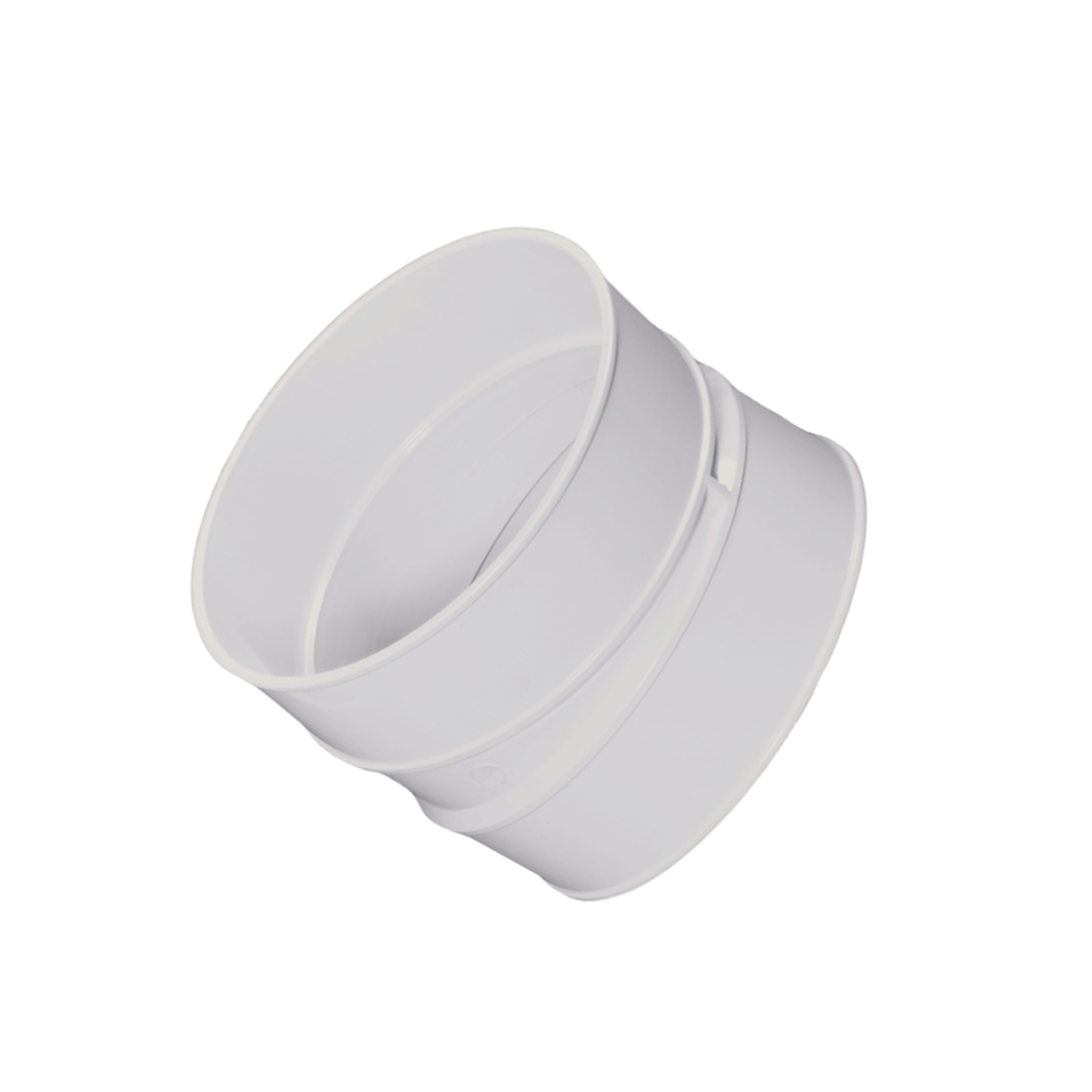

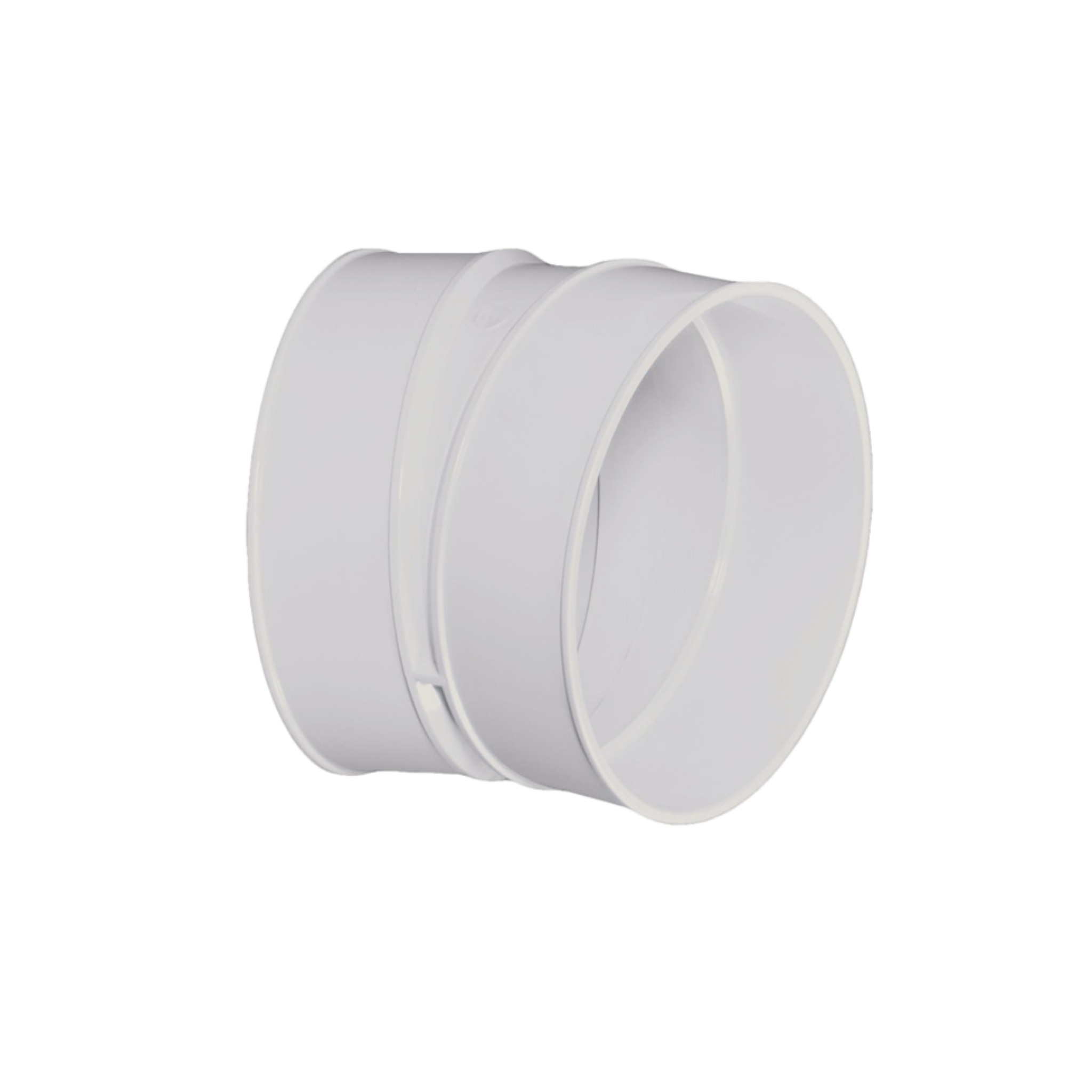

Stormwater 15° Bend FF – PVC-U

Stormwater 15° FF (Female-Female) Bends are designed to allow gradual directional changes in stormwater pipe systems. Manufactured from rigid PVC-U, these bends provide a durable and reliable solution for domestic, commercial, and civil stormwater drainage applications.

Both ends of the fitting are female, allowing pipes to be inserted securely into the bend. These bends are ideal for guiding rainwater from gutters and downpipes toward the legal point of discharge.

Key Features

• Durable PVC-U Construction – Resistant to corrosion, chemicals, and biological growth.
• 15° Angle – Allows smooth, gradual directional changes in pipework.
• Female-Female (FF) Ends – Both ends accommodate standard stormwater pipes.
• Wide Application – Compatible with 90mm, 150mm, and 225mm stormwater pipes.
• Solvent Cement Jointing – SCJ system ensures strong, leak-free connections.
• Above-Ground or Underground Use – Suitable for all stormwater installations.
• UV & Temperature Resistant – Can be exposed to sunlight; recommended temperature range 0–50°C.
• Compliance – Manufactured to AS/NZS 1254 standards.

Specifications

• Material: PVC-U (unplasticised PVC)
• Pipe Connection Type: Female x Female (FF)
• Angle: 15°
• Sizes Available: 90mm, 150mm, 225mm
• Installation: Solvent Cement Joint (allow 24-hour setting)
• Applications: Stormwater drainage, gutter connections, downpipe adaptation
• Pipe Length Compatibility: Works with 6m PVC-U pipes

Variants (SKU – Size)

• PSW005 — 90mm FF x 15°
• PSW010 — 150mm FF x 15°
• PSW0275 — 225mm FF x 15°

Note: Pipes and fittings must be joined using solvent cement (SCJ) with a 24-hour setting period for full mechanical strength. Suitable for stormwater (rainwater) systems only.
