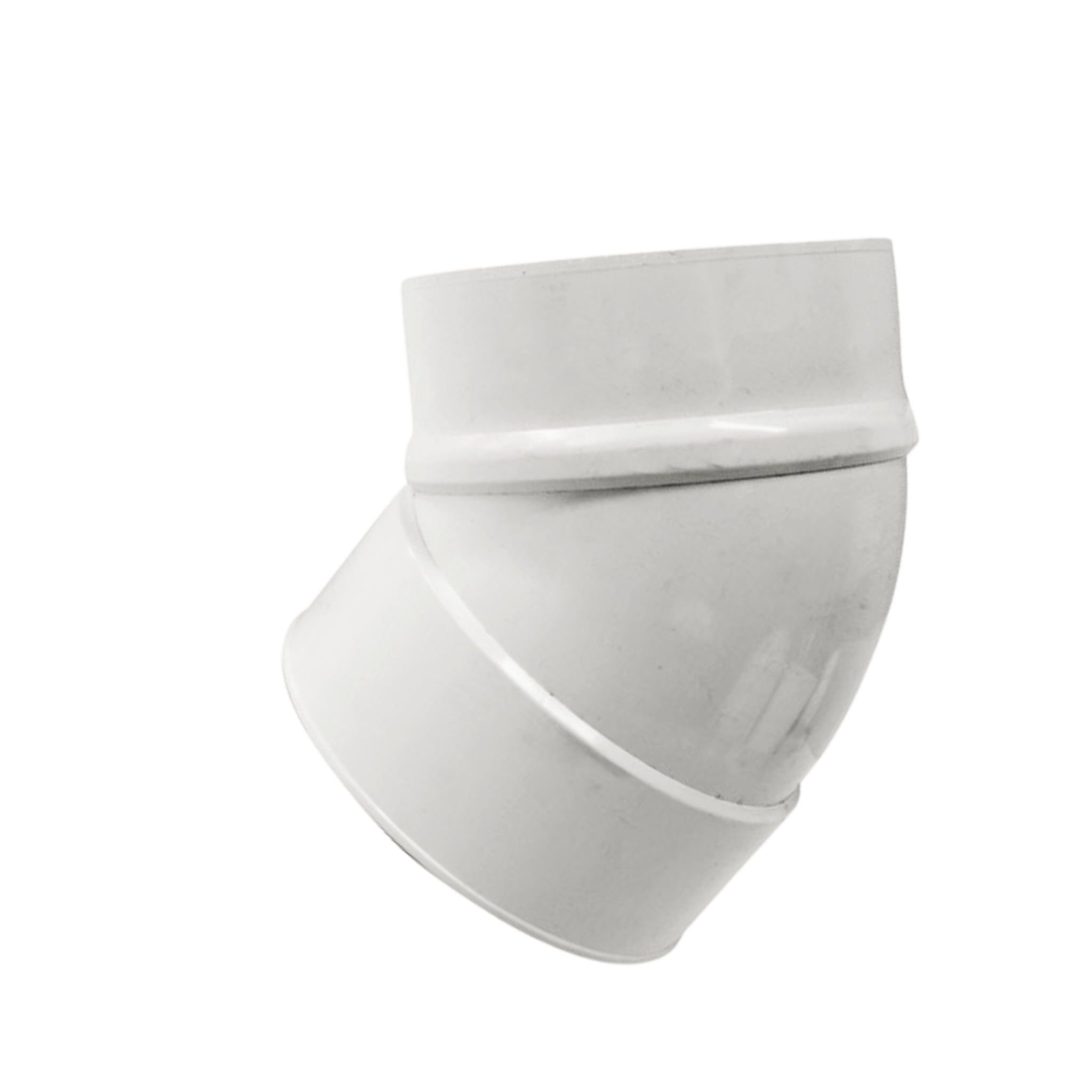

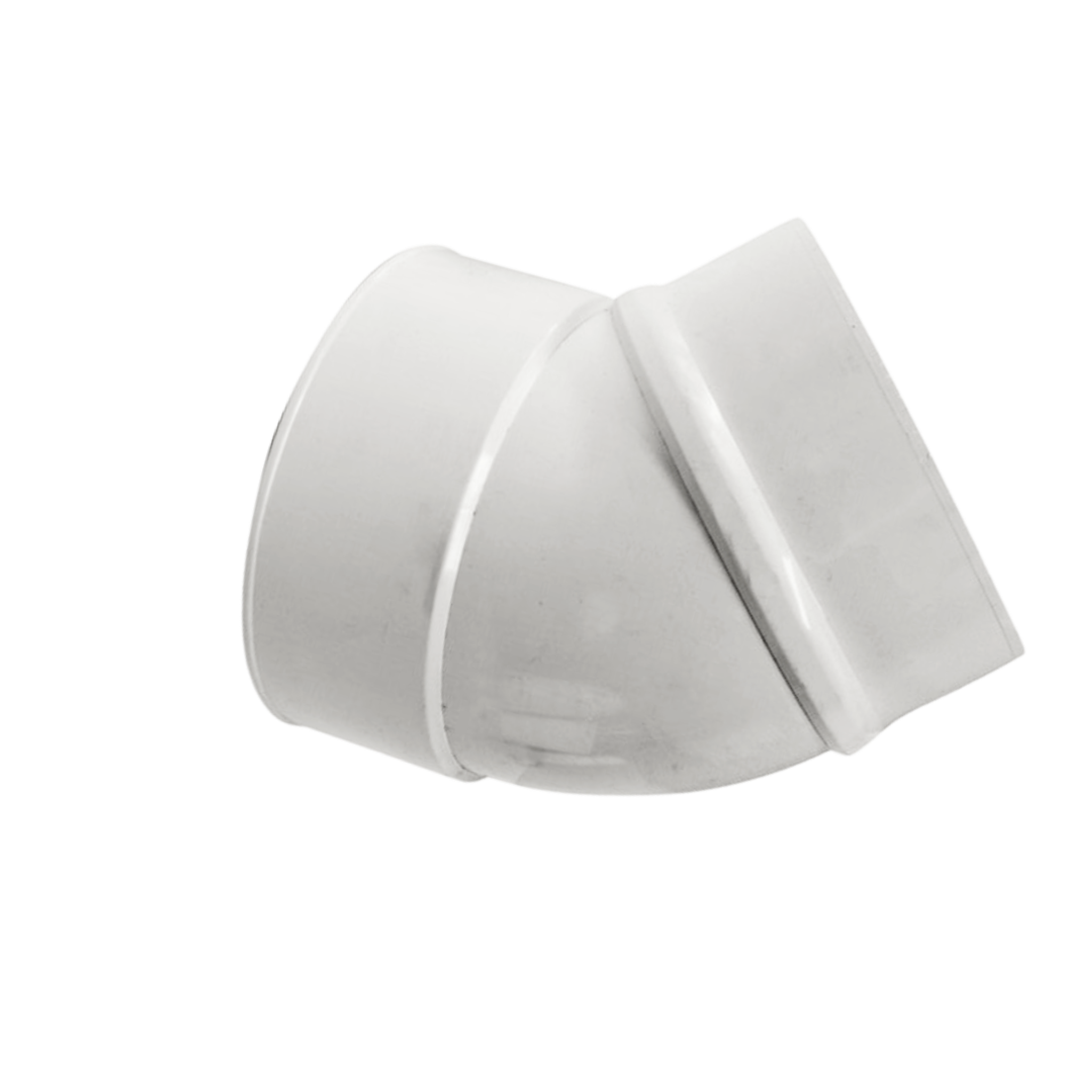

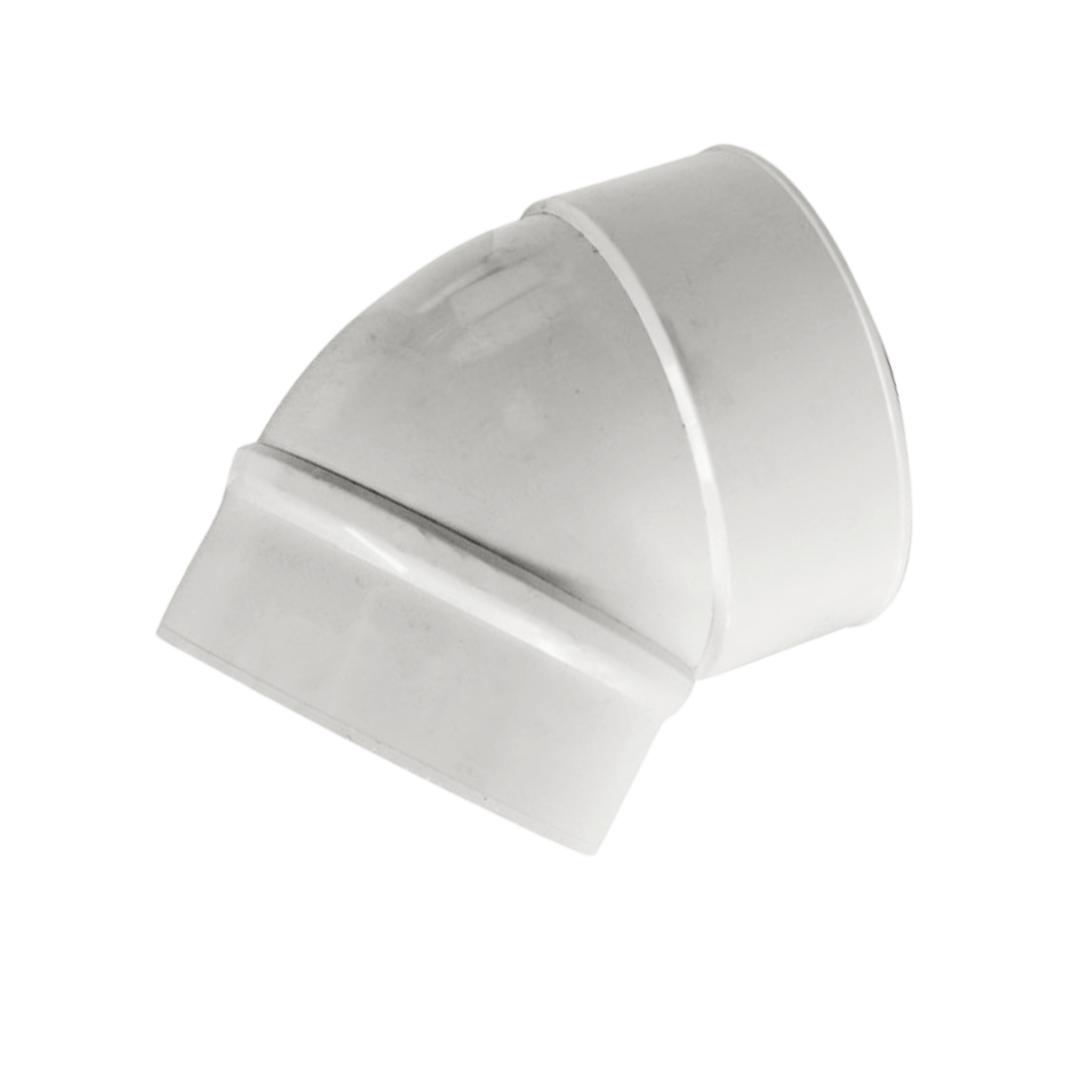

Stormwater 45 Degree Bend MF

Stormwater 45° Bend MF – PVC-U

Stormwater 45° MF (Male-Female) Bends are designed to provide a smooth directional change in stormwater pipe systems. Manufactured from rigid PVC-U, these bends are strong, corrosion-resistant, and suitable for domestic, commercial, and civil stormwater drainage applications.

Each bend features one male (insert) end and one female (socket) end, allowing secure connections with compatible PVC-U pipes and fittings. These bends are ideal for guiding rainwater from gutters and downpipes to the legal point of discharge.

Key Features

• Durable PVC-U Construction – Resistant to corrosion, chemicals, and biological growth.
• 45° Angle – Allows efficient directional changes in stormwater pipework.
• Male-Female (MF) Ends – One insert end and one socket end for secure joining.
• Wide Application – Compatible with stormwater pipes from 75mm to 375mm (90mm commonly used in domestic applications).
• Solvent Cement Jointing – SCJ system ensures strong, leak-free connections.
• Above-Ground or Underground Use – Suitable for all stormwater installations.
• UV & Temperature Resistant – Can be exposed to sunlight; recommended temperature range 0–50°C.
• Compliance – Manufactured to AS/NZS 1254 standards.

Specifications

• Material: PVC-U (unplasticised PVC)
• Pipe Connection Type: Male x Female (MF)
• Angle: 45°
• Sizes Available: 90mm, 150mm, 225mm
• Installation: Solvent Cement Joint (allow 24-hour setting)
• Applications: Stormwater drainage, gutter connections, downpipe adaptation
• Pipe Length Compatibility: Works with 6m PVC-U pipes

Variants (SKU – Size)

• PSW024 — 90mm MF x 45°
• PSW026 — 150mm MF x 45°
• PSW027B — 225mm MF x 45°

Note: Pipes and fittings must be joined using solvent cement (SCJ) with a 24-hour setting period for full mechanical strength. Designed for stormwater (rainwater) systems only.
