90 Degree Bend MF

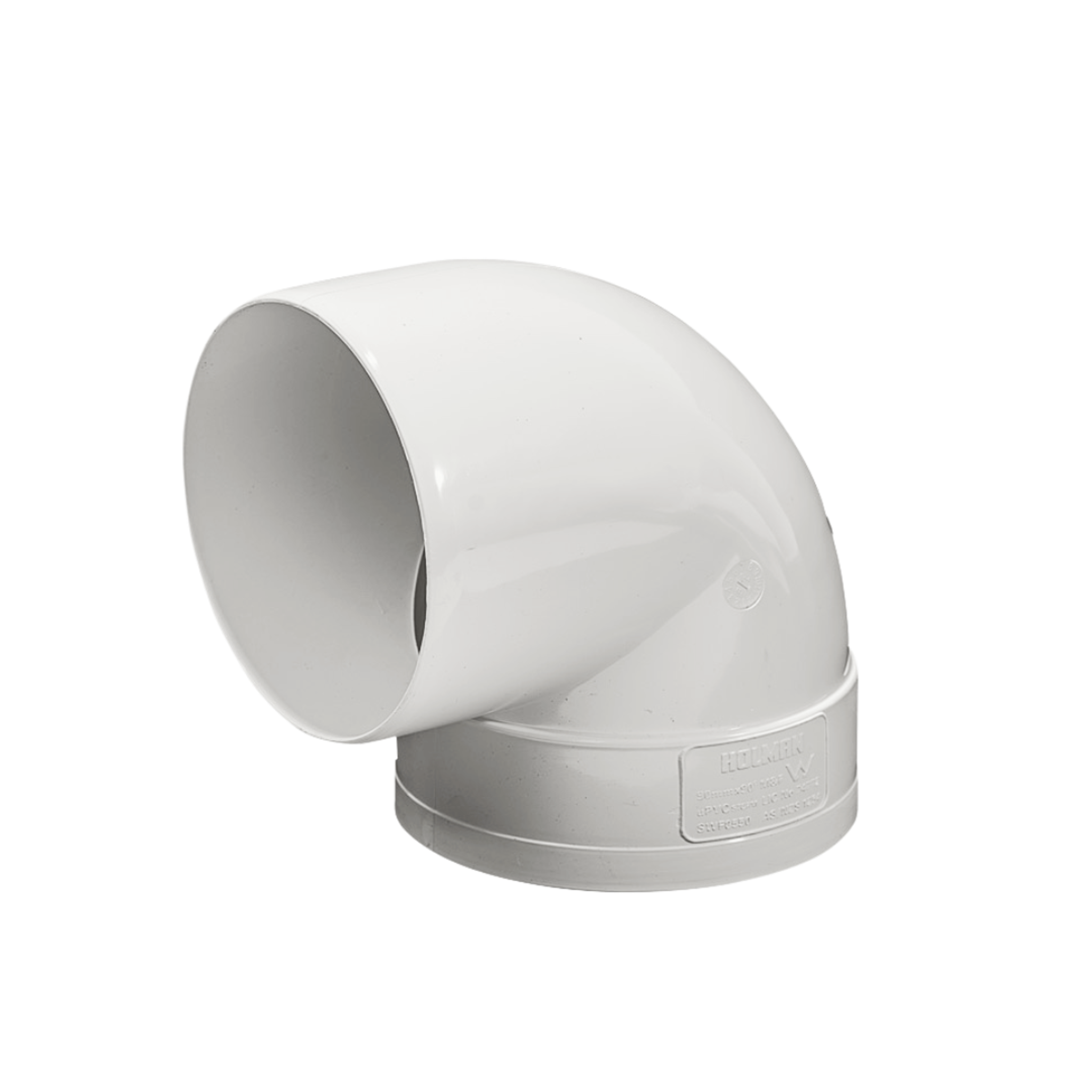

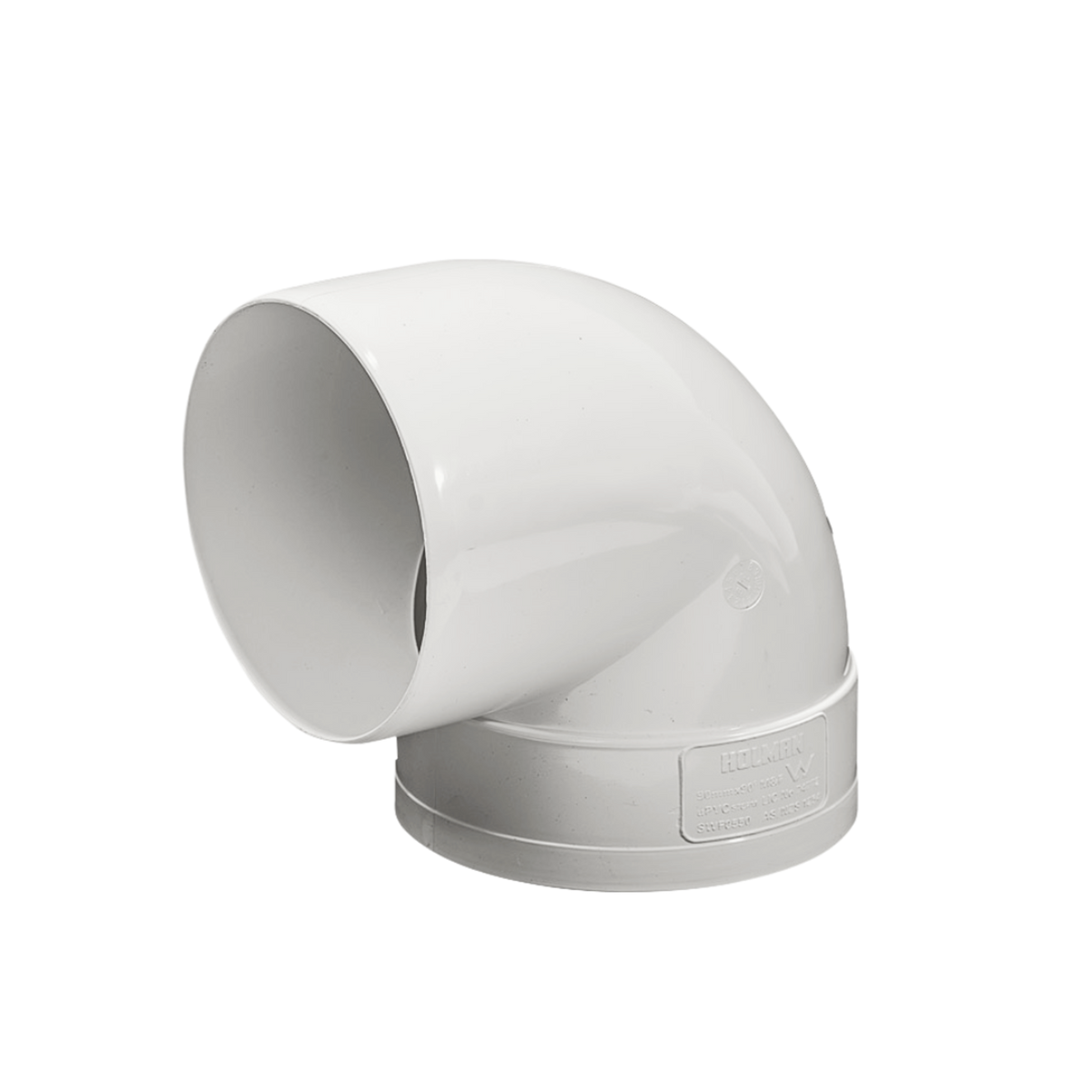

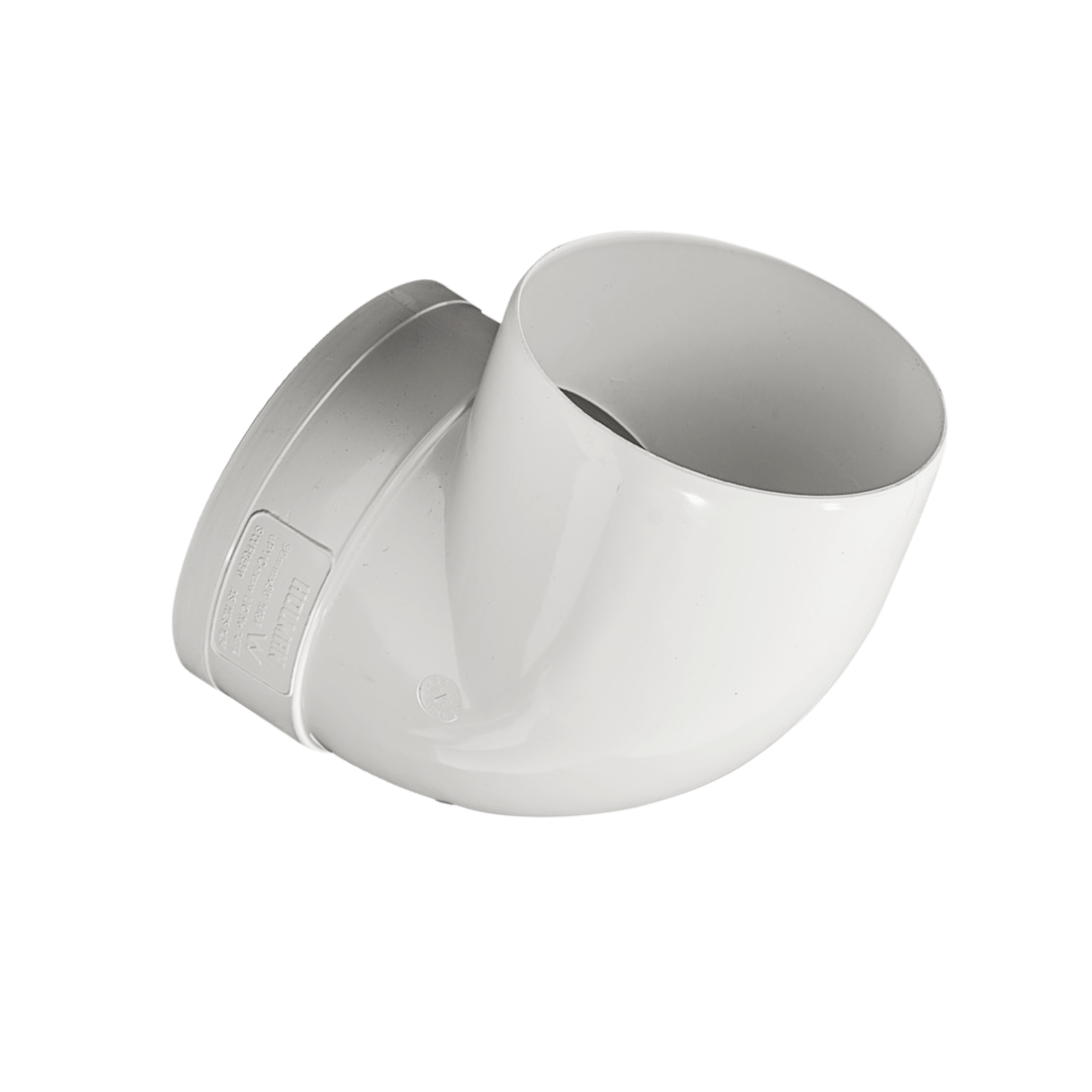

Stormwater 90° Bend MF – PVC-U

Stormwater 90° MF (Male-Female) Bends are designed to provide a sharp directional change in stormwater pipe systems. Manufactured from rigid PVC-U, these bends are strong, durable, and resistant to corrosion, chemicals, and biological growth, making them suitable for domestic, commercial, and civil stormwater drainage applications.

Each bend features one male (insert) end and one female (socket) end, allowing secure connections with compatible PVC-U pipes and fittings. These bends are ideal for guiding rainwater from gutters and downpipes to the legal point of discharge.

Key Features

• Durable PVC-U Construction – Resistant to corrosion, chemicals, and biological growth.
• 90° Angle – Provides a sharp directional change in stormwater pipework.
• Male-Female (MF) Ends – One insert end and one socket end for secure joining.
• Wide Application – Compatible with stormwater pipes from 75mm to 375mm (90mm most common for domestic use).
• Solvent Cement Jointing – SCJ system ensures strong, leak-free connections.
• Above-Ground or Underground Use – Suitable for all stormwater installations.
• UV & Temperature Resistant – Can be exposed to sunlight; recommended temperature range 0–50°C.
• Compliance – Manufactured to AS/NZS 1254 standards.

Specifications

• Material: PVC-U (unplasticised PVC)
• Pipe Connection Type: Male x Female (MF)
• Angle: 90° (typically manufactured slightly less, 85–88°, to promote drainage)
• Sizes Available: 90mm, 150mm, 225mm
• Installation: Solvent Cement Joint (allow 24-hour setting)
• Applications: Stormwater drainage, gutter connections, downpipe adaptation
• Pipe Length Compatibility: Works with 6m PVC-U pipes

Variants (SKU – Size)

• PSW095 — 90mm MF x 90°

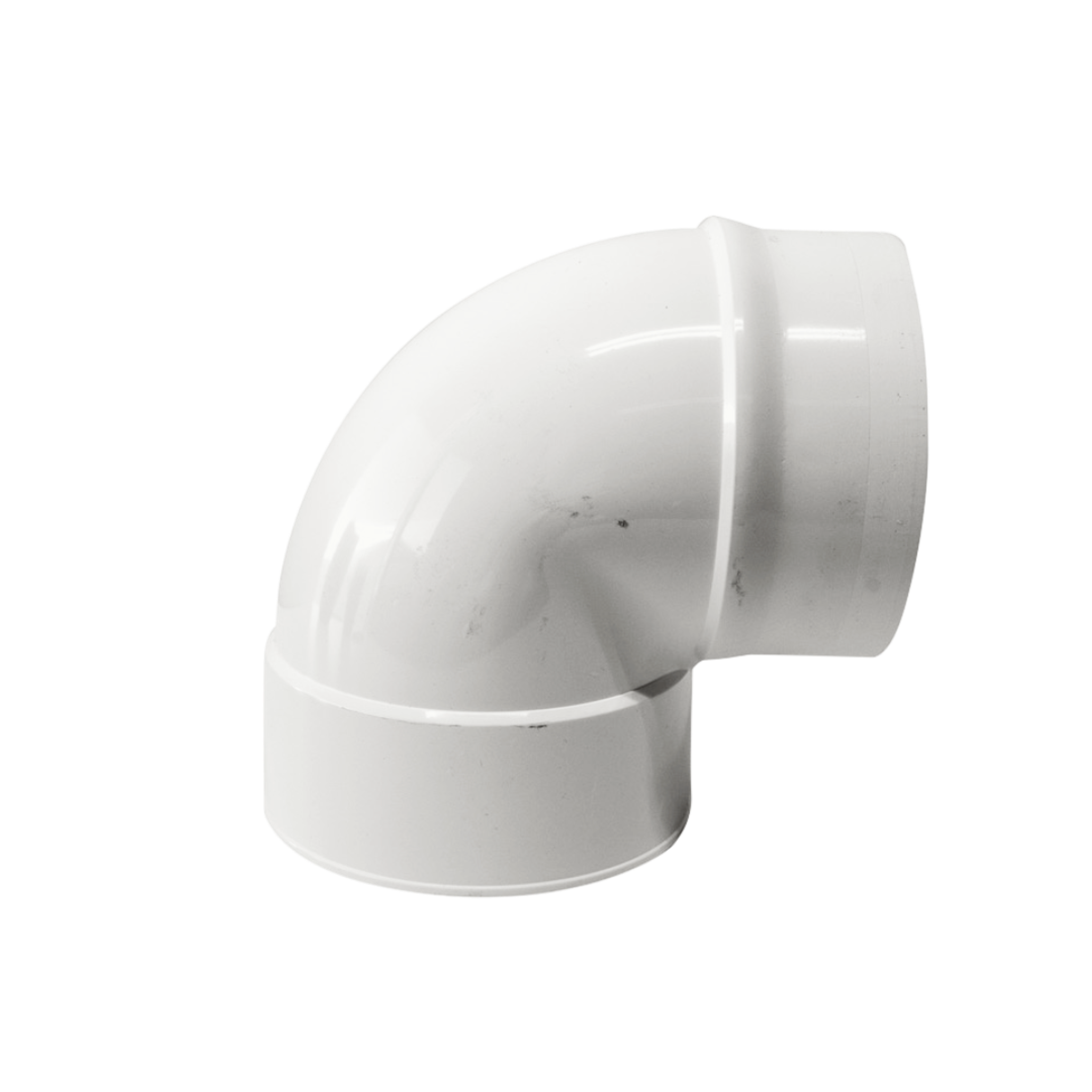

• PSW027 — 150mm MF x 90°
• PSW027C — 225mm MF x 90° Plain Bend

Note: Pipes and fittings must be joined using solvent cement (SCJ) with a 24-hour setting period for full mechanical strength. Designed for stormwater (rainwater) systems only.
