Reducer MF

Stormwater Reducer MF – PVC-U

Stormwater Reducers MF (Male-Female) are designed to connect pipes of different diameters within a stormwater system, providing a smooth transition from a larger pipe to a smaller pipe. Each reducer features a male end that inserts into a fitting or pipe and a female end that receives the smaller diameter pipe, ensuring a secure, leak-free connection.

Manufactured from rigid PVC-U, these reducers are durable, corrosion-resistant, and suitable for both domestic and commercial stormwater drainage applications.

Key Features

• Durable PVC-U Construction – Resistant to corrosion, chemicals, and biological growth.
• Male-Female (MF) Connection – Male end inserts into a fitting, female end receives the smaller pipe.
• Pipe Size Reduction – Commonly reduces larger pipes (100mm, 150mm, 300mm) to smaller pipes (90mm, 150mm).
• Wide Application – Compatible with stormwater pipes from 90mm to 300mm.
• Solvent Cement Jointing – SCJ system ensures strong, leak-free connections.
• Above-Ground or Underground Use – Suitable for all stormwater installations.
• UV & Temperature Resistant – Can be exposed to sunlight; recommended temperature range 0–50°C.
• Compliance – Manufactured to AS/NZS 1254 standards.

Specifications

• Material: PVC-U (unplasticised PVC)
• Pipe Connection Type: Male x Female (MF)
• Installation: Solvent Cement Joint (allow 24-hour setting)
• Applications: Stormwater drainage, gutter connections, downpipe adaptation
• Pipe Length Compatibility: Works with 6m PVC-U pipes

Variants (SKU – Size)

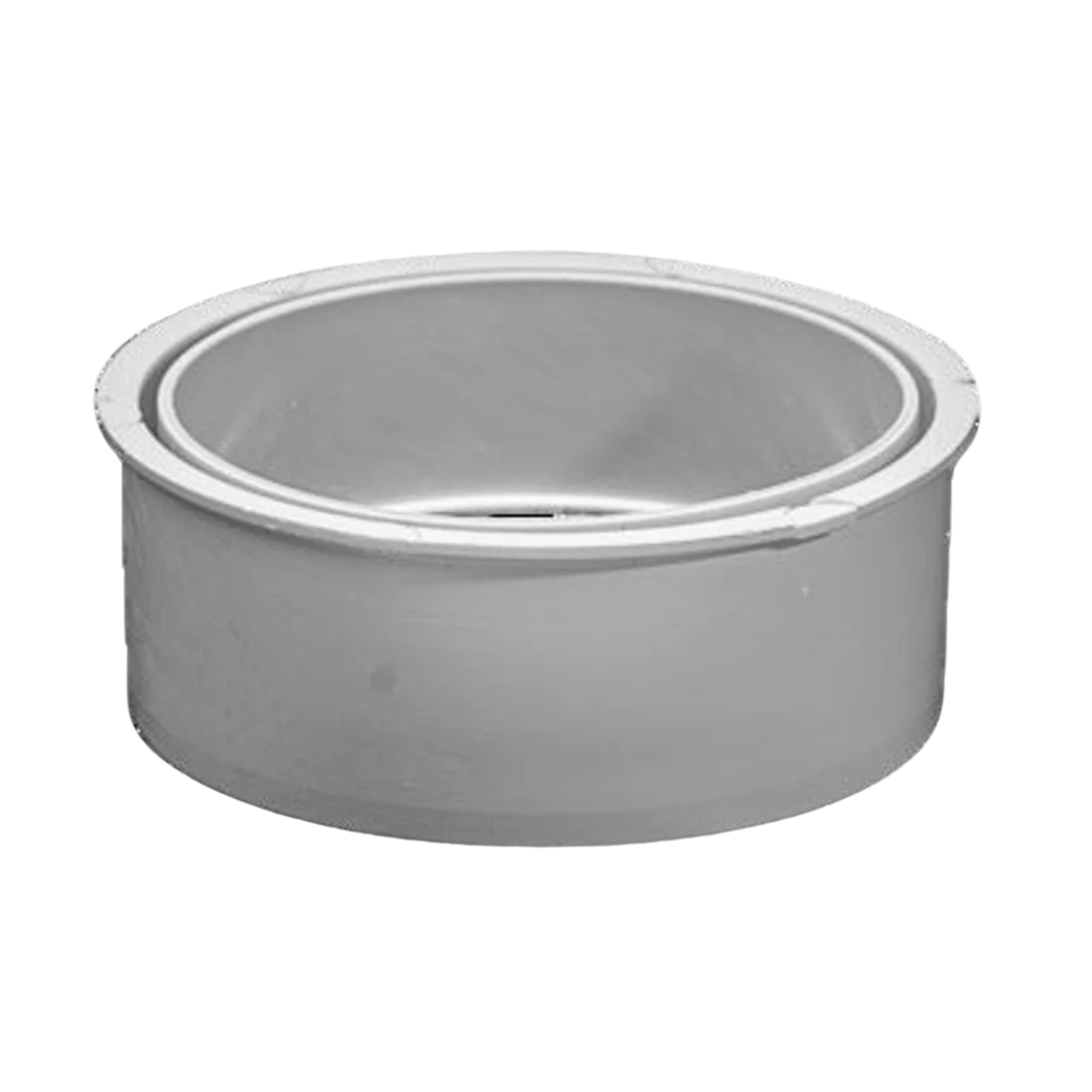

• PSW081 — 100mm x 90mm MF Pipe Reducer
• PSW085 — 300mm x 150mm MF Pipe Reducer

Note: Pipes and fittings must be joined using solvent cement (SCJ) with a 24-hour setting period for full mechanical strength. Designed for stormwater (rainwater) systems only.
