Equal Coupling TESTING CAPS FOR BREECH MALE & FEMALE

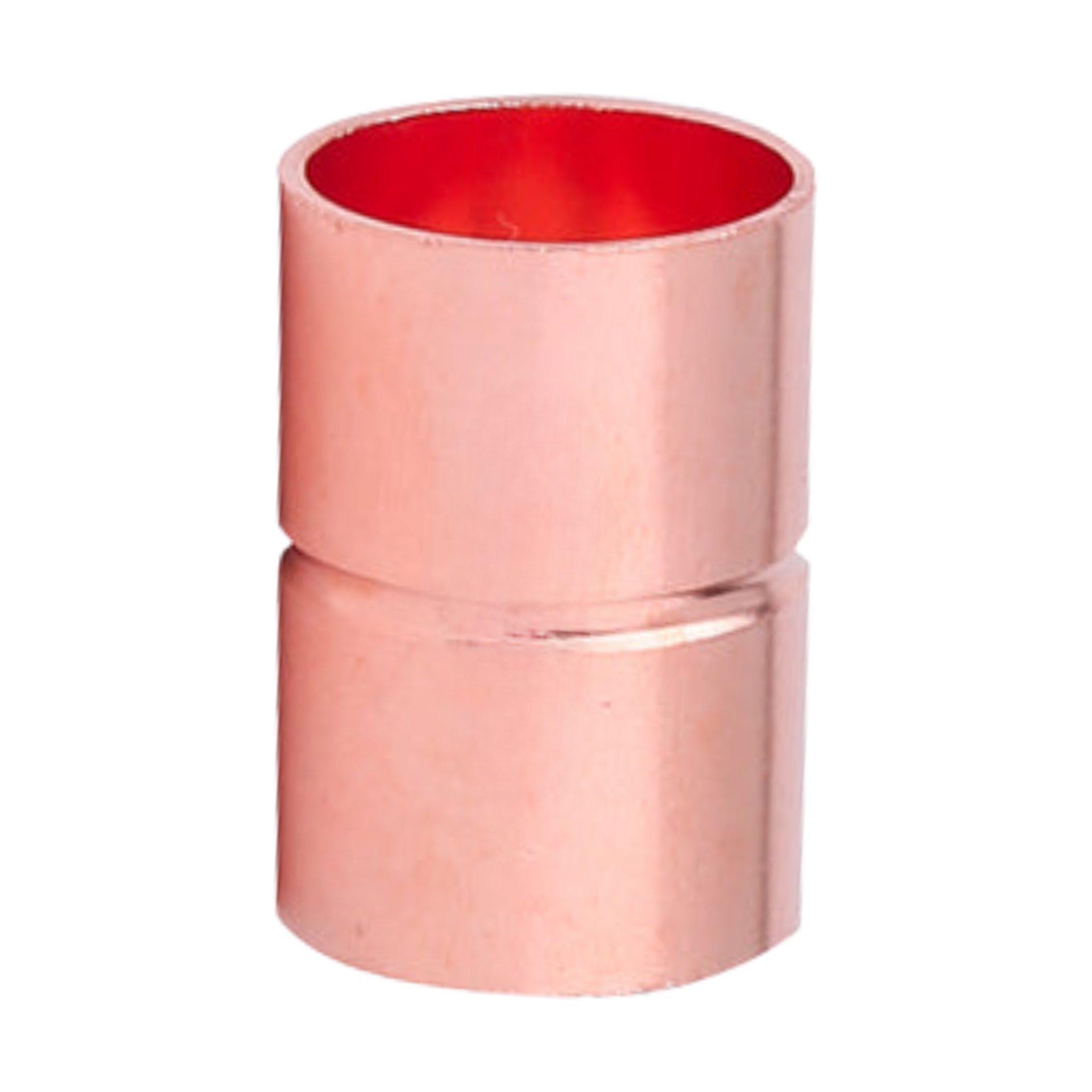

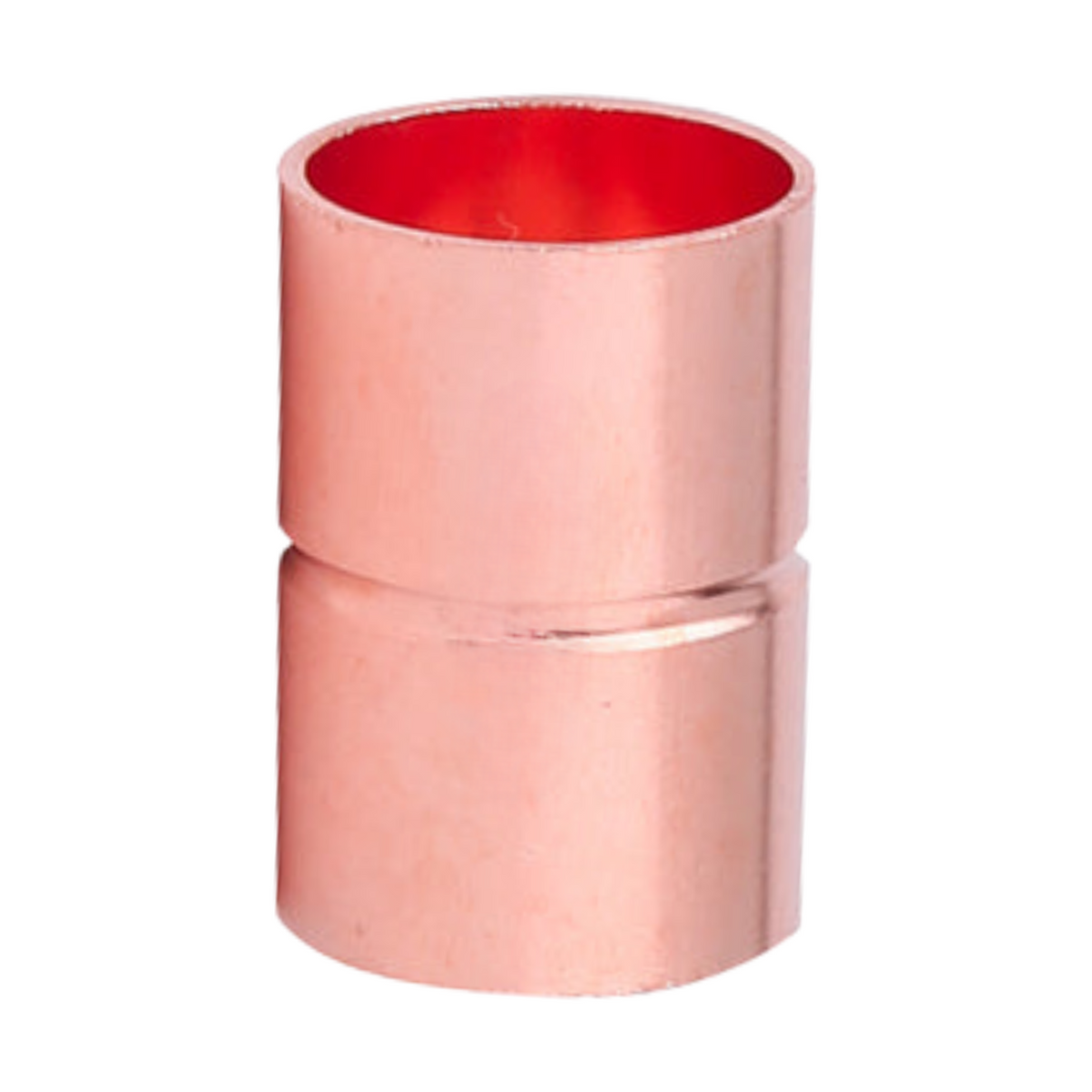

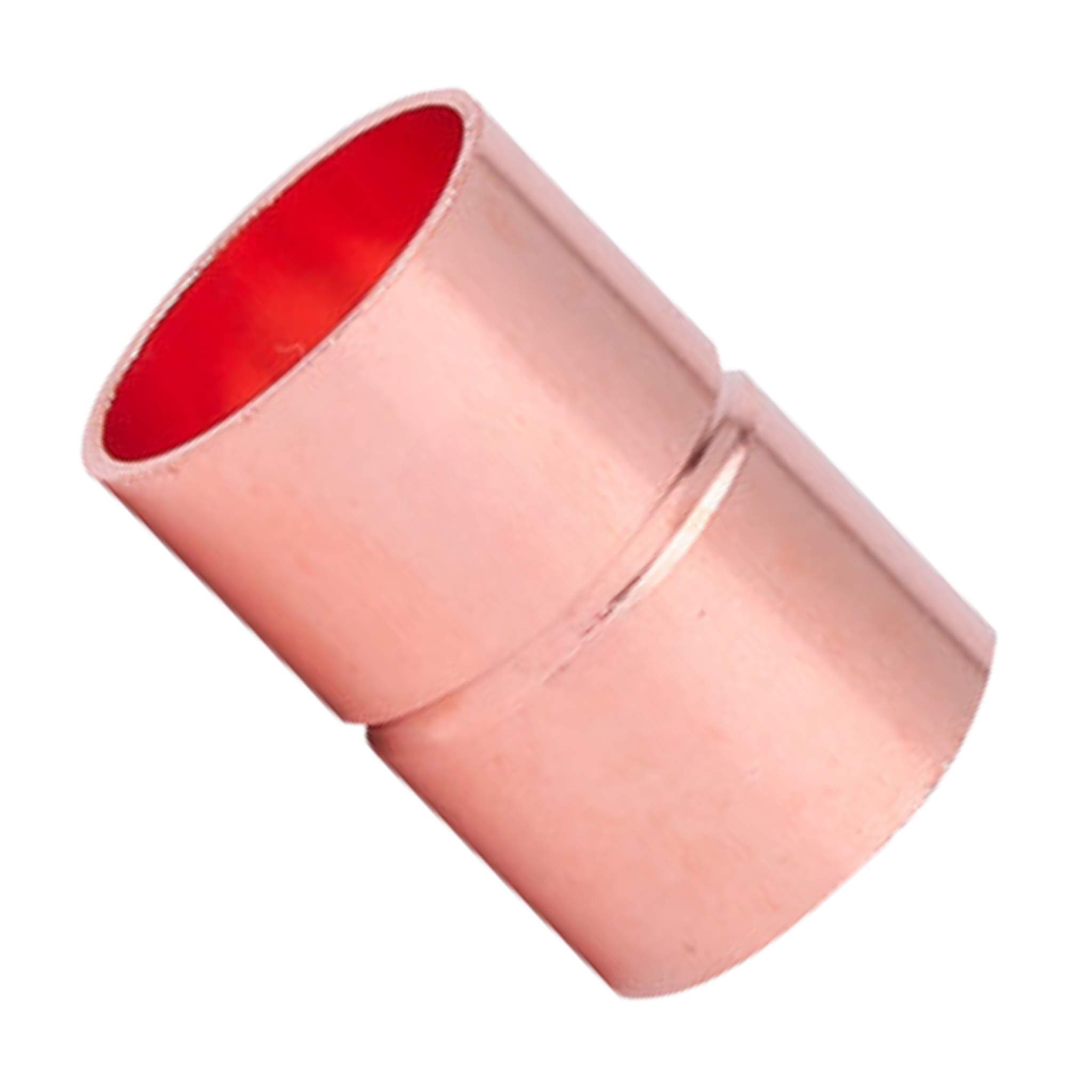

Copper Equal Coupling – High Pressure

The Copper Equal Coupling is a high-pressure fitting designed to join two copper pipes of the same diameter securely. Manufactured from premium-grade copper in compliance with AS 3688 and AS 1432, it ensures safety, strength, and long-term reliability in both domestic and commercial applications.

With WaterMark Licence WMK 26127 and compliance to AS/NZS 4020 (potable water safety), this coupling is suitable for drinking water, gas, and general plumbing systems.

When paired with Type B copper tube, the coupling achieves maximum performance and durability, handling working pressures of:

2000kPa at 20°C

1400kPa at 95°C

The fitting requires silver brazing alloy in accordance with AS 1167.1 for secure installation.

Key Features:

• High-pressure equal copper coupling
• Joins two copper pipes of the same size
• WaterMark approved (WMK 26127)
• Manufactured to AS 3688 & AS 1432
• Suitable for potable water (AS/NZS 4020 compliant)
• Safe for gas and drinking water applications
• Strong, durable, and corrosion-resistant
• Requires brazing with silver solder (AS 1167.1)

Note: Installation into mains-connected systems must be carried out by a licensed plumber.

Available Variants

• Capillary Couplings (Small Sizes):
• FYL008 — 12mm Copper Straight Coupling
• FYL016 — 20mm Copper Straight Coupling
• FYL020 — 25mm Copper Straight Coupling

High Pressure Copper Sockets (Larger Sizes):

• FHC040 — 32mm Copper Socket
• FHC041 — 40mm Copper Socket
• FHC042 — 50mm Copper Socket
• FHC043 — 65mm Copper Socket
• FHC044 — 80mm Copper Socket
• FHC045 — 100mm Copper Socket
• FHC046 — 150mm Copper Socket
