Tube Bush Male

Brass Tube Bush Male

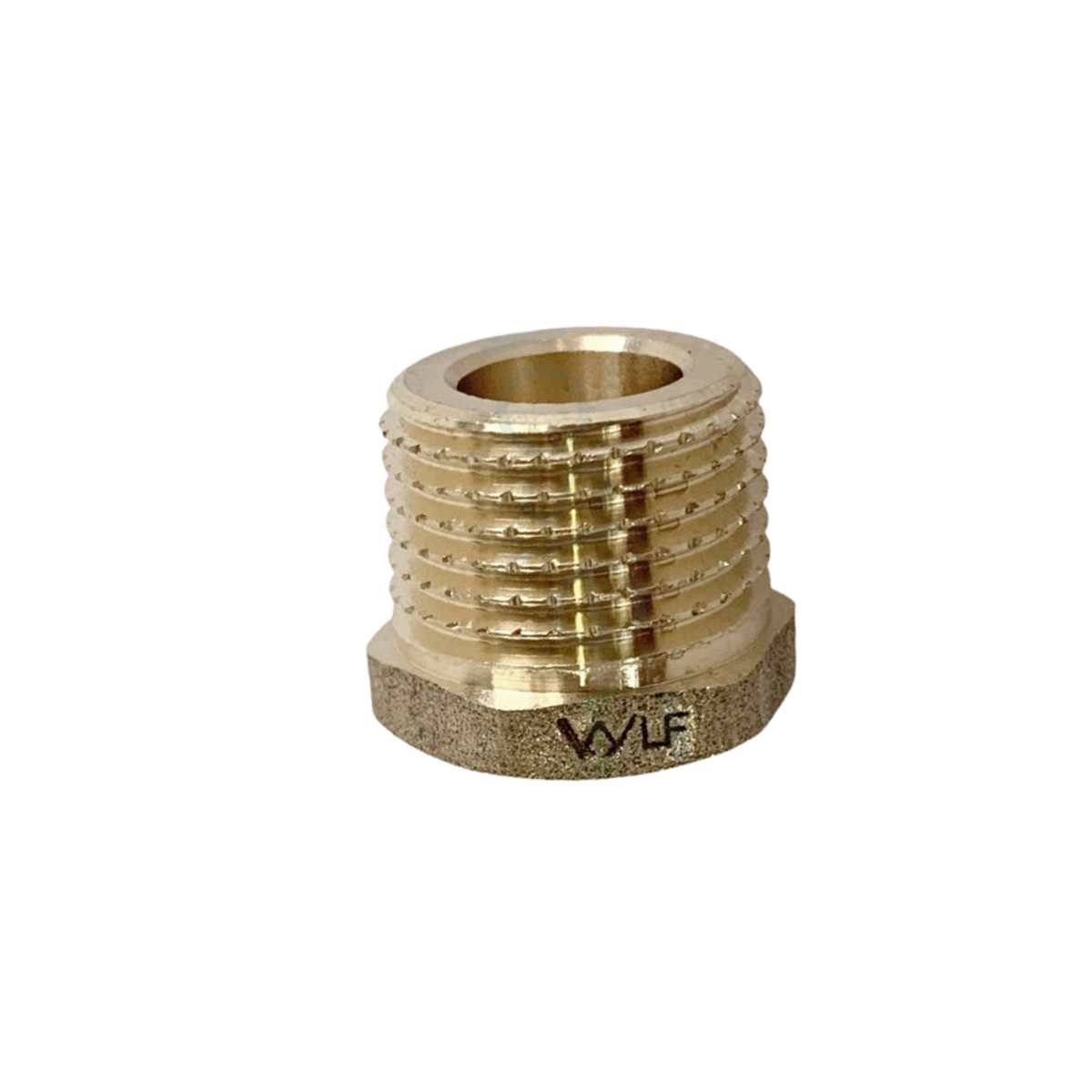

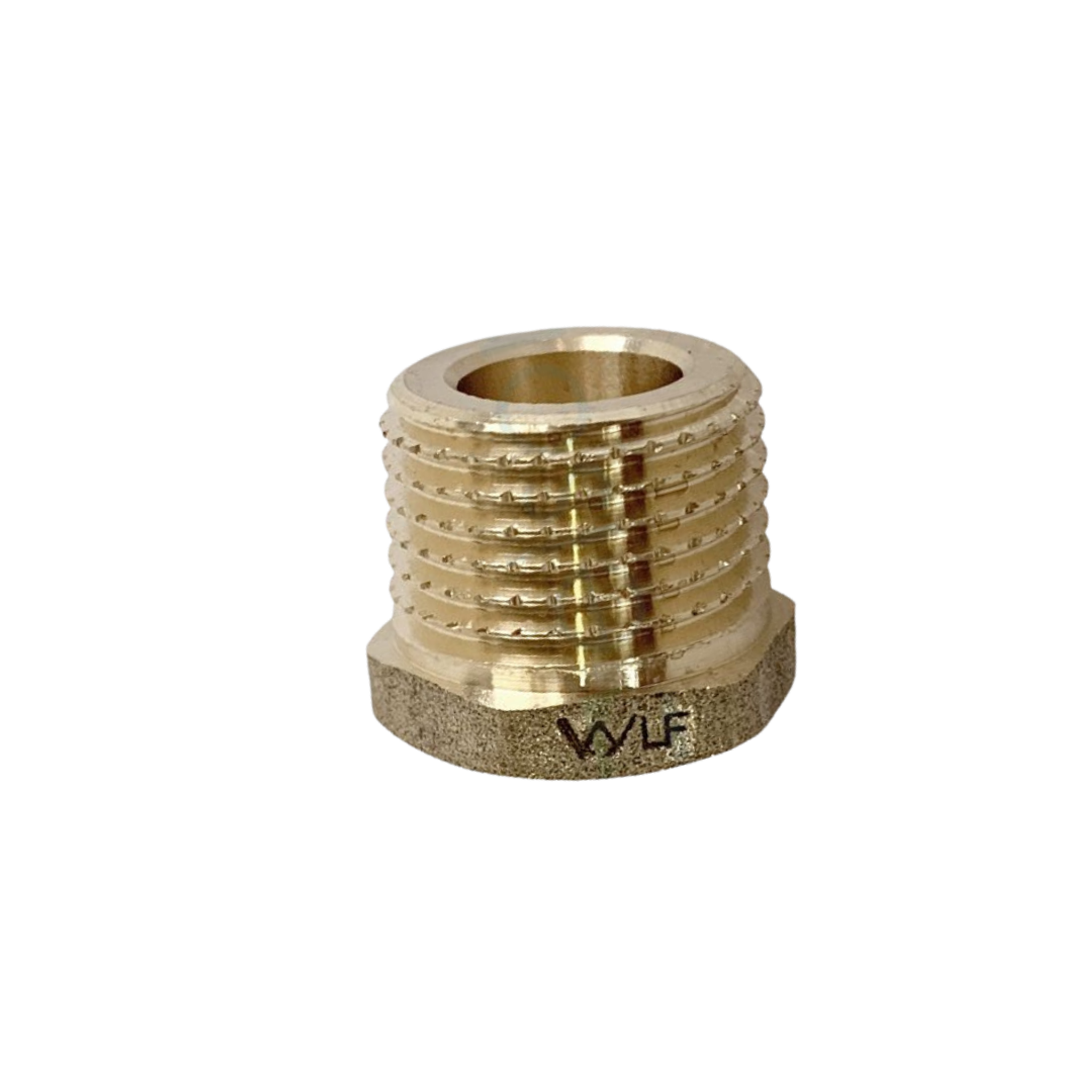

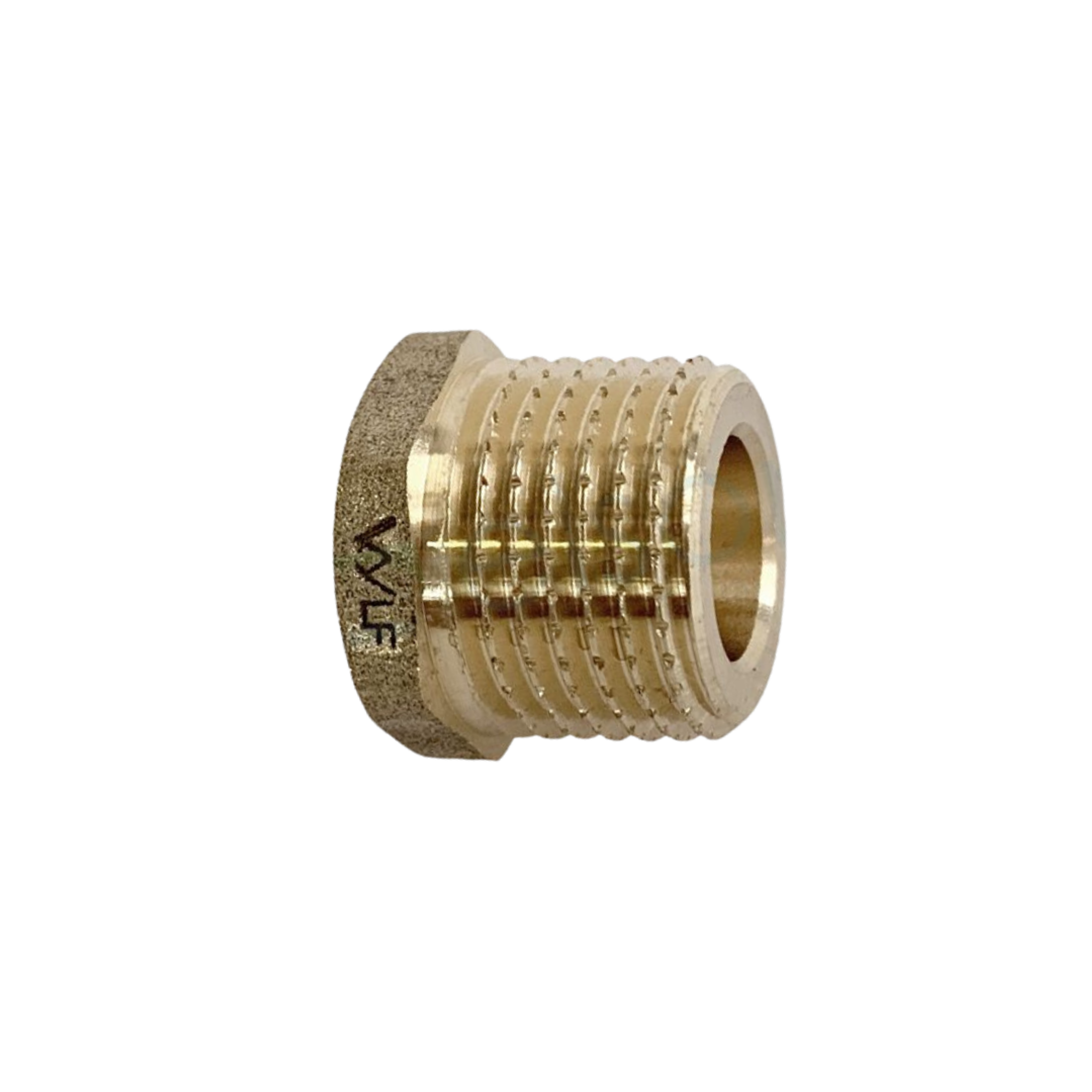

The Brass Tube Bush Male is a BSP fitting designed to connect copper tube to BSP threaded fittings. Using silver brazing alloy, the copper tube is brazed into the bush, which is then screwed into a female BSP fitting. This variety features a male BSP tapered thread and has no collar, making it a practical choice for copper-to-thread transitions.

Key Features:

• Material: Manufactured from DZR (dezincification-resistant) brass for durability in Australian conditions
• Thread Type: BSP tapered male thread for a secure and leak-free fit
• Applications: Connects copper tube to BSP female fittings using silver brazing alloy
• Strength & Durability: Excellent mechanical strength, corrosion resistance, and long service life
• Compliance: WaterMark approved and compliant with AS3688 standards
• Performance: Maximum working temperature of 60°C and maximum pressure rating of 2000 kPa
• Installation: Recommended to use Teflon tape and sealing paste (e.g. Mirror Paste) for a watertight seal

Why Choose Brass Tube Bush Male Fittings?

Screwed brass fittings are trusted for their durability, safety, and compliance with Australian Standards, making them suitable for both drinking water and gas installations. Made from DZR brass, these bushes resist dezincification and corrosion, ensuring longevity even in harsh environments. Many fittings are produced from recycled brass, with each batch tested for safety and strength.

Important: Installation must be completed by a licensed plumber when used in pipework connected to mains water or gas.

Available Sizes:

• FSB2001 — Brass Tube Bush Male 9mm MI x 9mm
• FSB2004 — Brass Tube Bush Male 12mm MI x 12mm (EQ)
• FSB2009 — Brass Tube Bush Male 20mm MI x 20mm (EQ)
• FSB2013 — Brass Tube Bush Male 25mm MI x 25mm (EQ)
• FSB2016 — Brass Tube Bush Male 32mm MI x 32mm (EQ)
• FSB2018 — Brass Tube Bush Male 40mm MI x 40mm (EQ)
• FSB2020 — Brass Tube Bush Male 50mm MI x 50mm (EQ)
• FSB2022 — Brass Tube Bush Male 65mm MI x 65mm (EQ)
• FSB2023 — Brass Tube Bush Male 75mm MI x 75mm (EQ)
• FSB2024 — Brass Tube Bush Male 100mm MI x 100mm (EQ)
